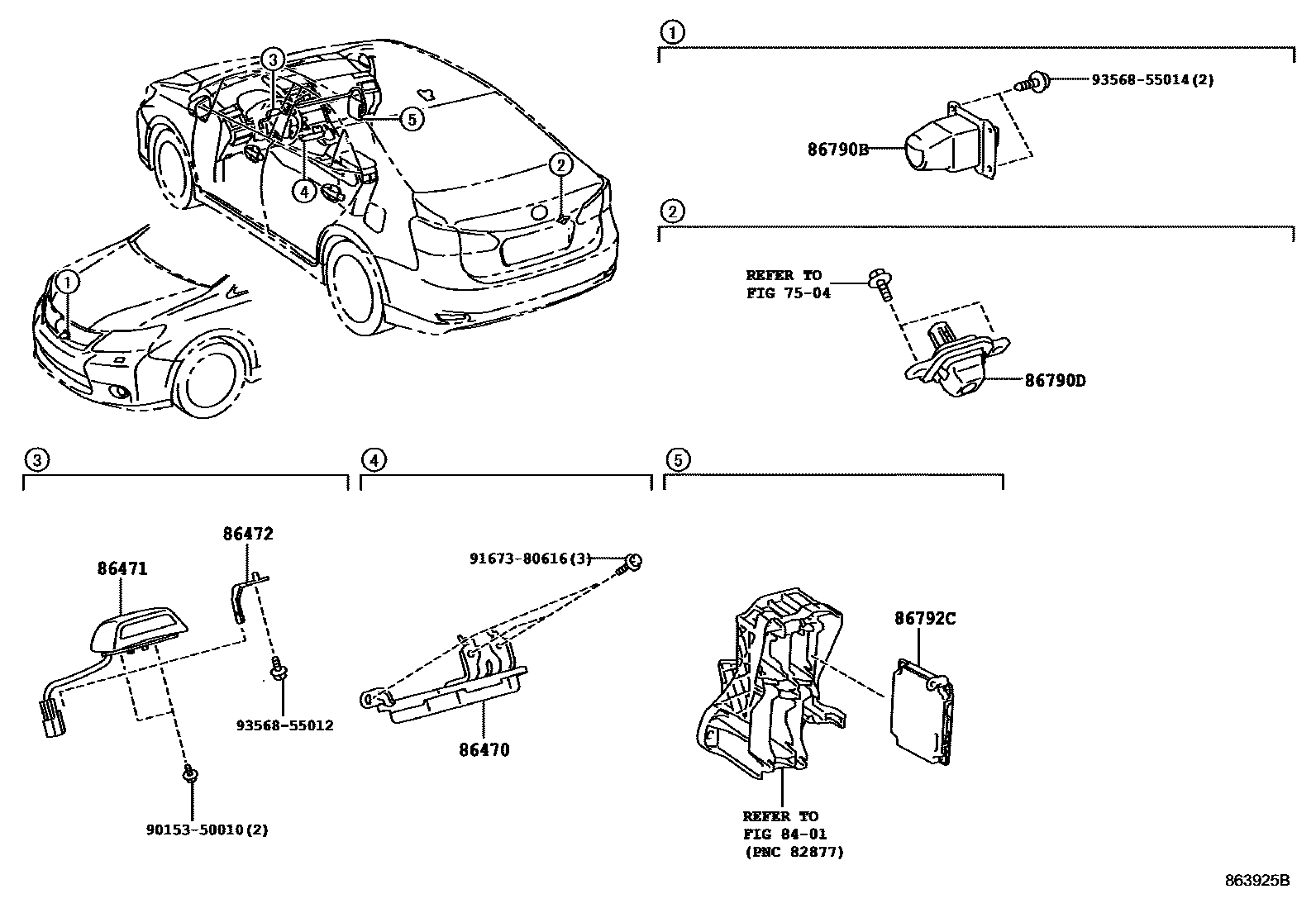

CAMERA & REAR MONITOR DISPLAY

7504

8401

86470COMPUTER ASSY, DRIVER MONITOR

main86470-75020iANF10..W200907-201201

PRE-COLLISION SYSTEM-WITH(*DMO & *PB)

86471CAMERA, DRIVER MONITOR

main86471-75010iANF10..W200907-201201

PRE-COLLISION SYSTEM-WITH(*DMO & *PB)

86472BRACKET, DRIVER MONITOR

main86472-50010iANF10..W200907-201201

PRE-COLLISION SYSTEM-WITH(*DMO & *PB)

86790BCAMERA ASSY, TELEVISION, FR

main86790-75020iANF10..W200907-201109

BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM)

main86790-75021iANF10..W201110-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM)

86790DCAMERA ASSY, TELEVISION, RR

main86790-75040iANF10..W200907-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH

86792CCOMPUTER, PARKING ASSIST

main86792-75030iANF10..W200907-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM)

9015350010

main90153-50010

9167380616

main91673-80616

9356855012

main93568-55012

9356855014

main93568-55014

12 parts on this diagram · 1 diagram in section
