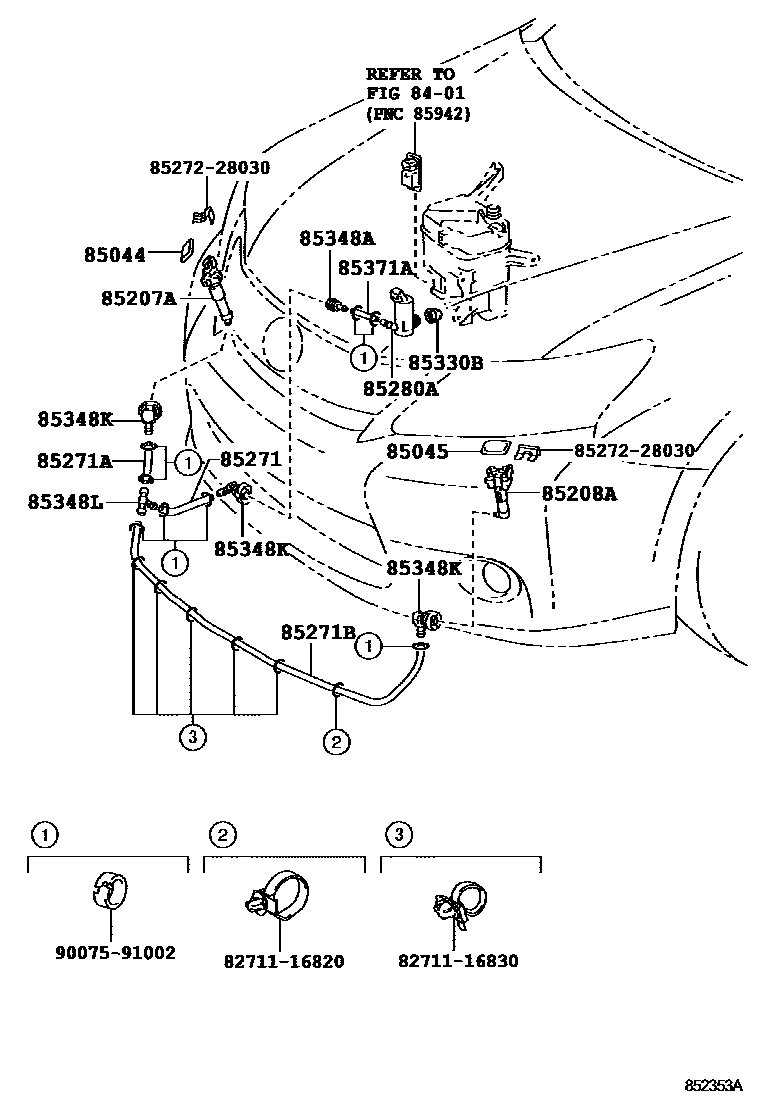

HEADLAMP CLEANER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH

main85044-75010-A0i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,WHITE PEARL CS.,077

main85044-75010-A1i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,QUARTZ WHITE CS.,078

main85044-75010-B0i200907-201109

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,DK.GRAY MC.,1G0

main85044-75010-B2i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,MOONLIGHT OPAL CS.,1H0

main85044-75010-B3i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,SILVER M.M.,1G1

main85044-75010-B4i201109-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,MERCURY GRAY MC.,1H9

main85044-75010-C0i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,BLACK,212

main85044-75010-C1i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,BLACK OPAL MC.,214

main85044-75010-D0i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,RED MC.CS.,3R1

main85044-75010-E0i200907-201009

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,BEIGE ME.,4T1

main85044-75010-E1i201009-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,SLEEK ECRU ME.,4U7

main85044-75010-J0i200907-201009

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,DK.BLUE MC. CC.,8U0

main85044-75010-J1i201009-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,LAPIS LAZULI MC.,8V3

85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH

main85045-75010-A0i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,WHITE PEARL CS.,077

main85045-75010-A1i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,QUARTZ WHITE CS.,078

main85045-75010-B0i200907-201109

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,DK.GRAY MC.,1G0

main85045-75010-B2i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,MOONLIGHT OPAL CS.,1H0

main85045-75010-B3i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,SILVER M.M.,1G1

main85045-75010-B4i201109-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,MERCURY GRAY MC.,1H9

main85045-75010-C0i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,BLACK,212

main85045-75010-C1i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,BLACK OPAL MC.,214

main85045-75010-D0i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,RED MC.CS.,3R1

main85045-75010-E0i200907-201009

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,BEIGE ME.,4T1

main85045-75010-E1i201009-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,SLEEK ECRU ME.,4U7

main85045-75010-J0i200907-201009

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,DK.BLUE MC. CC.,8U0

main85045-75010-J1i201009-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,LAPIS LAZULI MC.,8V3

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-75010i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-75010i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM

85271HOSE, HEADLAMP CLEANER, NO.1

main90075-15064i200907-201201

L=200,HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM

85271AHOSE, HEADLAMP CLEANER, NO.2

main90075-15070i200907-201201

L=140,HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM

85271BHOSE, HEADLAMP CLEANER, NO.3

main90075-15065i200907-201201

L=1450,HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-47010i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main90099-32089i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main90075-17002i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

main90075-17001×3i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM

85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2

main90075-17003i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main90075-15053i200907-201201

L=35,HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

8527228030CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-28030

9007591002

main90075-91002

18 parts on this diagram · 1 diagram in section
