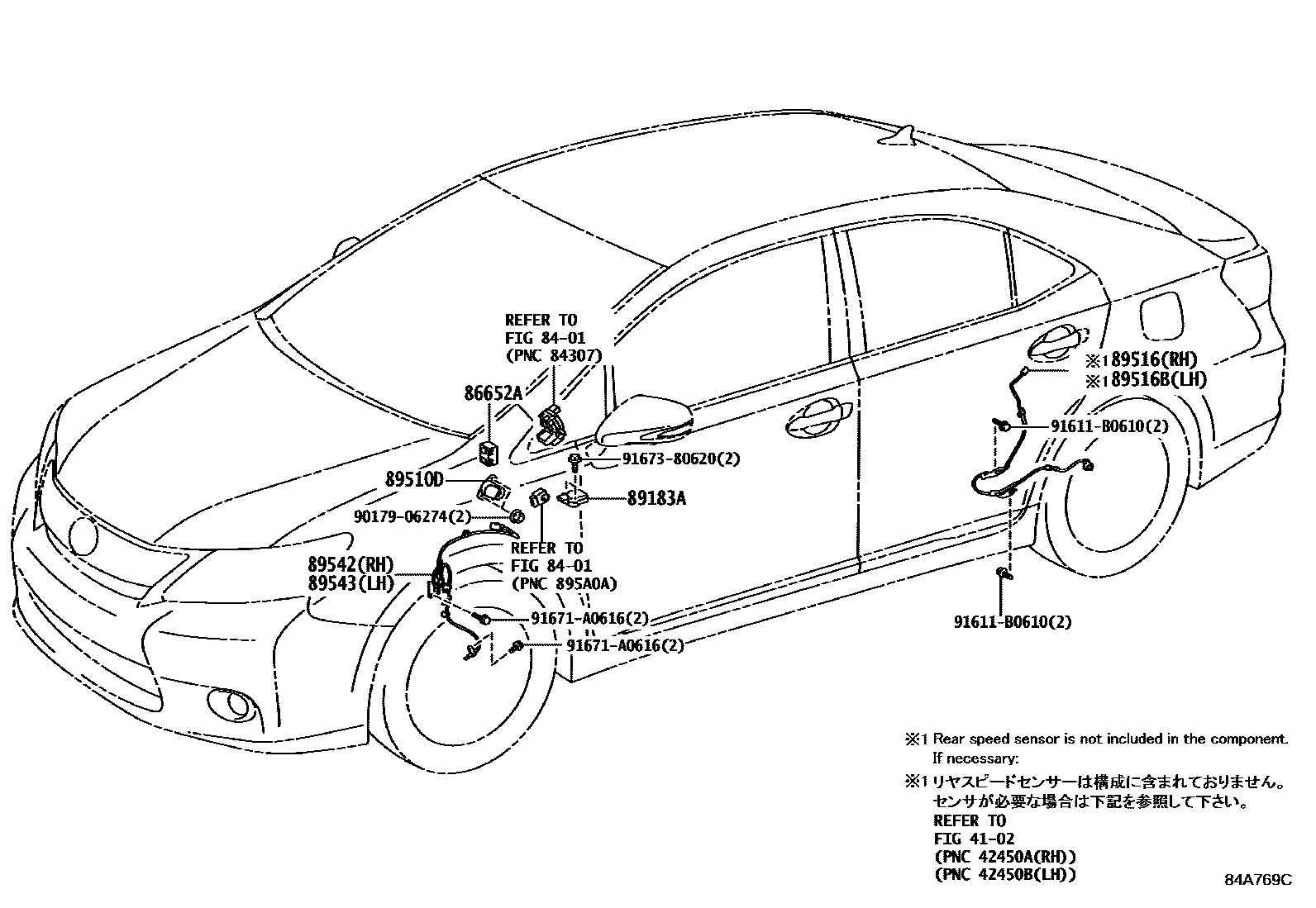

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iANF10200907-201110

89183ASENSOR, YAWRATE

main89183-48030iANF10200907-201201

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47010iANF10200907-201201

89516WIRE, SKID CONTROL SENSOR

main89516-12160iANF10200907-201201

89516BWIRE, SKID CONTROL SENSOR

main89516-12170iANF10200907-201201

89542SENSOR, SPEED, FRONT RH

main89542-12080iANF10200907-201201

89543SENSOR, SPEED, FRONT LH

main89543-12080iANF10200907-201201

9017906274

main90179-06274

91611B0610

main91611-B0610

91671A0616

main91671-A0616

9167380620

main91673-80620

13 parts on this diagram · 1 diagram in section
