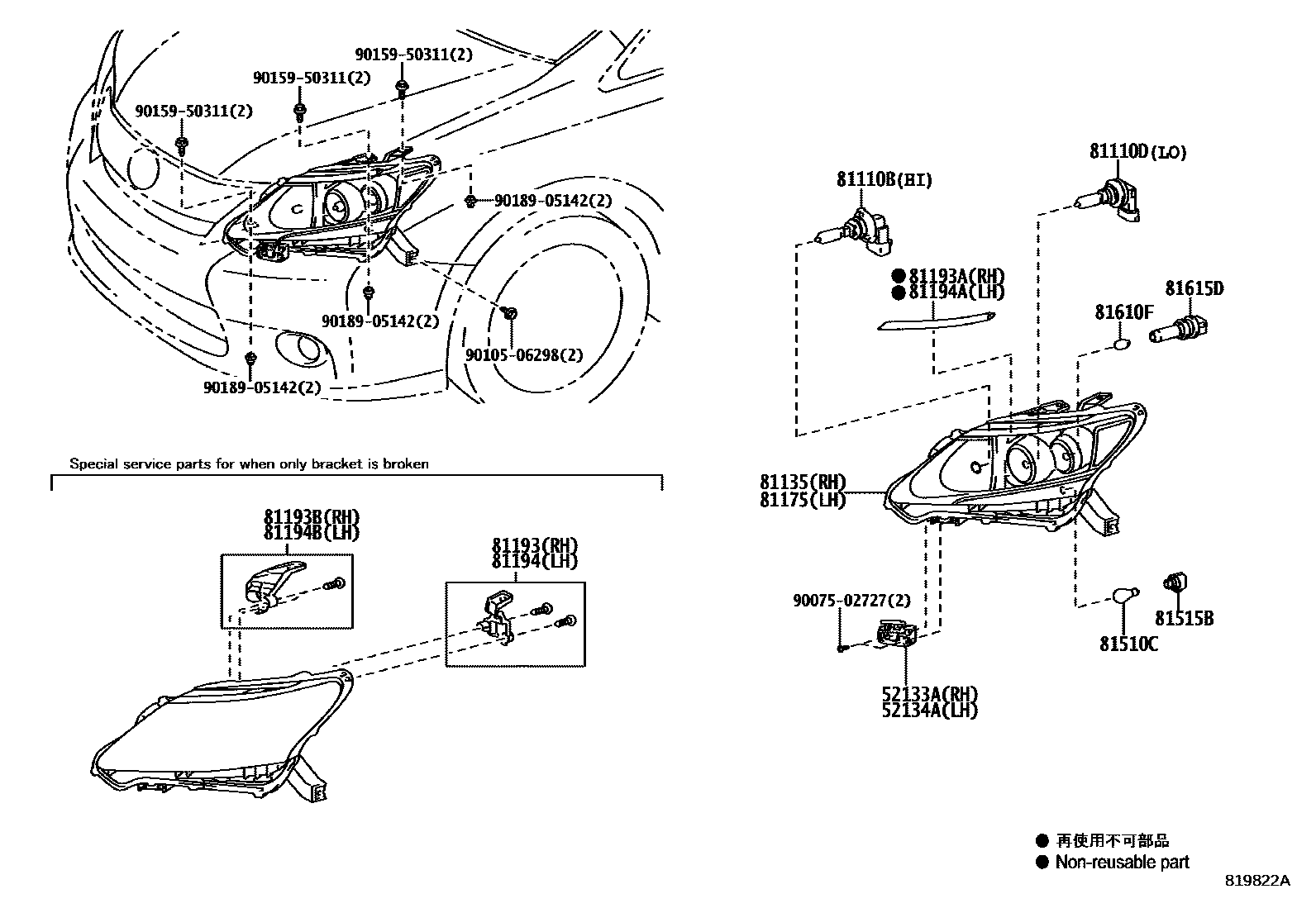

HEADLAMP

0001 1HALOGEN 0002 1LED

52133ABRACKET, FRONT BUMPER, RH

main52133-75020iANF10200907-201201

52134ABRACKET, FRONT BUMPER, LH

main52134-75020iANF10200907-201201

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iANF10200907-201201

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075×2iANF10200907-201201

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81145-75101supersedes 81130-75030iANF10200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM

81175UNIT ASSY, HEADLAMP, LH

main81185-75101supersedes 81170-75030iANF10200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-75090supersedes 81193-75070iANF10200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM

81193APROTECTOR, HEADLAMP, RH

main81193-75020iANF10200907-201201

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-75080iANF10200907-201201

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-75090supersedes 81194-75070iANF10200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM

81194APROTECTOR, HEADLAMP, LH

main81194-75020iANF10200907-201201

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-75080iANF10200907-201201

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-AF004×2iANF10200907-201201

12V 30/8W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60060×2iANF10200907-201201

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iANF10200907-201201

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077×2iANF10200907-201201

9007502727

main90075-02727

9010506298

main90105-06298

9015950311

main90159-50311

9018905142

main90189-05142

20 parts on this diagram · 2 diagrams in section
