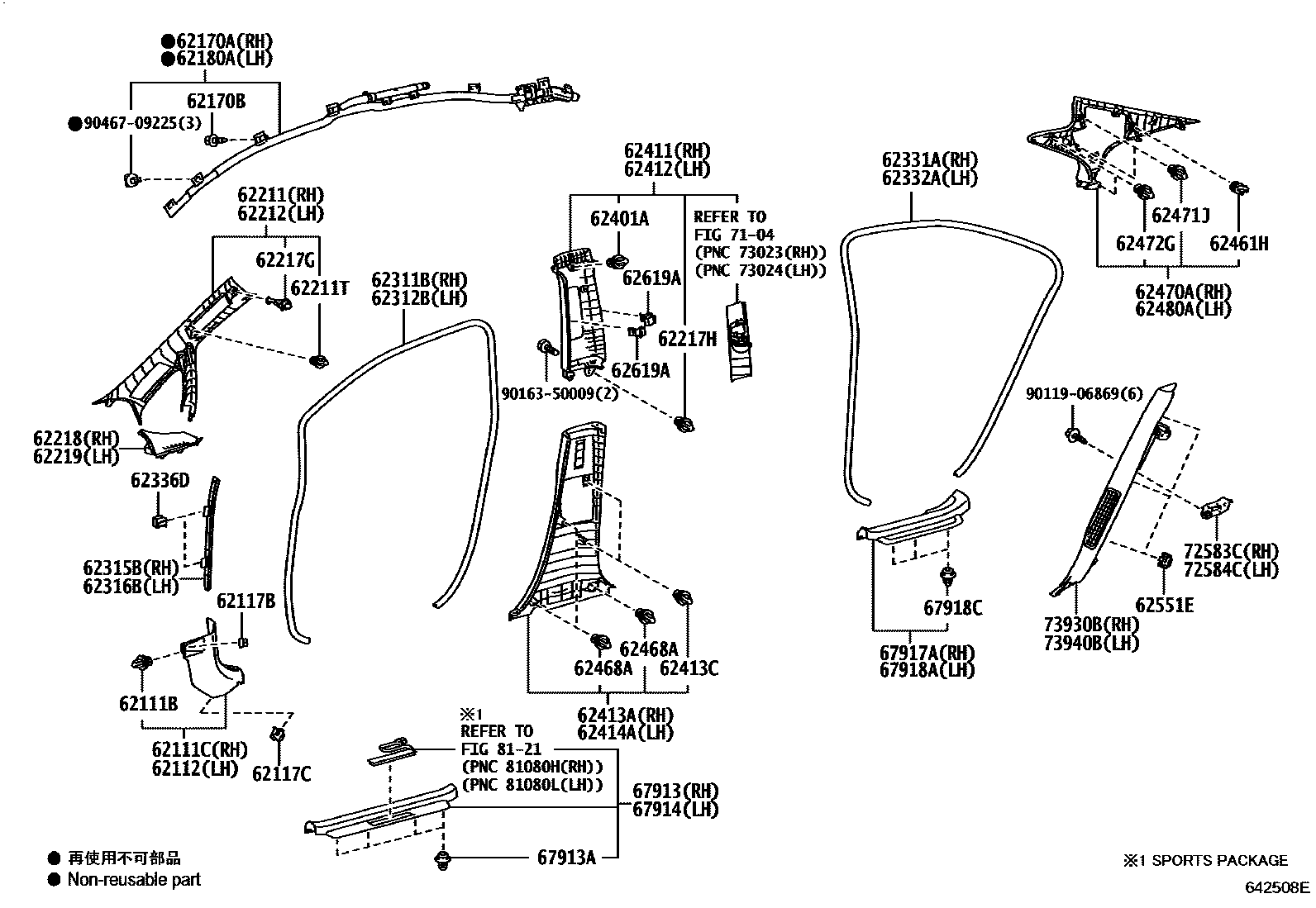

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161×2iANF10200907-201201

62111CBOARD, COWL SIDE TRIM, RH

main62111-75010-C0iANF10200907-201201

BLACK,TRIM06,2#

main62111-75010-E0iANF10200907-201201

DK. BROWN,TRIM05,06

62112BOARD, COWL SIDE TRIM, LH

main62112-75020-C0iANF10200907-201201

BLACK,TRIM06,2#

main62112-75020-E0iANF10200907-201201

DK. BROWN,TRIM05,06

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06193-C0×2iANF10200907-201201

BLACK

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main62566-30010×2iANF10200907-201201

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-75010iANF10200907-201201

62170BBOLT, W/WASHER

main90119-06869×12iANF10200907-201010

main90159-06001×12iANF10201010-201201

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-75010iANF10200907-201201

62211GARNISH, FRONT PILLAR, RH

main62210-75020-A3iANF10200907-201201

IVORY,TRIM05

main62210-75020-A4iANF10200907-201201

WATER WHITE,TRIM06,2#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161×2iANF10200907-201201

62212GARNISH, FRONT PILLAR, LH

main62220-75020-A3iANF10200907-201201

IVORY,TRIM05

main62220-75020-A4iANF10200907-201201

WATER WHITE,TRIM06,2#

62217GCLIP, FRONT PILLAR GARNISH

main90950-08004×2iANF10200907-201201

62217HCLIP, CENTER PILLER GARNISH

main90467-10161×2iANF10200907-201201

62218PIECE, FRONT PILLAR GARNISH CORNER, RH

main62218-75020-C0iANF10200907-201201

BLACK,TRIM06,2#

main62218-75020-E0iANF10200907-201201

DK. BROWN,TRIM05,06

62219PIECE, FRONT PILLAR GARNISH CORNER, LH

main62219-75020-C0iANF10200907-201201

BLACK,TRIM06,2#

main62219-75020-E0iANF10200907-201201

DK. BROWN,TRIM05,06

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-75010iANF10200907-201201

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-75010iANF10200907-201201

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-75010-C0iANF10200907-201201

BLACK,TRIM06,2#

main62315-75010-E0iANF10200907-201201

DK. BROWN,TRIM05,06

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-75010-C0iANF10200907-201201

BLACK,TRIM06,2#

main62316-75010-E0iANF10200907-201201

DK. BROWN,TRIM05,06

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-75010iANF10200907-201201

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-75010iANF10200907-201201

62336DCLAMP

main62566-30010×4iANF10200907-201201

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main62707-48010×2iANF10200907-201201

62411GARNISH, CENTER PILLAR, RH

main62410-75020-A0iANF10200907-201201

IVORY,TRIM05

main62410-75020-A1iANF10200907-201201

WATER WHITE,TRIM06,2#

62412GARNISH, CENTER PILLAR, LH

main62420-75020-A0iANF10200907-201201

IVORY,TRIM05

main62420-75020-A1iANF10200907-201201

WATER WHITE,TRIM06,2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-75020-C0iANF10200907-201201

BLACK,TRIM06,2#

main62413-75020-E0iANF10200907-201201

DK. BROWN,TRIM05,06

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161×4iANF10200907-201201

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-75020-C0iANF10200907-201201

BLACK,TRIM06,2#

main62414-75020-E0iANF10200907-201201

DK. BROWN,TRIM05,06

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-09212×2iANF10200907-201201

62468ACLIP (FOR CENTER PILLAR REAR GARNISH)

main90467-10167×6iANF10200907-201201

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-75020-A3iANF10200907-201201

IVORY,TRIM05

main62470-75020-A4iANF10200907-201201

WATER WHITE,TRIM06,2#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161×4iANF10200907-201201

62472GCLIP (FOR ROOF SIDE GARNISH)

main63395-12150×4iANF10200907-201201

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-75020-A3iANF10200907-201201

IVORY,TRIM05

main62480-75020-A4iANF10200907-201201

WATER WHITE,TRIM06,2#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main62566-30010×6iANF10200907-201201

62619APLATE, SIDE TRIM SET

main62619-30030×4iANF10200907-201201

67913PLATE, FRONT DOOR SCUFF, RH

main67913-75010-C0iANF10200907-201201

BLACK,TRIM06,2#

main67913-75010-E0iANF10200907-201201

DK. BROWN,TRIM05,06

main67910-75020-C0iANF10..V200907-201201

TOURING PACKAGE,BLACK,TRIM2#

main67910-75020-E0iANF10..V200907-201201

TOURING PACKAGE,DK. BROWN,TRIM0#

67913ACLIP(FOR SCUFF PLATE)

main90467-10162×8iANF10200907-201201

67914PLATE, FRONT DOOR SCUFF, LH

main67914-75010-C0iANF10200907-201201

BLACK,TRIM06,2#

main67914-75010-E0iANF10200907-201201

DK. BROWN,TRIM05,06

main67920-75020-C0iANF10..V200907-201201

TOURING PACKAGE,BLACK,TRIM2#

main67920-75020-E0iANF10..V200907-201201

TOURING PACKAGE,DK. BROWN,TRIM0#

67917APLATE, REAR DOOR SCUFF, RH

main67917-75010-C0iANF10200907-201201

BLACK,TRIM06,2#

main67917-75010-E0iANF10200907-201201

DK. BROWN,TRIM05,06

main67930-75010-C0iANF10..V200907-201201

TOURING PACKAGE,BLACK,TRIM2#

main67930-75010-E0iANF10..V200907-201201

TOURING PACKAGE,DK. BROWN,TRIM0#

67918APLATE, REAR DOOR SCUFF, LH

main67918-75010-C0iANF10200907-201201

BLACK,TRIM06,2#

main67918-75010-E0iANF10200907-201201

DK. BROWN,TRIM05,06

main67940-75010-C0iANF10..V200907-201201

TOURING PACKAGE,BLACK,TRIM2#

main67940-75010-E0iANF10..V200907-201201

TOURING PACKAGE,DK. BROWN,TRIM0#

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-10162×6iANF10200907-201201

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

72583CBRACKET, REAR SEAT SIDE GARNISH, NO.1 RH

main72583-75010iANF10200907-201201

72584CBRACKET, REAR SEAT SIDE GARNISH, NO.1 LH

main72583-75010iANF10200907-201201

73930BAIRBAG, REAR SEAT, RH

main73930-75010-C0iANF10200907-201201

BLACK,TRIM06,2#

main73930-75010-E0iANF10200907-201201

DK. BROWN,TRIM05,06

73940BAIRBAG, REAR SEAT, LH

main73940-75010-C0iANF10200907-201201

BLACK,TRIM06,2#

main73940-75010-E0iANF10200907-201201

DK. BROWN,TRIM05,06

8121INTERIOR LAMP

→ Go to FIG 81-21

9011906869

main90119-06869

9016350009

main90163-50009

9046709225

main90467-09225

51 parts on this diagram · 1 diagram in section
