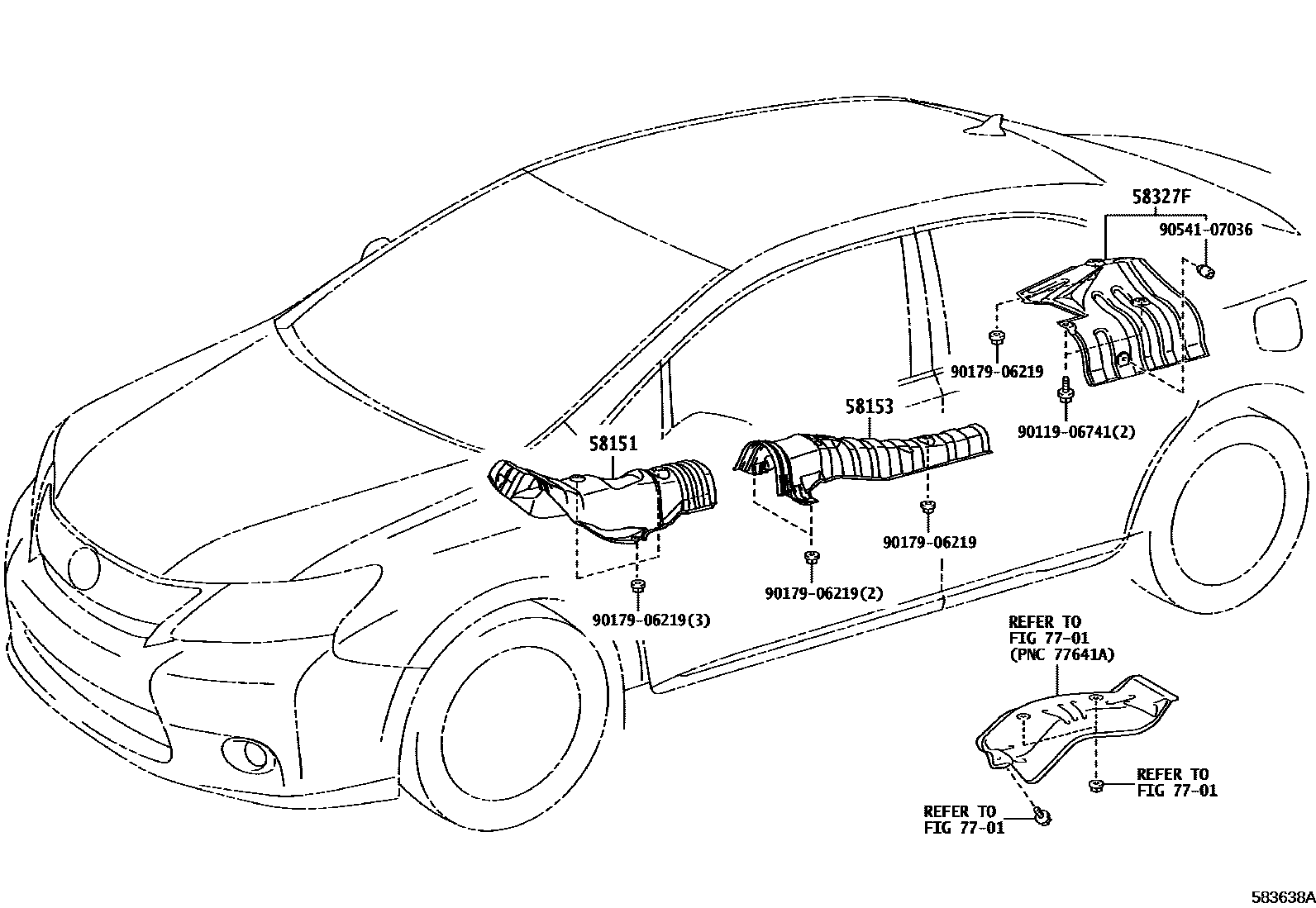

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-47040iANF10200907-201201

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-47030iANF10200907-201201

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-72011iANF10200907-201201

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011906741

main90119-06741

9017906219

main90179-06219

9054107036

main90541-07036

7 parts on this diagram · 1 diagram in section
