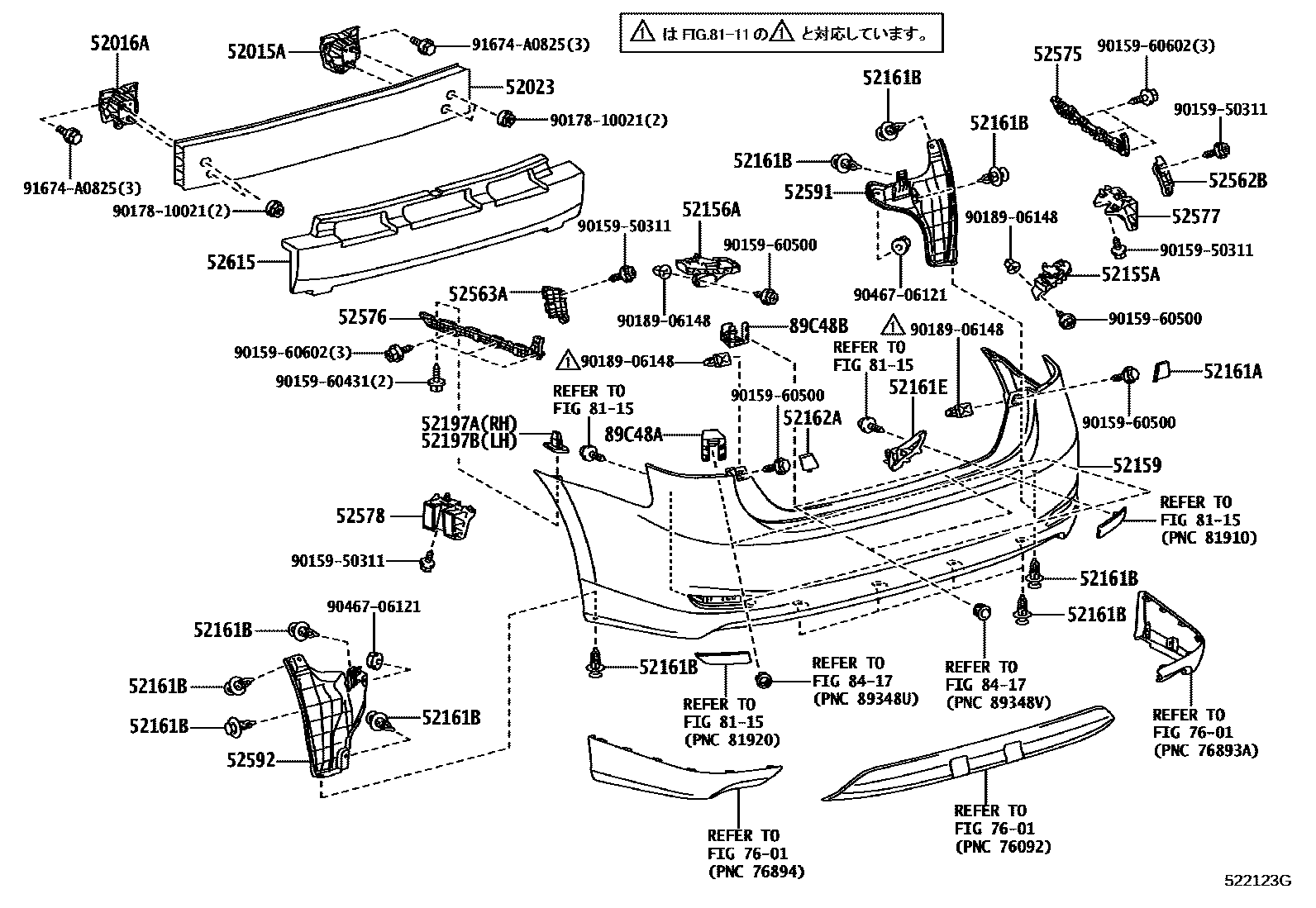

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-75020iANF10200907-201201

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-75020iANF10200907-201201

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-75010iANF10200907-201201

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-75020iANF10200907-201201

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-75020iANF10200907-201201

52159COVER, REAR BUMPER

main52159-75900iANF10200907-201001

PAINT REQ.

main52159-75902iANF10201001-201201

PAINT REQ.

main52159-75901iANF10..W200907-201001

PAINT REQ.,BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM)

main52159-75903iANF10..W201001-201201

PAINT REQ.,BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM)

52161APIECE, REAR BUMPER, RH

main52161-75902iANF10200907-201201

52161BPIECE, REAR BUMPER

main52161-16010×14iANF10200907-201201

52161EEXTENSION, REAR BUMPER SIDE, RH

main52165-75020iANF10200907-201201

52162APIECE, REAR BUMPER, LH

main52162-75902iANF10..W200907-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM)

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-22020iANF10200907-201201

52197BBRACKET, REAR BUMPER SEAL, LH

main52197-22020iANF10200907-201201

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-75010iANF10200907-201201

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-75010iANF10200907-201201

52575RETAINER, REAR BUMPER SIDE, RH

main52575-75010iANF10200907-201201

52576RETAINER, REAR BUMPER SIDE, LH

main52576-75010iANF10200907-201201

52577RETAINER, REAR BUMPER SIDE, NO.2 RH

main52577-75010iANF10200907-201201

52578RETAINER, REAR BUMPER SIDE, NO.2 LH

main52578-75010iANF10200907-201201

52591SEAL, REAR BUMPER SIDE, RH

main52591-75020iANF10200907-200912

main52591-75021iANF10200912-201109

main52591-75022iANF10201110-201201

52592SEAL, REAR BUMPER SIDE, LH

main52592-75020iANF10200907-200912

main52592-75021iANF10200912-201201

52615ABSORBER, REAR BUMPER ENERGY

main52615-75010iANF10200907-201201

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-75010×2iANF10..W200907-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM)

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-75010×2iANF10..W200907-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM)

9015950311

main90159-50311

9015960431

main90159-60431

9015960500

main90159-60500

9015960602

main90159-60602

9017810021

main90178-10021

9018906148

main90189-06148

9046706121

main90467-06121

91674A0825

main91674-A0825

34 parts on this diagram · 1 diagram in section
