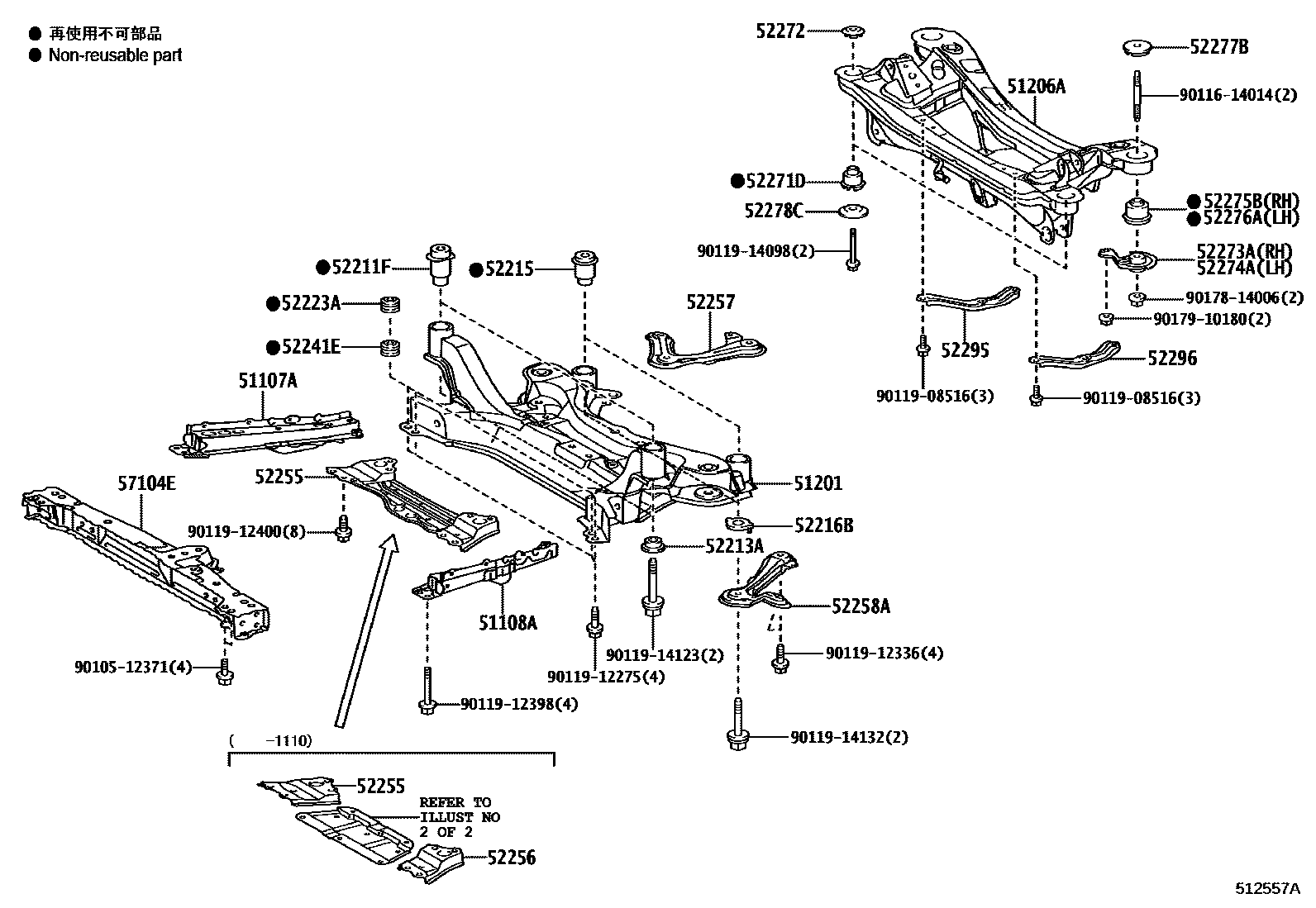

SUSPENSION CROSSMEMBER & UNDER COVER
51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH
51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH
51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51206AMEMBER SUB-ASSY, REAR SUSPENSION
52211FCUSHION, BODY MOUNTING, FRONT UPPER
52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52223ASPACER, CAB REAR MOUNTING, LOWER
52241ECUSHION, CAB REAR MOUNTING
52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH
52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH
52257BRACE, FRONT SUSPENSION MEMBER, REAR RH
52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH
52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52272STOPPER, REAR SUSPENSION MEMBER, UPPER
52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH
52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH
52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH
52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH
52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52295BRACE, REAR SUSPENSION MEMBER, RH
52296BRACE, REAR SUSPENSION MEMBER, LH
57104EMEMBER SUB-ASSY, FRONT CROSS
9010512371
main90105-12371
9011614014
main90116-14014
9011908516
main90119-08516
9011912275
main90119-12275
9011912336
main90119-12336
9011912398
main90119-12398
9011912400
main90119-12400
9011914098
main90119-14098
9011914123
main90119-14123
9011914132
main90119-14132
9017814006
main90178-14006
9017910180
main90179-10180
37 parts on this diagram · 2 diagrams in section
