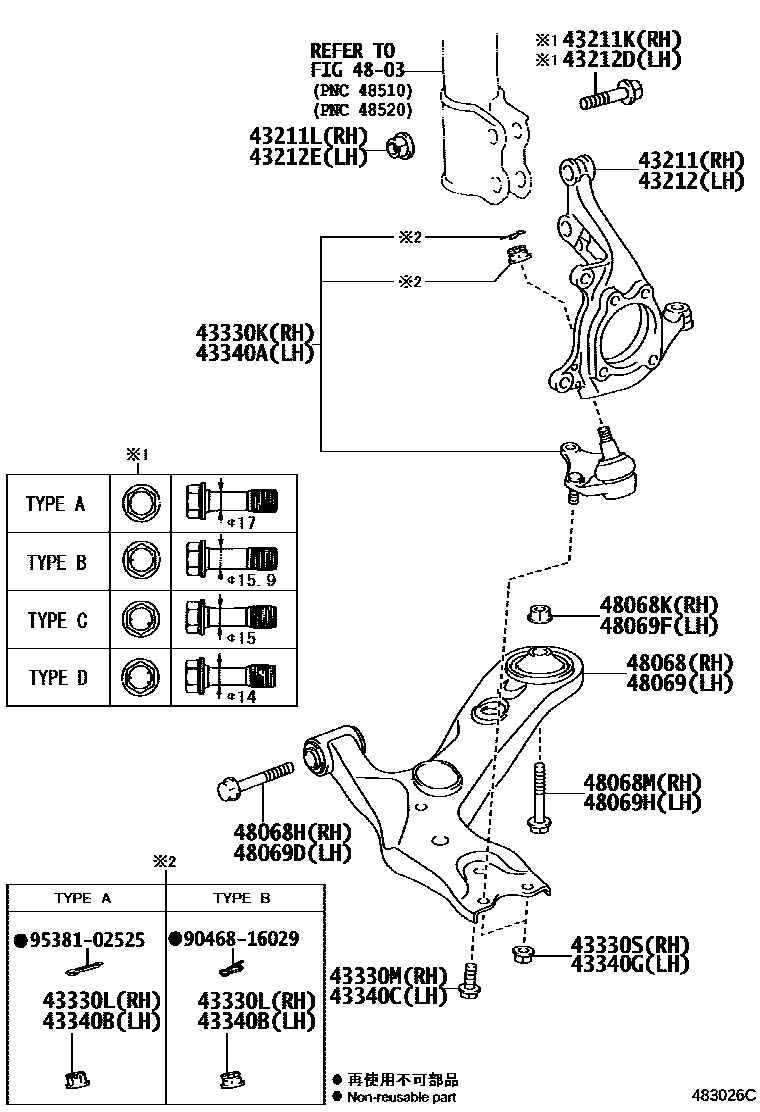

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-42080iANF10200907-201201

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17008×2iANF10200907-201001

OD=17,TYPE A:REFER ILLUST.

main90105-17009iANF10200907-201201

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010iANF10200907-201201

OD=15,TYPE C:REFER ILLUST.

main90105-17011iANF10200907-201201

OD=14,TYPE D:REFER ILLUST.

main90105-17012×2iANF10201001-201201

OD=17,TYPE A:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002×2iANF10200907-201201

43212KNUCKLE, STEERING, LH

main43212-42080iANF10200907-201201

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17008×2iANF10200907-201001

OD=17

main90105-17009iANF10200907-201201

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010iANF10200907-201201

OD=15,TYPE C:REFER ILLUST.

main90105-17011iANF10200907-201201

OD=14,TYPE D:REFER ILLUST.

main90105-17012×2iANF10201001-201201

OD=17

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002×2iANF10200907-201201

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-49195iANF10200907-201201

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iANF10200907-201201

TYPE A

main90171-14011iANF10200907-201201

TYPE B

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12346iANF10200907-201201

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019×2iANF10200907-201201

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-49195iANF10200907-201201

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iANF10200907-201201

TYPE A

main90171-14011iANF10200907-201201

TYPE B

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12346iANF10200907-201201

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019×2iANF10200907-201201

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-12300iANF10200907-201201

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main91554-L1690iANF10200907-201201

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90178-16006iANF10200907-201201

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main91554-L1690iANF10200907-201201

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-12300iANF10200907-201201

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main91554-L1690iANF10200907-201201

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90178-16006iANF10200907-201201

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main91554-L1690iANF10200907-201201

9046816029

main90468-16029

9538102525

main95381-02525

25 parts on this diagram · 1 diagram in section
