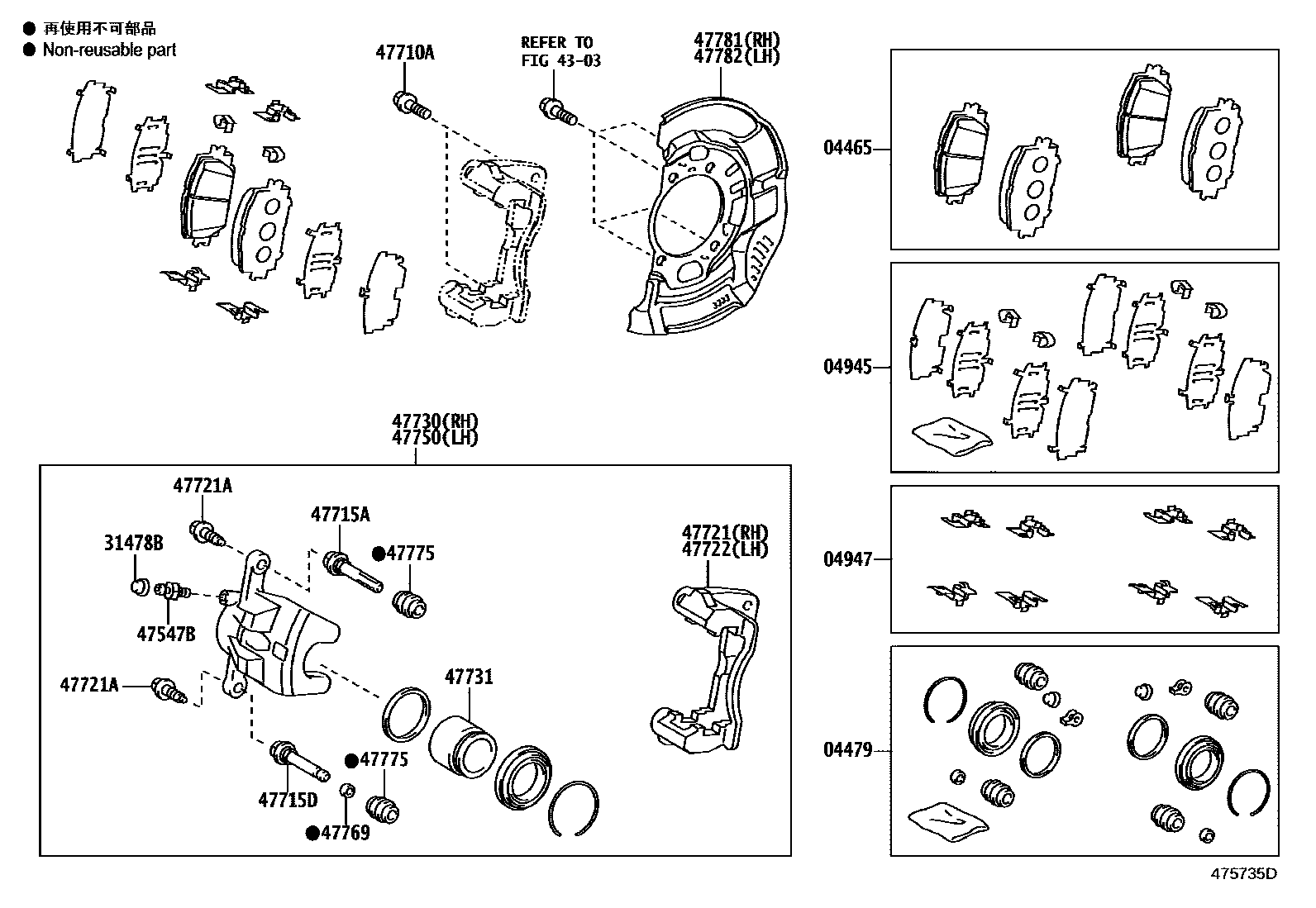

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-42160iANF10200907-201201

MARK ADVICS PV565H

sub04465-42200

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33100iANF10200907-201201

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-12110iANF10200907-201201

sub04945-12111

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iANF10200907-201201

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iANF10200907-201201

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iANF10200907-201201

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iANF10200907-201201

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iANF10200907-201201

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iANF10200907-201201

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12A70iANF10200907-201201

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iANF10200907-201201

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-12A70iANF10200907-201201

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12A70iANF10200907-201201

47731PISTON, FRONT DISC BRAKE

main47731-12A70iANF10200907-201201

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12A70iANF10200907-201201

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iANF10200907-201201

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-52190iANF10200907-201201

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42040iANF10200907-201201

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42040iANF10200907-201201

20 parts on this diagram · 1 diagram in section
