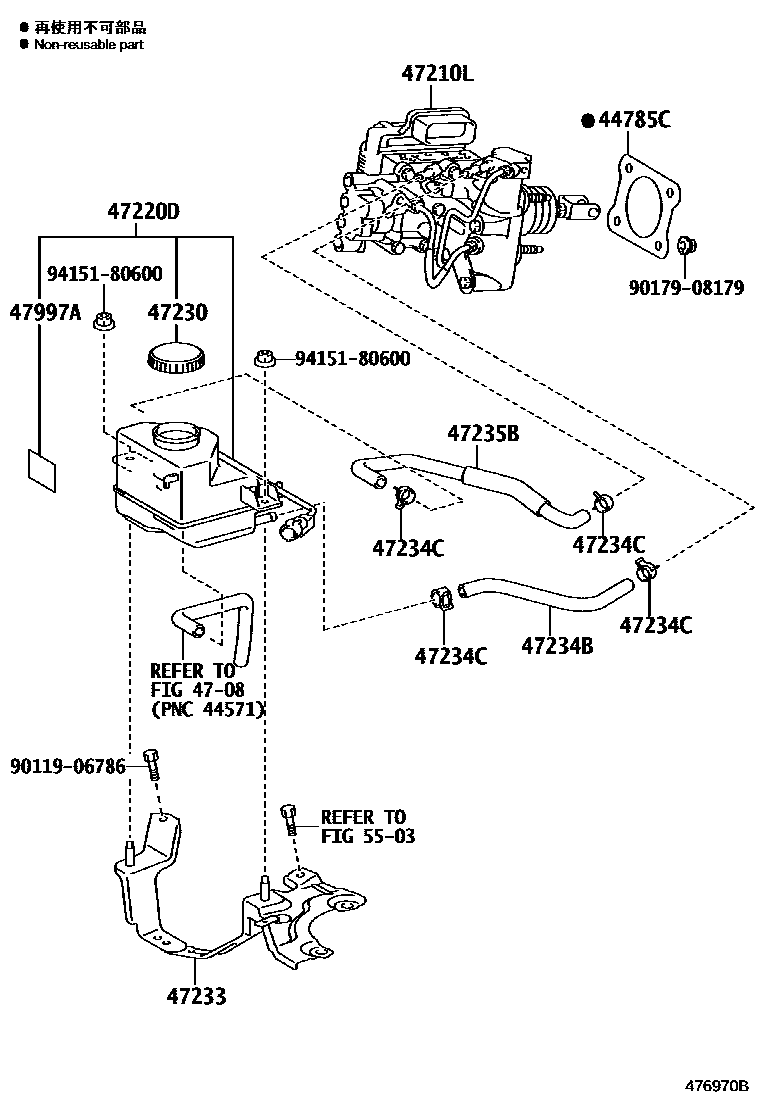

BRAKE MASTER CYLINDER

44785CGASKET, BRAKE BOOSTER

main44785-12040iANF10200907-201201

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-75030iANF10200907-201110

main47050-75031iANF10201110-201201

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-75020iANF10200907-201201

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-58010iANF10200907-201002

main47230-60210iANF10201002-201201

47233BRACKET, RESERVOIR

main47233-75020iANF10200907-201201

47234BTUBE, RESERVOIR, NO.1

main47234-75020iANF10200907-201201

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main96137-41501×4iANF10200907-201201

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-75020iANF10200907-201201

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-47020iANF10200907-201011

main47997-76010iANF10201012-201201

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

9011906786

main90119-06786

9017908179

main90179-08179

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
