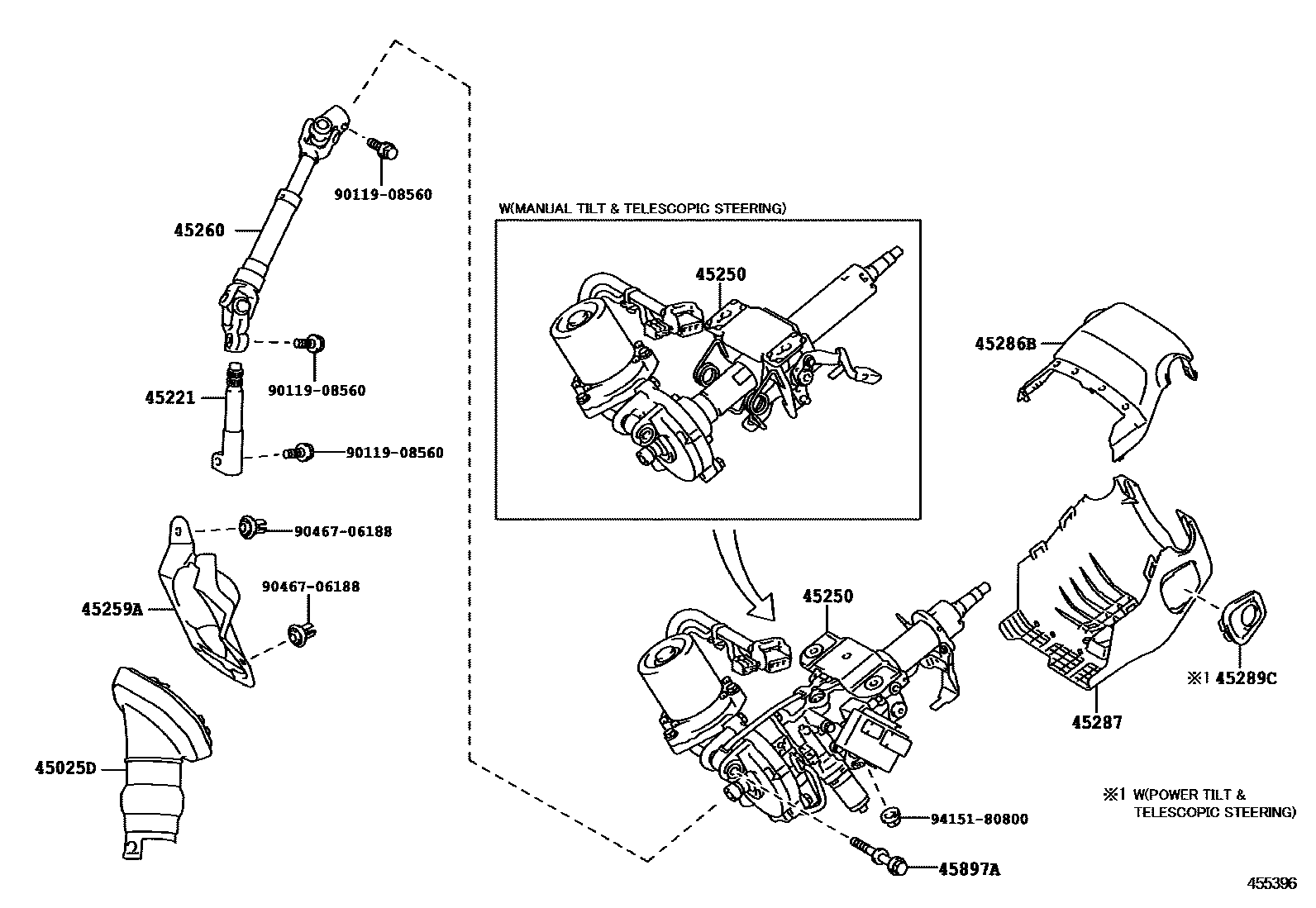

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-75010iANF10200907-201201

45221SHAFT, STEERING INTERMEDIATE

main45221-75010iANF10200907-201201

45250COLUMN ASSY, STEERING

main45250-75090iANF10..V200907-201109

main45250-75091iANF10..V201110-201201

main45250-75120iANF10..W200907-201109

main45250-75121iANF10..W201110-201201

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-75010iANF10200907-201201

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-75020iANF10200907-201201

45286BCOVER, STEERING COLUMN, UPR

main45286-75010-C0iANF10..V200907-201201

BLACK,TRIM06,2#

main45286-75010-E0iANF10..V200907-201201

DK. BROWN,TRIM05,06

main45286-75030-C0supersedes 45286-75020-C0iANF10..W200907-201201

PRE-COLLISION SYSTEM-WITH(*DMO & *PB),BLACK,TRIM06,2#

main45286-75030-E0supersedes 45286-75020-E0iANF10..W200907-201201

PRE-COLLISION SYSTEM-WITH(*DMO & *PB),DK. BROWN,TRIM05,06

45287COVER, STEERING COLUMN, LWR

main45287-75010-C0iANF10..V200907-201201

BLACK,TRIM06,2#

main45287-75010-E0iANF10..V200907-201201

DK. BROWN,TRIM05,06

main45287-75020-C0iANF10..W200907-201201

BLACK,TRIM06,2#

main45287-75020-E0iANF10..W200907-201201

DK. BROWN,TRIM05,06

45289CCOVER, STEERING COLUMN, LWR NO.2

main45289-75010-C0iANF10..W200907-201201

BLACK,TRIM06,2#

main45289-75010-E0iANF10..W200907-201201

DK. BROWN,TRIM05,06

45897ABOLT, TILT STEERING PAWL SET

main45897-20020iANF10200907-201201

9011908560

main90119-08560

9046706188

main90467-06188

9415180800

main94151-80800

12 parts on this diagram · 1 diagram in section
