OIL COOLER & TUBE (HEV OR BEV OR FCEV)

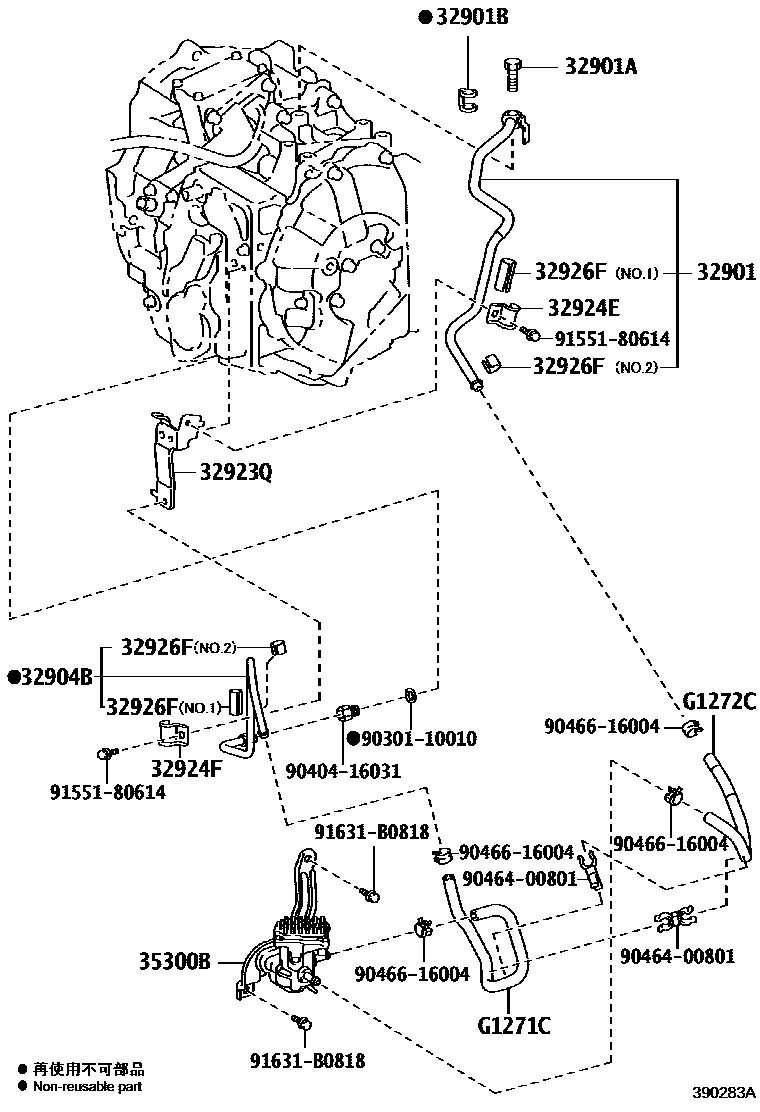

Parts diagram

32901UNION SUB-ASSY, OIL COOLER

main32901-75010i200907-201201

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039i200907-201201

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037i200907-201201

32904BTUBE SUB-ASSY, OIL COOLER INLET

main32904-75010i200907-201201

32923QCLAMP, OIL COOLER TUBE

main32923-75010i200907-201201

32924ECLAMP, OIL COOLER TUBE, NO.2

main32924-48010i200907-201201

32924FCLAMP, OIL COOLER TUBE, NO.2

main32924-48010i200907-201201

32926FCUSHION, OIL COOLER TUBE

main32926-30020i200907-201201

NO.1

main32926-75010i200907-201201

NO.2

35300BPUMP ASSY, OIL W/MOTOR

main35300-75010i200907-201201

G1271CHOSE, MOTOR COOLING, NO.1

mainG127175010i200907-201201

G1272CHOSE, MOTOR COOLING, NO.2

mainG127275010i200907-201201

9030110010

main90301-10010

9040416031

main90404-16031

9046400801

main90464-00801

9046616004

main90466-16004

9155180614

main91551-80614

91631B0818

main91631-B0818

17 parts on this diagram · 1 diagram in section
