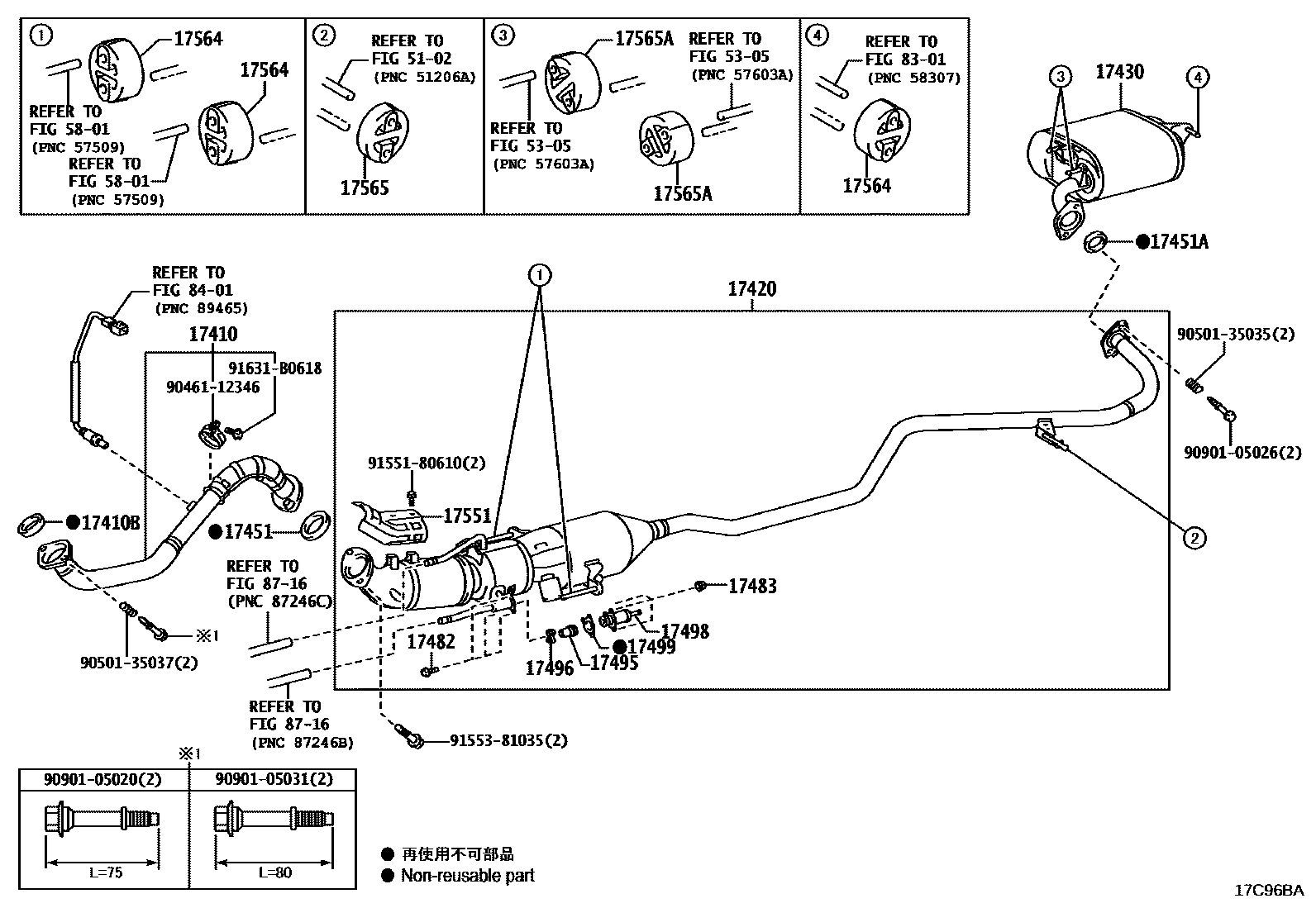

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-28630i2AZFXE..ANF10200907-201201

17410BGASKET, EXHAUST PIPE

main17451-28070i2AZFXE..ANF10200907-201201

17420PIPE ASSY, EXHAUST, CENTER

main17420-28A00i2AZFXE..ANF10200907-201001

main17420-28A01i2AZFXE..ANF10201002-201201

17430PIPE ASSY, EXHAUST, TAIL

main17430-28A20i2AZFXE..ANF10200907-201201

17451GASKET, EXHAUST PIPE

main90917-06078i2AZFXE..ANF10200907-201201

17451AGASKET, EXHAUST PIPE, NO.2

main17451-23041i2AZFXE..ANF10200907-201009

main17451-23042i2AZFXE..ANF10201010-201201

17482BOLT, EXHAUST PIPE GAS CONTROL ACTUATOR

main17482-47010×3i2AZFXE..ANF10200907-201201

17483NUT, EXHAUST PIPE GAS CONTROL ACTUATOR

main17483-47010×3i2AZFXE..ANF10200907-201201

17495ACTUATOR, EXHAUST PIPE GAS CONTROL

main17495-47010i2AZFXE..ANF10200907-201201

17496STOPPER, EXHAUST PIPE GAS CONTROL ACTUATOR

main17496-47010i2AZFXE..ANF10200907-201201

17498CASE, EXHAUST PIPE GAS CONTROL ACTUATOR

main17498-47010i2AZFXE..ANF10200907-201201

17499GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR

main17499-47010i2AZFXE..ANF10200907-201201

17551INSULATOR, EXHAUST PIPE HEAT, NO.1

main17551-28040i2AZFXE..ANF10200907-201201

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-28010×2i2AZFXE..ANF10200907-200910

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22030i2AZFXE..ANF10200907-201201

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040×3i2AZFXE..ANF10200907-200910

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8301METER

→ Go to FIG 83-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9046112346

main90461-12346

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9090105031

main90901-05031

9155180610

main91551-80610

9155381035

main91553-81035

91631B0618

main91631-B0618

31 parts on this diagram · 1 diagram in section
