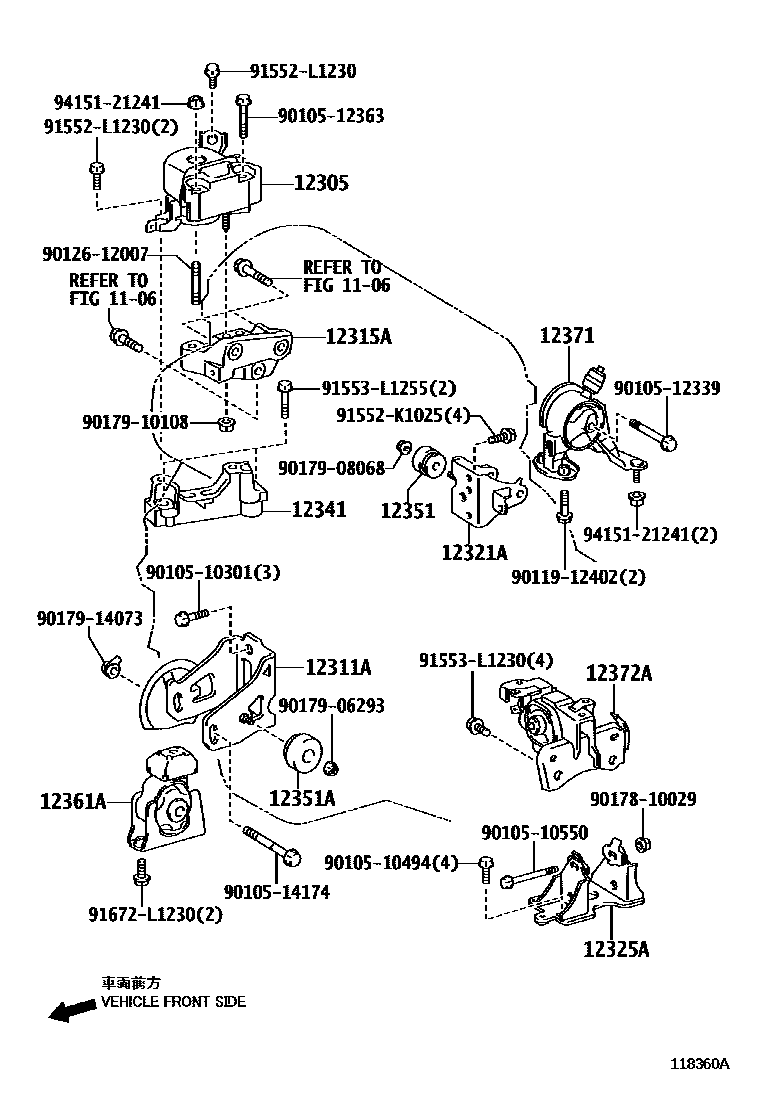

MOUNTING

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-28290i2AZFXE..ANF10200907-201201

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-28300i2AZFXE..ANF10200907-201101

main12311-28301i2AZFXE..ANF10201102-201201

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-28090i2AZFXE..ANF10200907-201201

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-28230i2AZFXE..ANF10200907-201201

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-28340i2AZFXE..ANF10200907-201201

12341SPACER, ENGINE MOUNTING

main12341-26011i2AZFXE..ANF10200907-201201

12351DAMPER, ENGINE MOUNTING

main12351-22060i2AZFXE..ANF10200907-201201

12351ADAMPER, ENGINE MOUNTING(FOR INSULATOR)

main12351-74010i2AZFXE..ANF10200907-201201

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-28300i2AZFXE..ANF10200907-200908

main12361-28301i2AZFXE..ANF10200909-201010

main12361-28302i2AZFXE..ANF10201011-201102

main12361-28310i2AZFXE..ANF10201103-201201

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-28230i2AZFXE..ANF10200907-201102

main12371-28260i2AZFXE..ANF10201103-201201

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-28370i2AZFXE..ANF10200907-201201

9010510301

main90105-10301

9010510494

main90105-10494

9010510550

main90105-10550

9010512339

main90105-12339

9010512363

main90105-12363

9010514174

main90105-14174

9011912402

main90119-12402

9012612007

main90126-12007

9017810029

main90178-10029

9017906293

main90179-06293

9017908068

main90179-08068

9017910108

main90179-10108

9017914073

main90179-14073

91552K1025

main91552-K1025

91552L1230

main91552-L1230

91553L1230

main91553-L1230

91553L1255

main91553-L1255

91672L1230

main91672-L1230

9415121241

main94151-21241

31 parts on this diagram · 1 diagram in section
