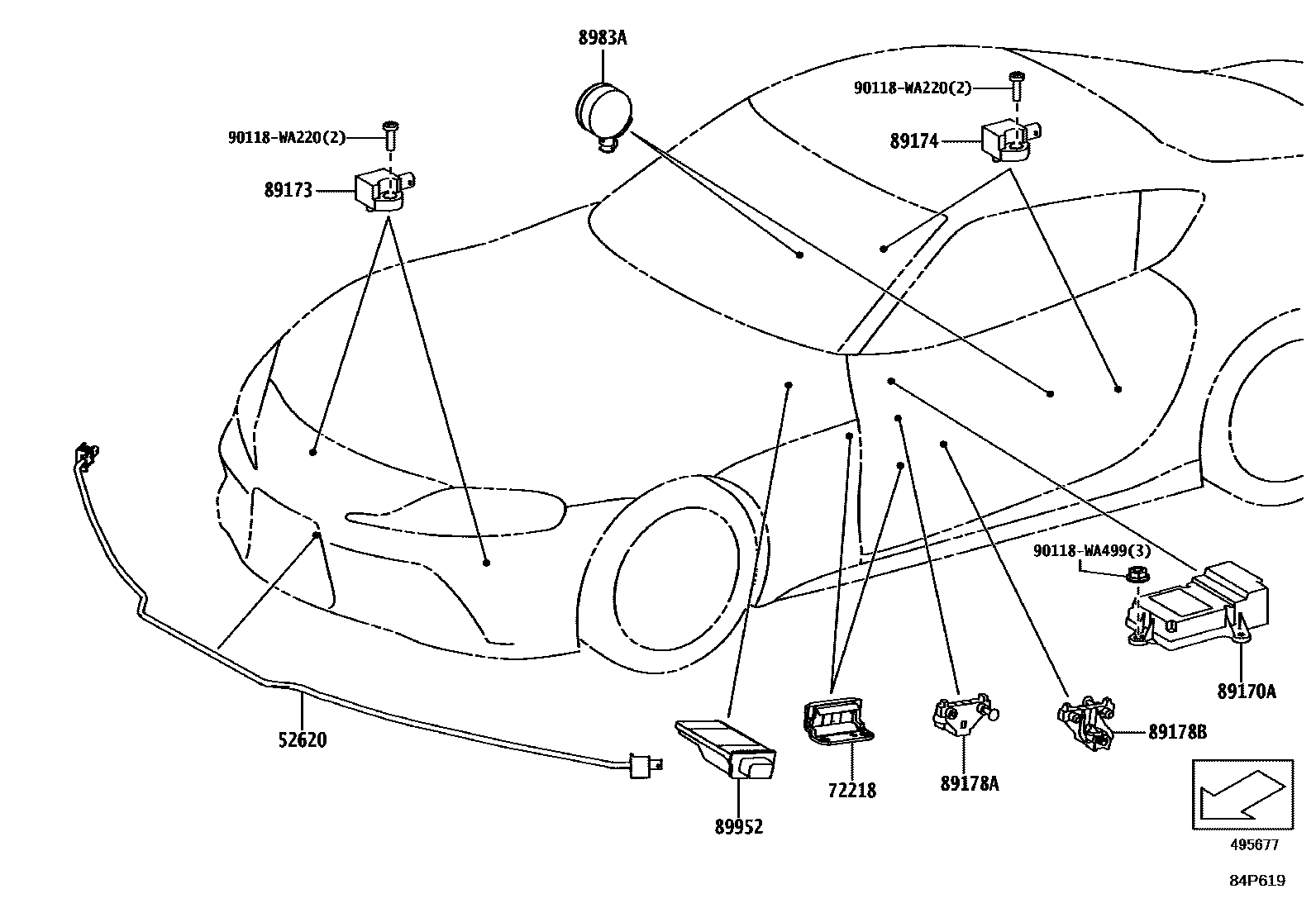

AIR BAG

52620CHAMBER ASSY, PEDESTRIAN DETECTION

main52620-WAA01iDB27202207

POP UP HOOD-WITH

72218MAGNET, SEAT POSITION SENSOR

main72218-WAA01iDB07,27202207

SEAT ADJUSTER-POWER SEAT

89170ACOMPUTER ASSY, AIRBAG

main89170-WAA17supersedes 89170-WAA24iDB07; DB27202207-202403

AVS-WITH

main89170-WAA21iDB07; DB27202404

AVS-WITH

89173SENSOR, AIRBAG, FRONT

main89190-WAA03×2iDB07,27202207

89174SENSOR, AIRBAG

main89190-WAA04×2iDB07,27202207

89178ASENSOR, SEAT POSITION AIRBAG

main89178-WAA03iDB07202207

89178BSENSOR, SEAT POSITION AIRBAG, NO.2

main89178-WAA04iDB07202207

SEAT ADJUSTER-POWER SEAT

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-WAA02×2iDB07,27202207

89952COMPUTER, OCCUPANT DETECTION

main89952-WAA01iDB07,27202207

90118WA220

main90118-WA220

90118WA499

main90118-WA499

11 parts on this diagram · 1 diagram in section
