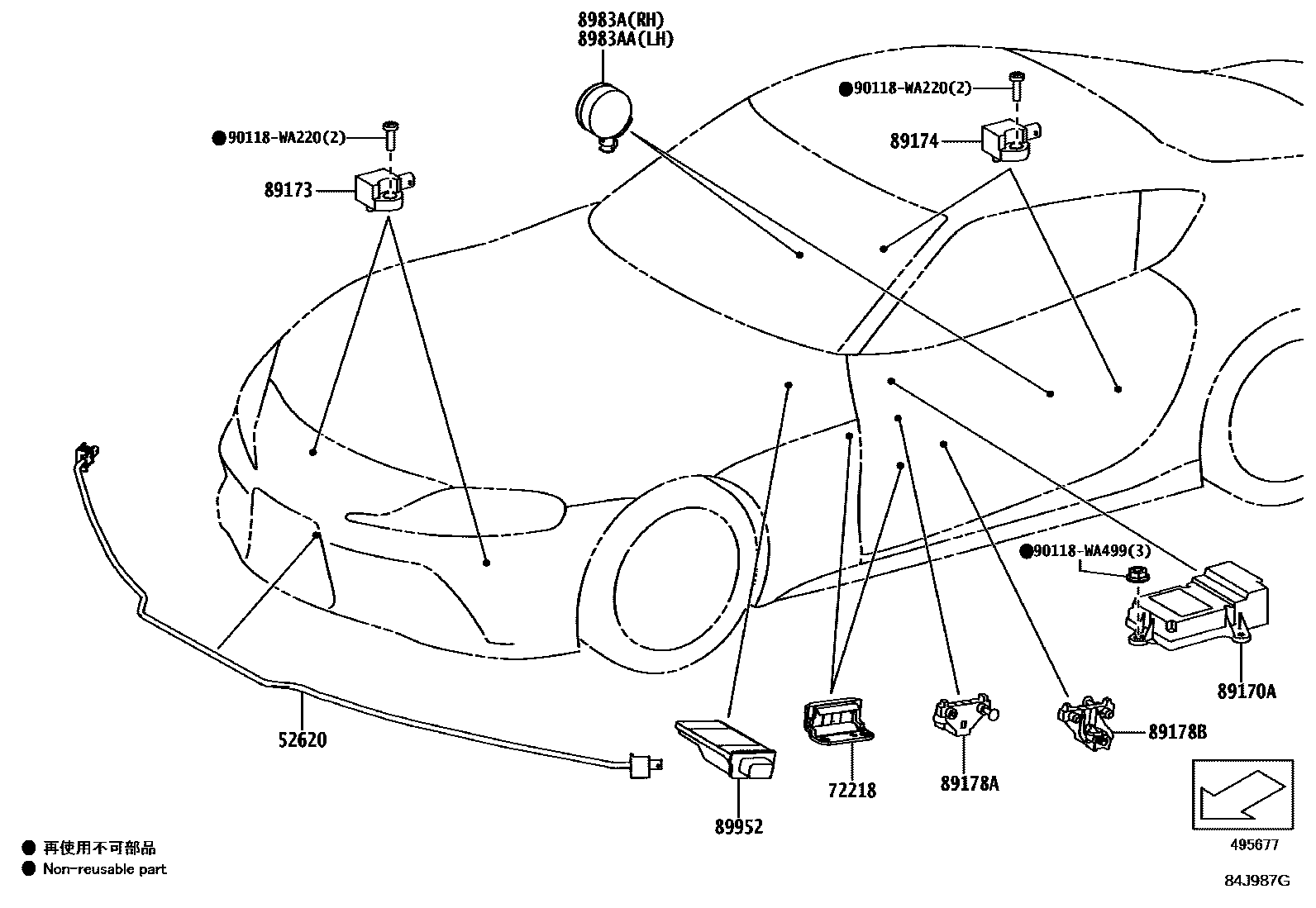

AIR BAG

52620CHAMBER ASSY, PEDESTRIAN DETECTION

main52620-WAA01iDB43201903-202002

72218MAGNET, SEAT POSITION SENSOR

main72218-WAA01iDB43201903-202002

SEAT ADJUSTER-POWER TYPE

89170ACOMPUTER ASSY, AIRBAG

main89170-WAA15supersedes 89170-WAA24iDB23202007-202211

AVS-WITH

main89170-WAA17supersedes 89170-WAA24iDB03; DB23202003-202403

AVS-WITH

main89170-WAA20supersedes 89170-WAA15iDB43201903-202002

AVS-WITH

main89170-WAA21supersedes 89170-WAA24iDB03; DB23202404

AVS-WITH

main89170-WAA24iDB03202003

AVS-WITH

89173SENSOR, AIRBAG, FRONT

main89190-WAA01×2iDB43201903-202002

89174SENSOR, AIRBAG

main89190-WAA02×2iDB43201903-202002

89178ASENSOR, SEAT POSITION AIRBAG

main89178-WAA03iDB23202007

89178BSENSOR, SEAT POSITION AIRBAG, NO.2

main89178-WAA04iDB43201903-202002

SEAT ADJUSTER-POWER TYPE

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-WAA01iDB43201903-202002

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-WAA01iDB43201903-202002

89952COMPUTER, OCCUPANT DETECTION

main89952-WAA01iDB43201903-202002

90118WA220

main90118-WA220

90118WA499

main90118-WA499

12 parts on this diagram · 1 diagram in section
