ROOF PANEL & BACK WINDOW GLASS

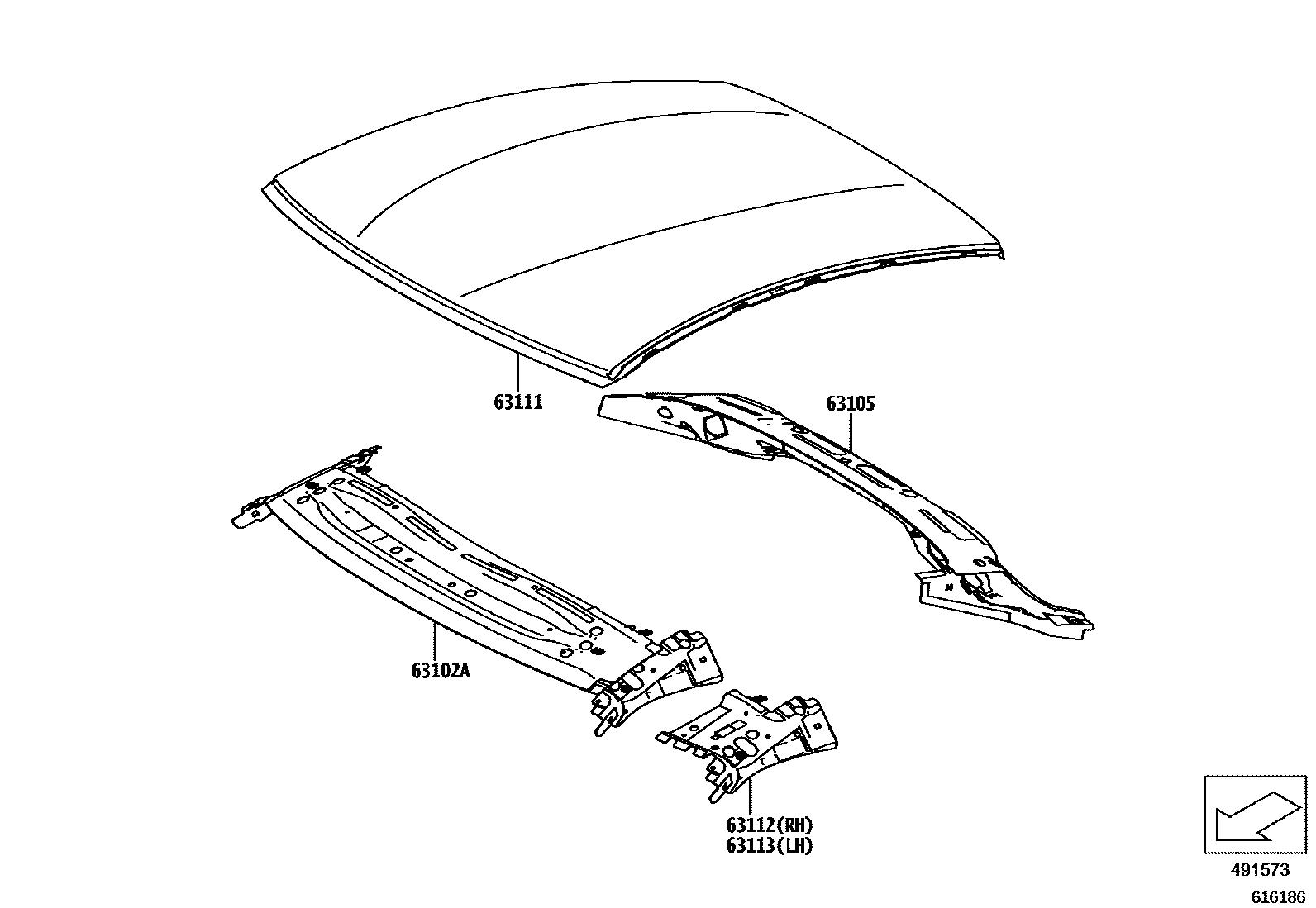

Parts diagram

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-WAA01i202007

63105REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63105-WAA01i202007

63111PANEL, ROOF

main63111-WAA01i202007

63112GUSSET, ROOF PANEL SIDE, RH

main61173-WAA01i202007

63113GUSSET, ROOF PANEL SIDE, LH

main61174-WAA01i202007

5 parts on this diagram · 3 diagrams in section
