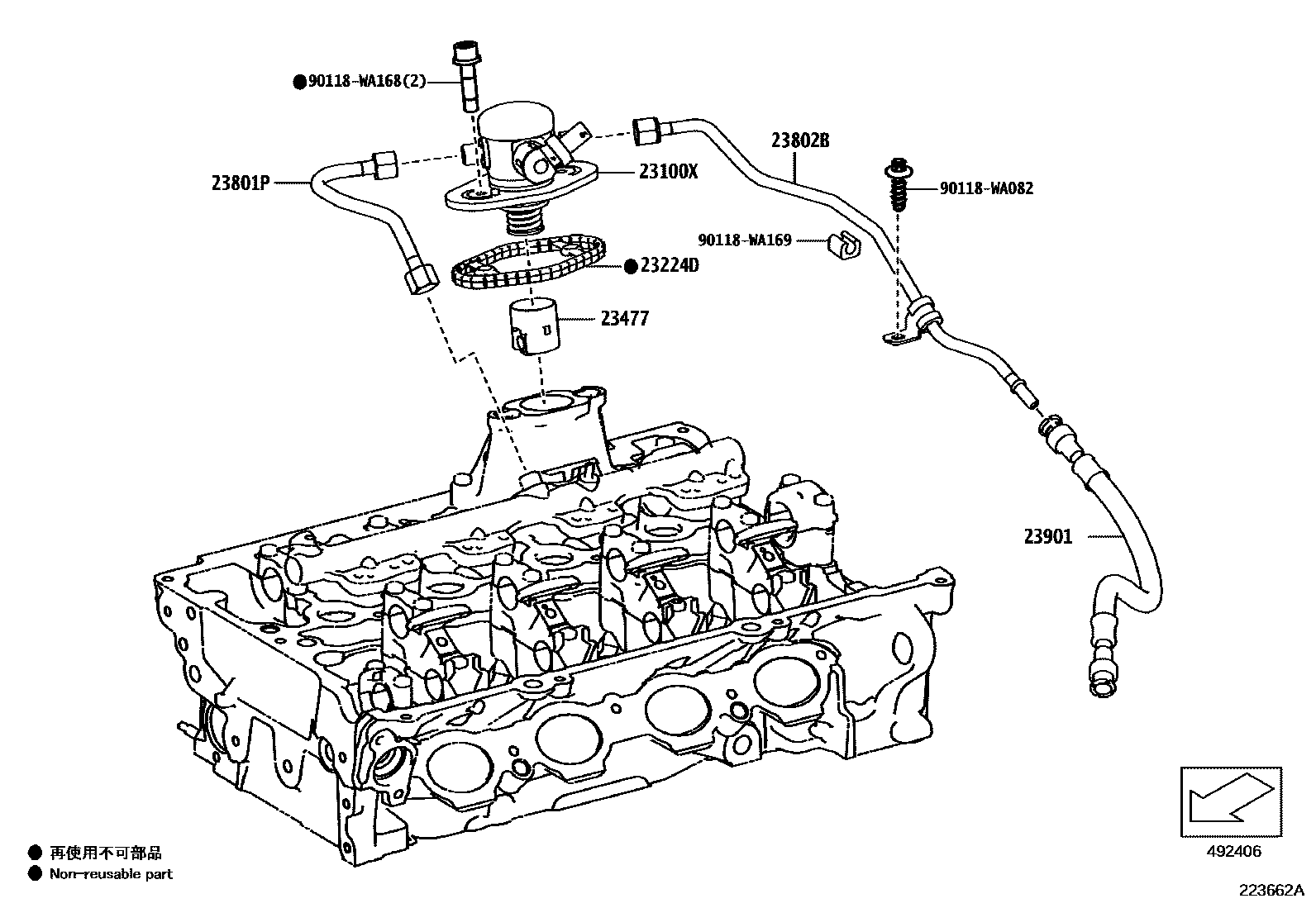

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23021-WAA01iB58..DB43201903-202002

23224DGASKET, FUEL PUMP SPACER

main23224-WAA01iB58H..DB03202003

main23224-WAA02iB46H..DB23202007

23477GUIDE, FUEL PUMP LIFTER

main23470-WAA01iB58..DB43201903-202002

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-WAA01iB46H..DB23202007-202212

main23801-WAA03iB58..DB43201903-202002

main23801-WAA05iB46H..DB23202212

23802BPIPE SUB-ASSY, FUEL, NO.2

main23801-WAA02iB58..DB43201903-201911

main23801-WAA04iB46H..DB23202007

23901TUBE SUB-ASSY, FUEL

main23901-WAA01iB58..DB43201903-202002

90118WA082

main90118-WA082

90118WA168

main90118-WA168

90118WA169

main90118-WA169

9 parts on this diagram · 11 diagrams in section
