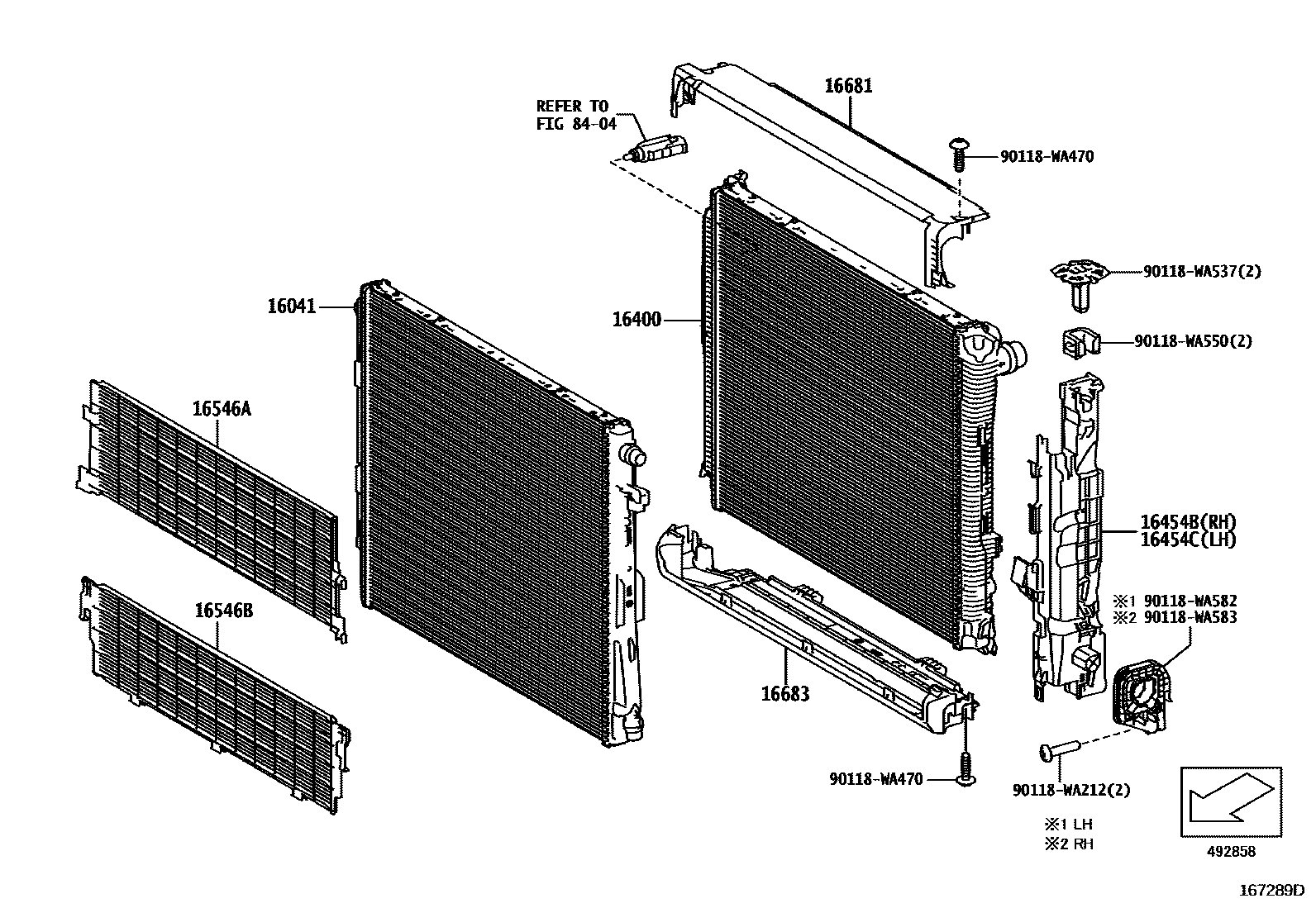

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1RADIATOR SIDE 0003 1RADIATOR SIDE 0004 1RADIATOR SIDE 0005 1ENGINE SIDE 0006 1ENGINE SIDE 0007 1ENGINE SIDE 0008 1ENGINE SIDE 0009 1ENGINE SIDE 0010 1ENGINE SIDE 0011 1ENGINE SIDE 0012 1ENGINE SIDE

16041RADIATOR ASSY, NO.2

main16400-WAA03iB46H..DB23202007

CHINA SPEC

16400RADIATOR ASSY

main16400-WAA01iB46H..DB23202007

16454BPLATE, RADIATOR SIDE, RH

main16453-WAA02iB46H..DB23202007

16454CPLATE, RADIATOR SIDE, LH

main16454-WAA02iB46H..DB23202007

16546APROTECTOR, RADIATOR, UPPER

main16546-WAA01iB46H..DB23202007

16546BPROTECTOR, RADIATOR, LOWER

main16546-WAA02iB46H..DB23202007

16681PLATE, RADIATOR UPPER AIR GUIDE

main16453-WAA01iB46H..DB23202007

16683PLATE, RADIATOR LOWER AIR GUIDE

main16454-WAA01iB46H..DB23202007

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

90118WA212

main90118-WA212

90118WA470

main90118-WA470

90118WA537

main90118-WA537

90118WA550

main90118-WA550

90118WA582

main90118-WA582

90118WA583

main90118-WA583

15 parts on this diagram · 12 diagrams in section
