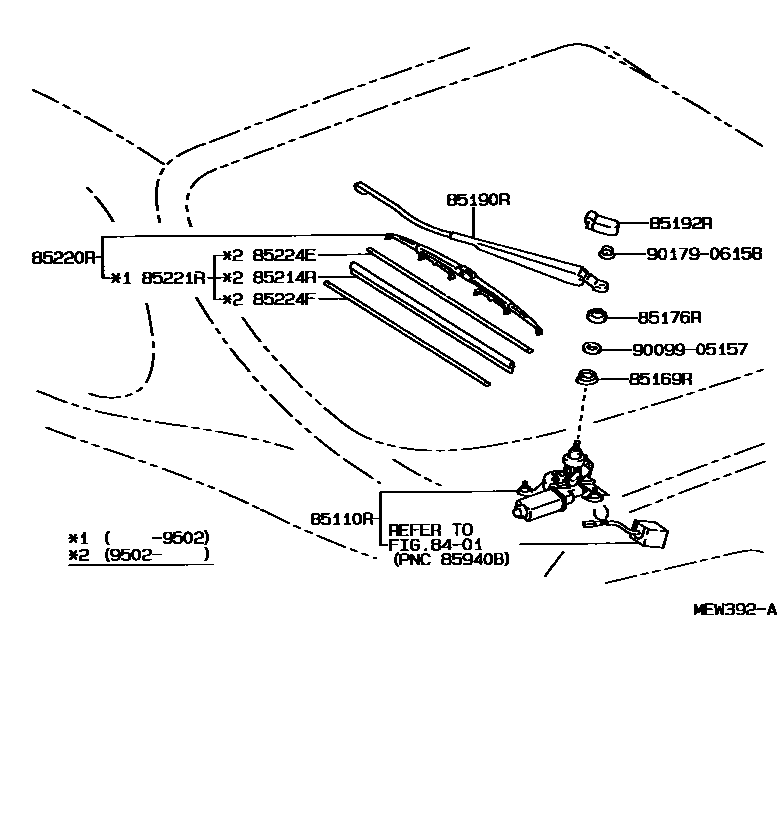

REAR WIPER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85110RMOTOR ASSY, REAR WIPER

main85130-14330iJZA80199305-199808

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85134-14330iJZA80199305-199808

85176RCAP, REAR WIPER LINK

main85176-13070iJZA80199305-199808

85190RARM ASSY, REAR WIPER

main85241-14020iJZA80199305-199808

85192RCOVER, REAR WIPER ARM

main85245-20020iJZA80199305-199808

85214RRUBBER, REAR WIPER

main85214-22360iJZA80199502-199607

85220RBLADE ASSY, REAR WIPER

main85242-14020iJZA80199305-199808

85221RBLADE, REAR WIPER

main85214-22360iJZA80199607-199808

main85243-14010iJZA80199305-199502

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-60050iJZA80199502-199607

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-60050iJZA80199502-199607

9009905157

main90099-05157

9017906158

main90179-06158

13 parts on this diagram · 1 diagram in section
