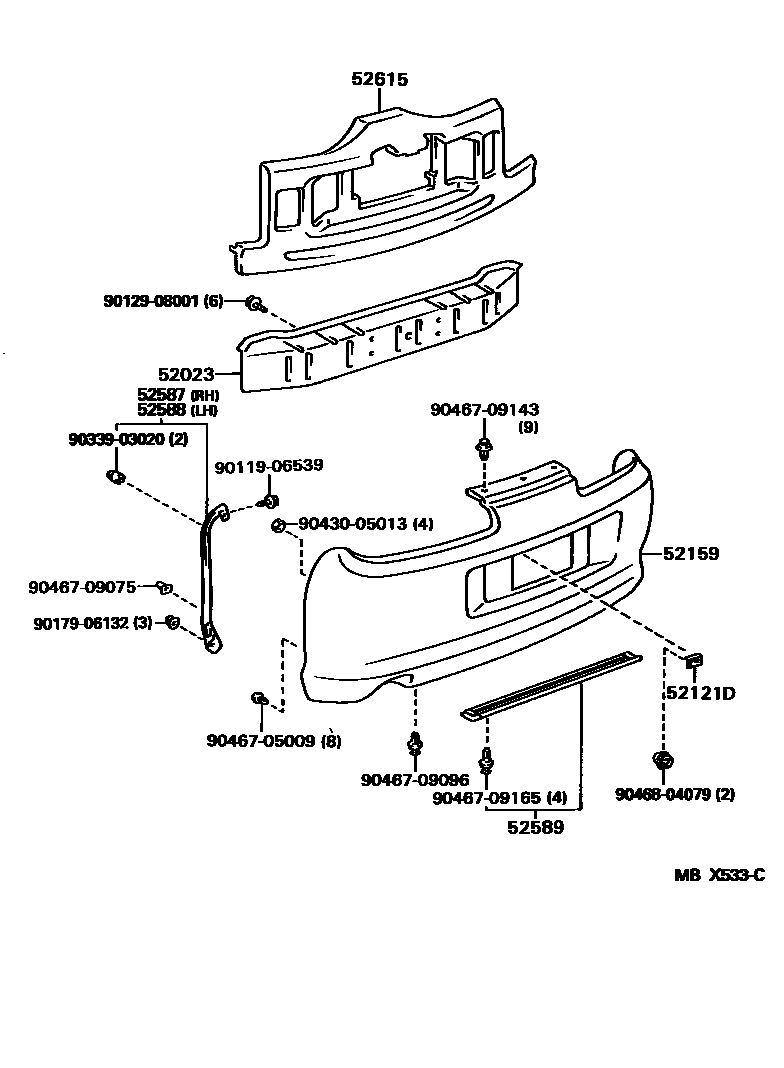

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-14150iJZA80199305-199808

52121DBRACKET, REAR LICENSE PLATE MOUNTING

main52121-24020×2iJZA80199305-199808

52159COVER, REAR BUMPER

main52159-14908iJZA80199305-199808

52587RETAINER, REAR BUMPER END, RH

main52587-14030iJZA80199305-199808

52588RETAINER, REAR BUMPER END, LH

main52588-14030iJZA80199305-199808

52589RETAINER, REAR BUMPER END, NO.2

main52589-14040iJZA80199305-199808

52615ABSORBER, REAR BUMPER ENERGY

main52615-14160iJZA80199305-199808

9011906539

main90119-06539

9012908001

main90129-08001

9017906132

main90179-06132

9033903020

main90339-03020

9043005013

main90430-05013

9046705009

main90467-05009

9046709075

main90467-09075

9046709096

main90467-09096

9046709143

main90467-09143

9046709165

main90467-09165

9046804079

main90468-04079

18 parts on this diagram · 1 diagram in section
