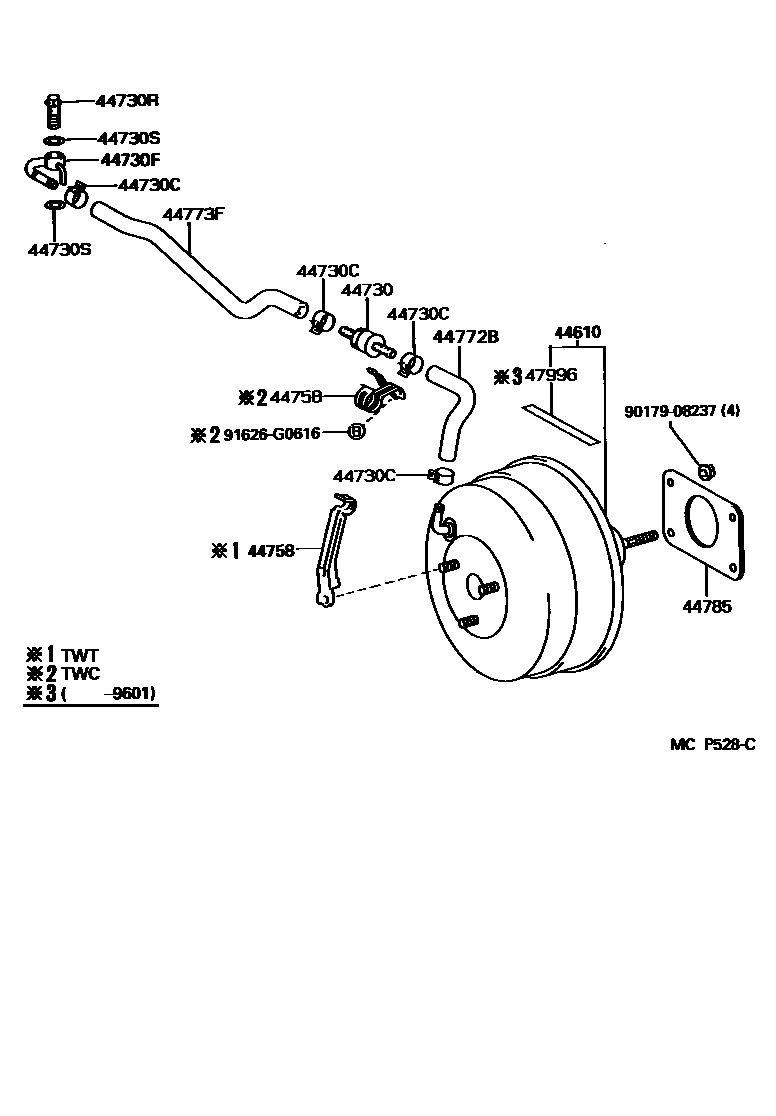

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-14850iJZA80..TWC199305-199808

main44610-14860iJZA80..TWT199305-199601

main44610-14880iJZA80..TWT199601-199607

main44610-1B010iJZA80..TWT199607-199808

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-24020iJZA80199305-199808

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×4iJZA80199305-199808

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90405-09153iJZA80..TWC199305-199806

main90405-09174iJZA80..TWT199305-199806

44730RBOLT, UNION(FOR VACUUM HOSE UNION)

main90401-12012iJZA80199305-199806

44730SGASKET(FOR VACUUM HOSE UNION)

main90430-12005×2iJZA80199305-199806

44758BRACKET, VACUUM CHECK VALVE

main44758-14180iJZA80..TWT199305-199808

main44758-24060iJZA80..TWC199305-199808

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-14200iJZA80..TWC199305-199808

main44772-14210iJZA80..TWT199305-199808

44773FHOSE, UNION TO CHECK VALVE

main44773-14430iJZA80..TWC199305-199808

main44773-14440iJZA80..TWT199305-199808

44785GASKET, BRAKE BOOSTER

main44785-14020iJZA80199305-199808

47996LABEL, BRAKE BLEED NOTICE

main47996-50010iJZA80..TWT199305-199601

9017908237

main90179-08237

91626G0616

main91626-G0616

13 parts on this diagram · 1 diagram in section
