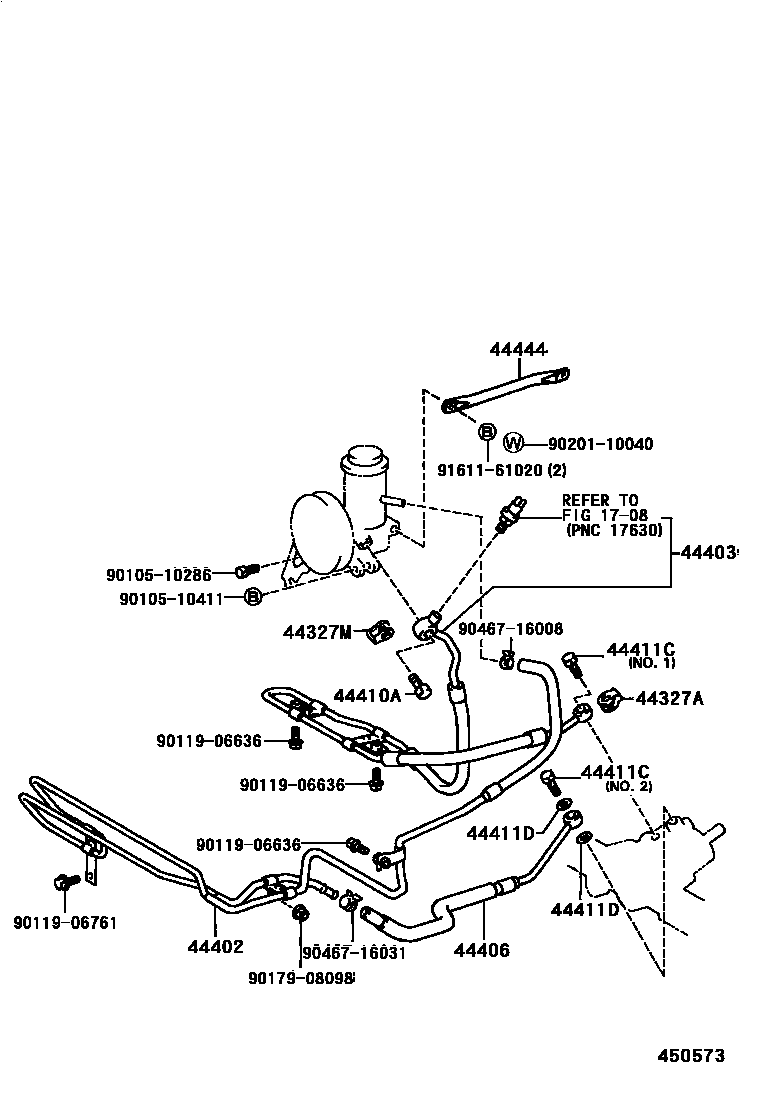

POWER STEERING TUBE

0001 1 0002 1 0003 1

1708VACUUM PIPING

→ Go to FIG 17-08

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iJZA80199305-199607

main44327-30030iJZA80199607-199808

44327MGASKET, PRESSURE PORT, NO.2

main44327-26020iJZA80199305-199607

main44327-30040iJZA80199607-199808

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-14230iJZA80..TWT199305-199408

main44402-14231iJZA80..TWT199408-199808

main44402-14240iJZA80..TWC199305-199709

main44402-14250iJZA80..TWC199709-199808

44403TUBE SUB-ASSY, PRESSURE FEED, NO.1

main44403-14020iJZA80199305-199808

44406TUBE SUB-ASSY, RETURN

main44406-14060iJZA80199305-199808

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16014iJZA80199305-199808

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16013iJZA80199305-199607

NO.1

main90401-17002iJZA80199305-199607

NO.2

main96341-11703iJZA80199607-199808

NO.1

main96341-41603iJZA80199607-199808

NO.2

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-17006iJZA80199305-199607

main90430-17007iJZA80199607-199808

44444STAY, PUMP, REAR

main44444-22090iJZA80..TWT199305-199808

main44444-30100iJZA80..TWC199305-199808

9010510286

main90105-10286

9010510411

main90105-10411

9011906636

main90119-06636

9011906761

main90119-06761

9017908098

main90179-08098

9020110040

main90201-10040

9046716008

main90467-16008

9046716031

main90467-16031

9161161020

main91611-61020
