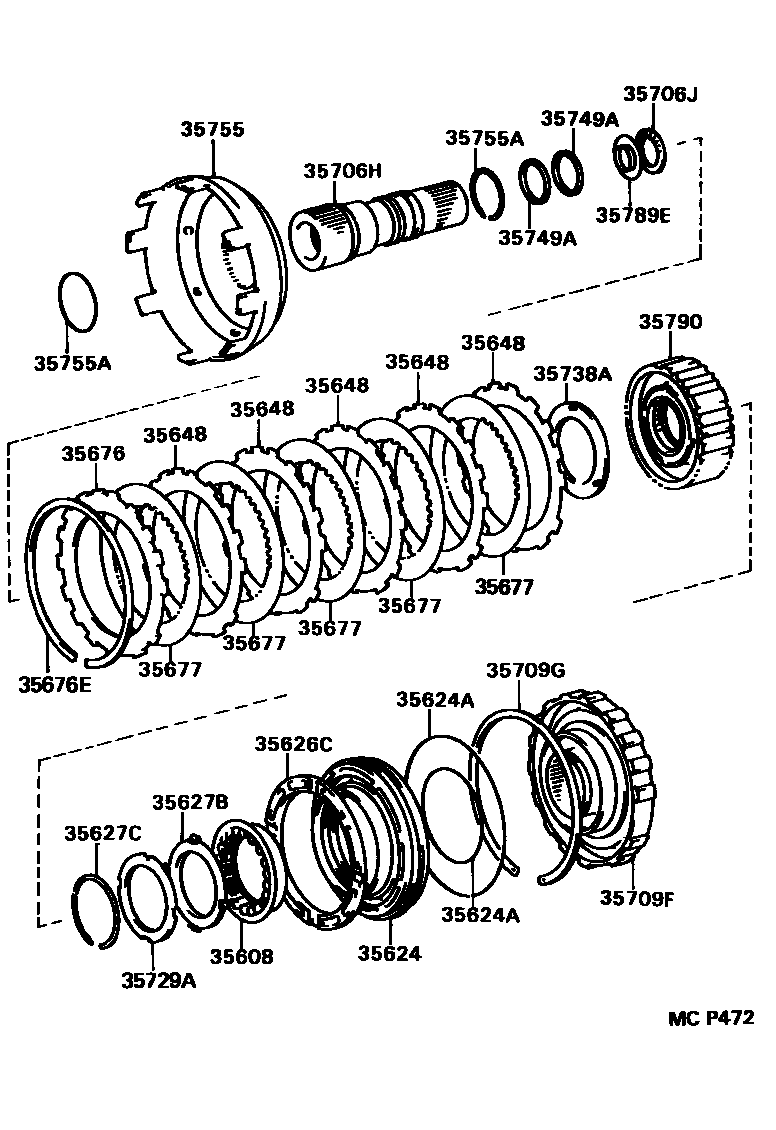

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35624PISTON, 2ND BRAKE
35624ARING, O (FOR 2ND BRAKE PISTON)
INNER
OUTER
35626CSLEEVE, 2ND BRAKE PISTON
35627BSEAT, 2ND BRAKE PISTON RETURN SPRING
35627CRING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEAT)
35648PLATE, CLUTCH (FOR 2ND BRAKE)
T=2.5
T=1.8
35676FLANGE, BRAKE (FOR 2ND BRAKE)
T=3.0
T=3.2
T=3.4
T=3.6
T=3.8
T=4.0
T=4.2
35676ERING, HOLE SNAP (FOR 2ND BRAKE)
35677DISC, CLUTCH (FOR 2ND BRAKE)
35706HGEAR SUB-ASSY, PLANETARY SUN
35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
35709FDRUM SUB-ASSY, 2ND BRAKE
35709GRING, HOLE SNAP (FOR 2ND BRAKE DRUM)
35729AWASHER, PLANETARY CARRIER THRUST, NO.4
35738AWASHER, 1 WAY CLUTCH THRUST, NO.1
35749ARING, SUN GEAR SHAFT OIL SEAL
35755DRUM, SUN GEAR INPUT
35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)
ID=46.0,T=1.2
T=2.3,ID=47.5
ID=49.0,WD=2.3
35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)
35790CLUTCH ASSY, 1 WAY
21 parts on this diagram · 2 diagrams in section
