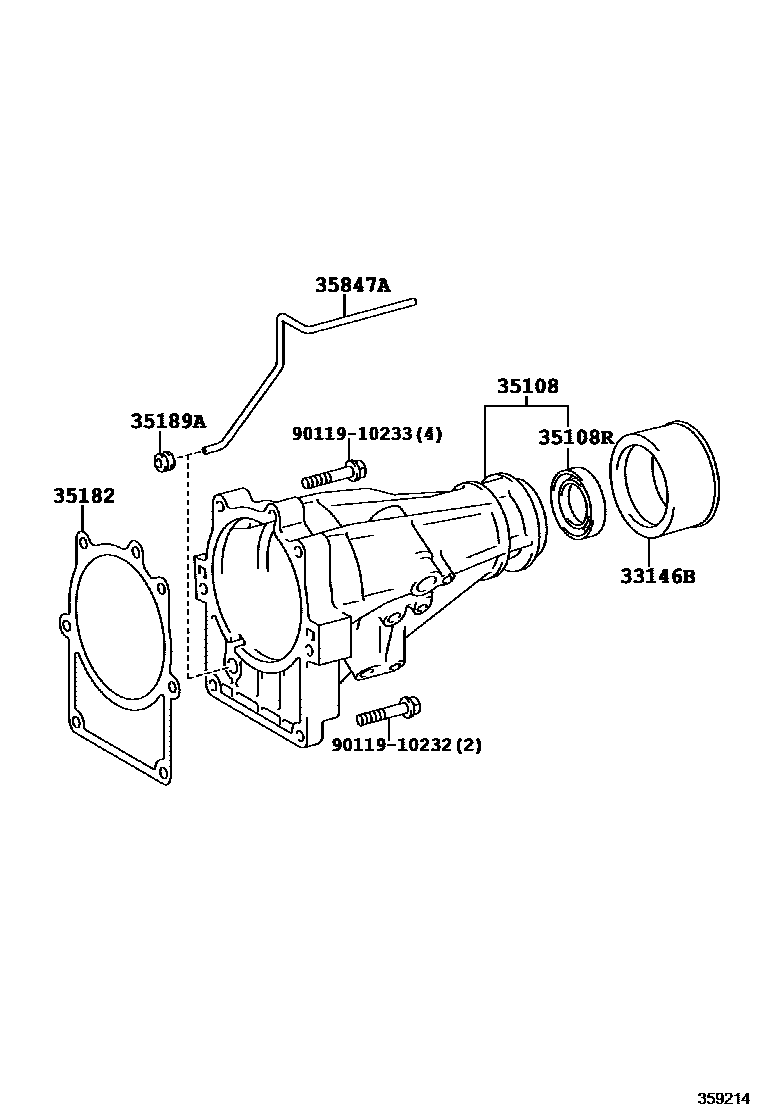

EXTENSION HOUSING (ATM)

0001 1A340E 0002 1A340E

33146BDEFLECTOR, EXTENSION HOUSING DUST

main33146-30010iJZA80..4FC..TWC199305-199411

main33146-30020iJZA80..4FC..TWC199411-199808

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-24040iJZA80..4FC..TWC199305-199709

main35108-30160iJZA80..4FC..TWT199305-199808

main35108-30190iJZA80..TWC199709-199808

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-40001iJZA80..4FC..TWC199305-199808

main90311-42024iJZA80..4FC..TWT199305-199808

35182GASKET, EXTENSION HOUSING (ATM)

main35182-28010iJZA80..4FC..TWC199305-199808

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iJZA80..4FC..TWC199305-199808

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iJZA80..4FC..TWC199305-199808

9011910232

main90119-10232

9011910233

main90119-10233

8 parts on this diagram · 2 diagrams in section
