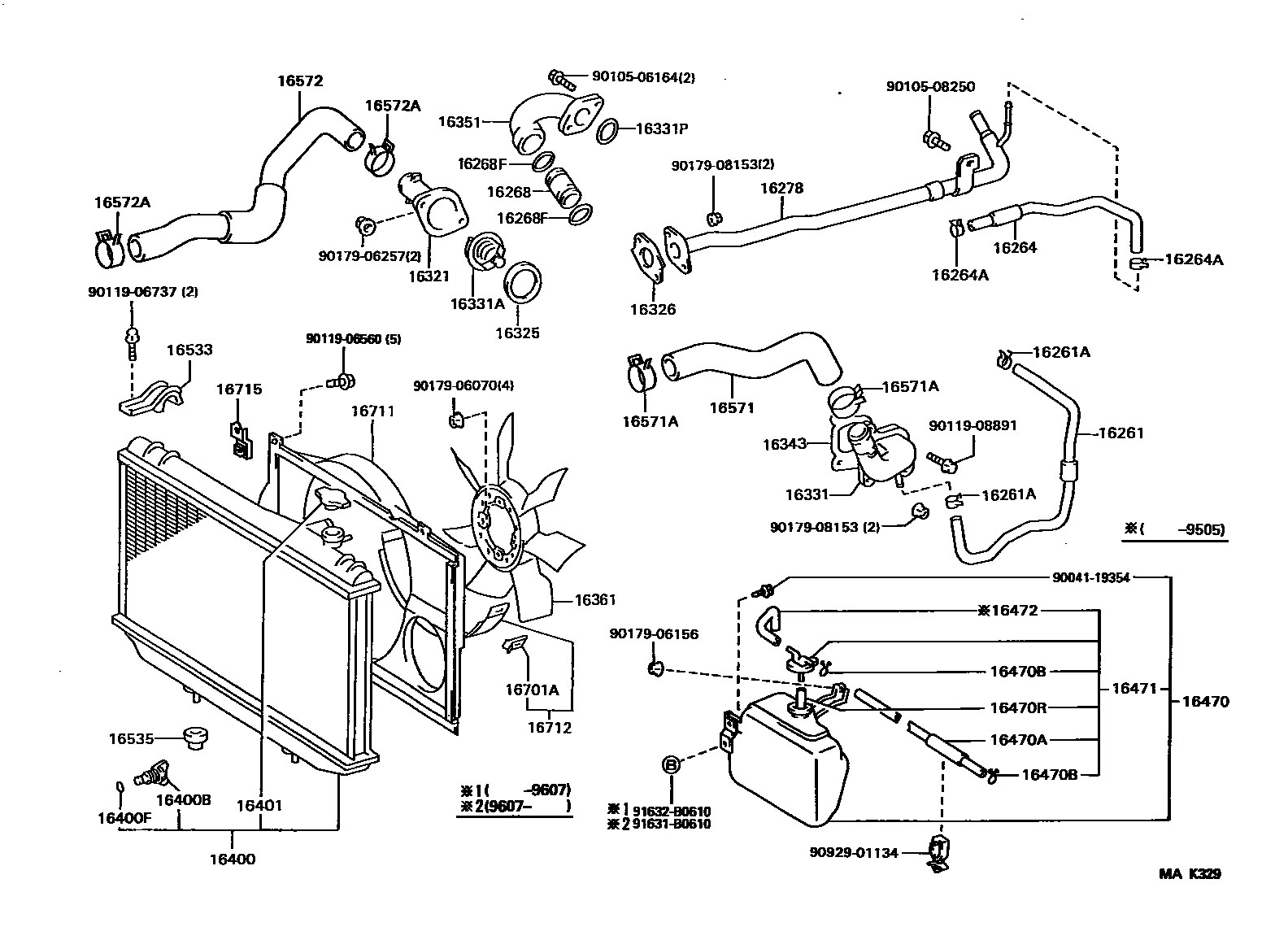

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16268PIPE, WATER BY-PASS, NO.1
16268FRING, O(FOR WATER BY-PASS PIPE)
16278PIPE, WATER BY-PASS, NO.2
16321INLET, WATER
16325GASKET, WATER INLET HOUSING, NO.1
16326GASKET, WATER INLET HOUSING, NO.2
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
16331PRING,O(FOR WATER OUTLET)
16343GASKET, WATER OUTLET HOUSING
16351OUTLET, WATER BY-PASS
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=1000(*H,L=750)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
L=600(*H,L=135)
L=600(*H,L=140)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
RADIATOR SIDE
INLET SIDE
ENGINE SIDE
16701ACLIP(FOR FAN SHROUD)
16711SHROUD, FAN
NO.1
NO.2
16712SHROUD, FAN, NO.2
16715BRACKET, FAN SHROUD
9004119354
main90041-19354
9010506164
main90105-06164
9010508250
main90105-08250
9011906560
main90119-06560
9011906737
main90119-06737
9011908891
main90119-08891
9017906070
main90179-06070
9017906156
main90179-06156
9017906257
main90179-06257
9017908153
main90179-08153
9092901134
main90929-01134
91631B0610
main91631-B0610
91632B0610
main91632-B0610
49 parts on this diagram · 3 diagrams in section
