ENGINE OVERHAUL GASKET KIT

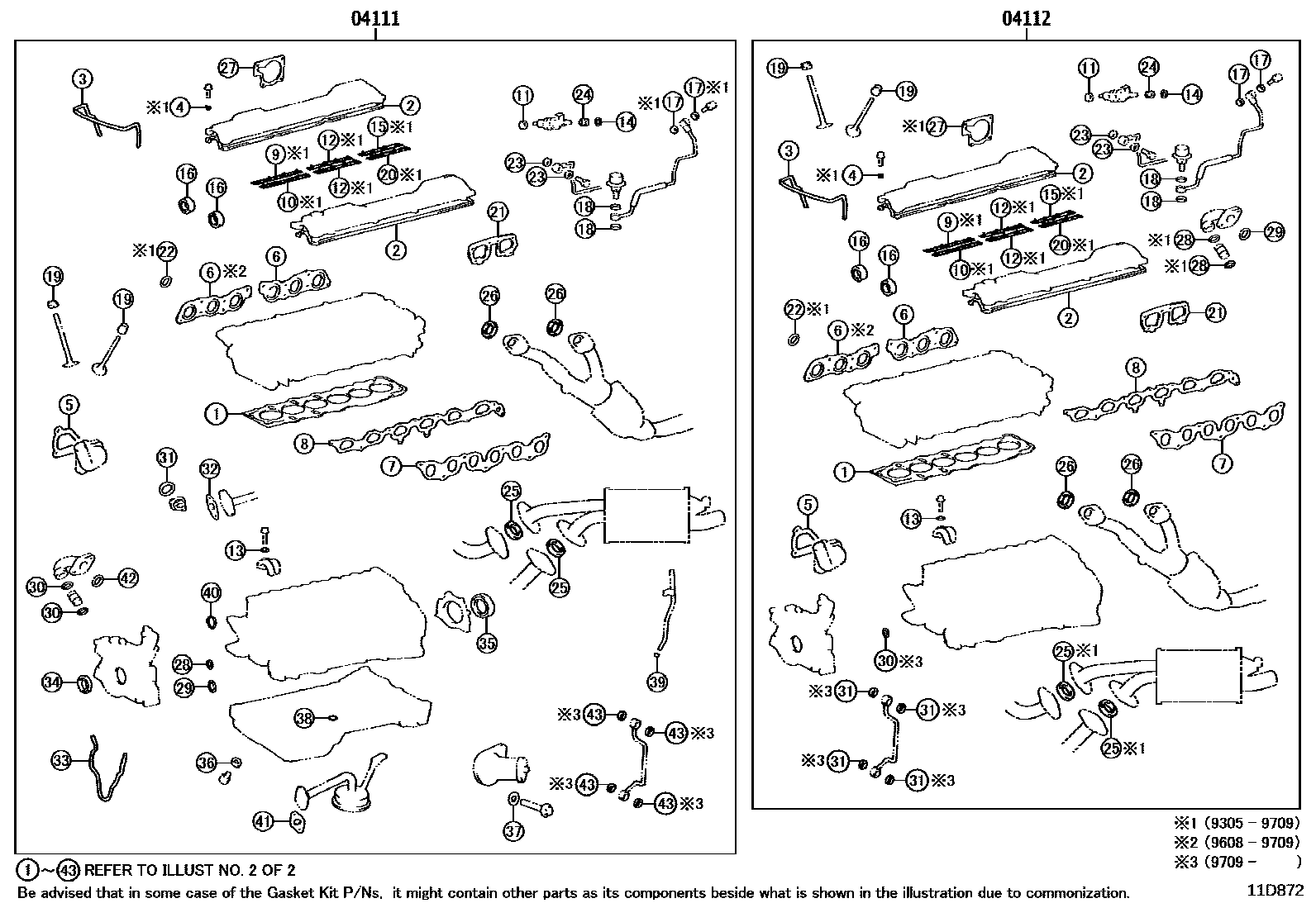

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-46043i199305-199306
sub04111-46044
main04111-46044i199306-199608
sub04111-46045
main04111-46045i199608-199709
main04111-46093i199305-199709
sub04111-46094
main04111-46094i199709-199808
main04111-46102i199709-199808
04112GASKET KIT, ENGINE VALVE GRIND
main04112-46043i199305-199306
sub04112-46044
main04112-46044i199306-199608
sub04112-46045
main04112-46045i199608-199709
main04112-46093i199305-199709
sub04112-46094
main04112-46094i199709-199808
main04112-46102i199709-199808

2 parts on this diagram · 6 diagrams in section
