SHORT BLOCK ASSEMBLY

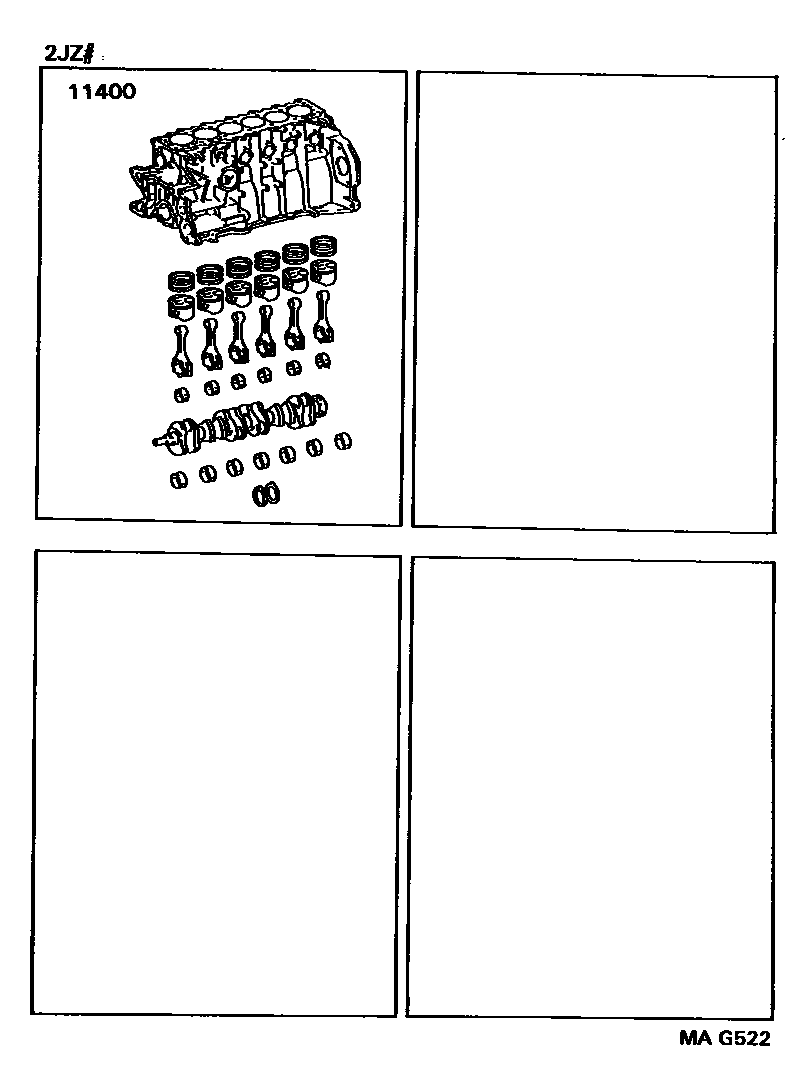

Parts diagram

11400BLOCK ASSY, SHORT

main11400-49065i199305-199505

main11400-49066i199505-199604

main11400-49067i199604-199709

main11400-49085i199305-199505

main11400-49086i199505-199604

main11400-49087i199604-199707

main11400-49088i199707-199808

main11400-49165i199709-199808

1 parts on this diagram · 1 diagram in section
