CENTER STOP LAMP

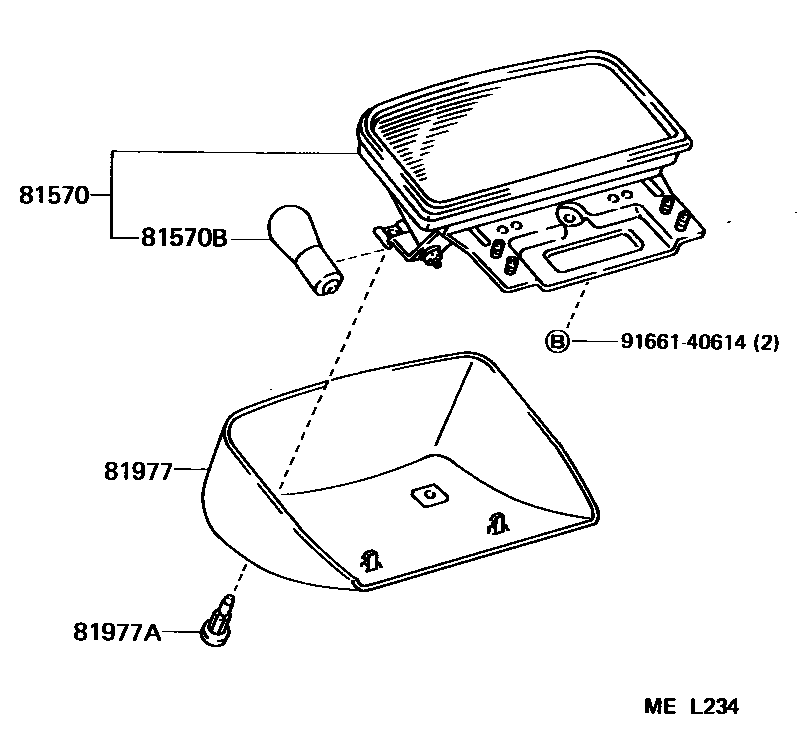

Parts diagram

81570LAMP ASSY, CENTER STOP

main81570-14020i198808-199004

main81570-14021i199004-199305

main81570-14040i198808-198908

81570BBULB (FOR CENTER STOP LAMP)

main99132-11270i198808-199305

12V 27W

81977COVER, CENTER STOP LAMP

main81977-14010-02i198808-199008

MAROON,TRIM3#

main81977-14010-03i198808-199008

MEDIUM GRAY,TRIM1#

main81977-14010-04i198808-199305

DEEP BLUE,TRIM8#

main81977-14010-06i198901-199108

BROWN,TRIM4#

main81977-14010-12i199008-199305

DEEP RED,TRIM3#

main81977-14010-13i199008-199305

SHADOW GRAY,TRIM1#

81977ACLIP (FOR CENTER STOP LAMP)

main90467-07041-10×2i198808-198901

MEDIUM GRAY,TRIM1#

main90467-07041-24×2i198808-199305

DEEP BLUE,TRIM8#

main90467-07041-30×2i199008-199305

DEEP RED,TRIM3#

main90467-07041-43×2i199008-199305

SHADOW GRAY,TRIM1#

main90467-07041-52×2i198808-199008

MAROON,TRIM3#

main90467-07041-56×2i198808-198901

BROWN,TRIM4#

main90467-07041-B2×2i198901-199008

MEDIUM GRAY,TRIM1#

main90467-07041-E1×2i198901-199108

BROWN,TRIM4#

9166140614

main91661-40614

5 parts on this diagram · 2 diagrams in section
