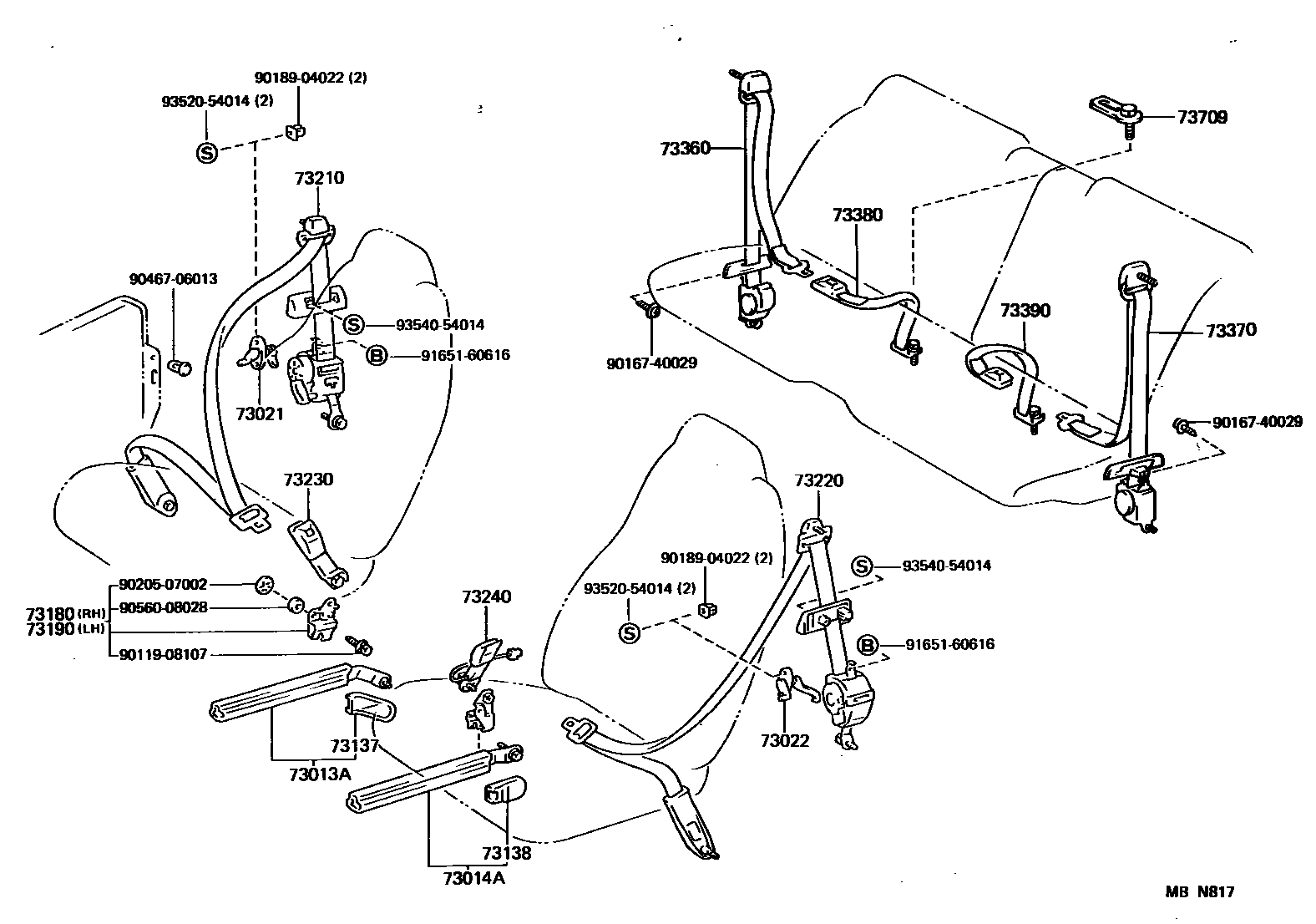

SEAT BELT & CHILD RESTRAINT SEAT

73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH

main73013-14030-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main73013-14030-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

main73013-14030-04iMA70198808-198908

DEEP BLUE,TRIM8#

main73013-14030-12iMA70199008-199305

DEEP RED,TRIM3#

main73013-14030-13iMA70199008-199305

SHADOW GRAY,TRIM1#

main73013-14030-16iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

BROWN,TRIM4#

73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH

main73014-14030-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main73014-14030-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

main73014-14030-04iMA70199008-199305

DEEP BLUE,TRIM8#

main73014-14030-12iMA70199008-199305

DEEP RED,TRIM3#

main73014-14030-13iMA70199008-199305

SHADOW GRAY,TRIM1#

main73014-14030-16iMA70198808-198901

BROWN,TRIM4#

73021LEVER SUB-ASSY, SEAT BELT COMFORT, RH

main73021-14031iMA70198808-198908

73022LEVER SUB-ASSY, SEAT BELT COMFORT, LH

main73022-14031iMA70198808-198908

73137CAP, FRONT SEAT BELT INNER ANCHOR, RH

main73137-14030-02iMA70198808-198908

MAROON,TRIM3#

main73137-14030-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

main73137-14030-04iMA70199008-199305

DEEP BLUE,TRIM8#

main73137-14030-12iMA70199008-199305

DEEP RED,TRIM3#

main73137-14030-13iMA70199008-199305

SHADOW GRAY,TRIM1#

main73137-14030-16iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

BROWN,TRIM4#

73138CAP, FRONT SEAT BELT INNER ANCHOR, LH

main73138-14030-02iMA70198808-198908

MAROON,TRIM3#

main73138-14030-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

main73138-14030-04iMA70198808-198908

DEEP BLUE,TRIM8#

main73138-14030-12iMA70199008-199305

DEEP RED,TRIM3#

main73138-14030-13iMA70199008-199305

SHADOW GRAY,TRIM1#

main73138-14030-16iMA70..TWT198901-198908

BROWN,TRIM4#

73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH

main73011-14020iMA70198808-198908

73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH

main73012-14020iMA70198808-198908

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-14490-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main73210-14490-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main73210-14490-04iMA70198808-198908

DEEP BLUE,TRIM8#

main73210-14490-06iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

BROWN,TRIM4#

main73210-14490-12iMA70199008-199305

DEEP RED,TRIM3#

main73210-14490-13iMA70199108-199305

SHADOW GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-14430-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main73220-14430-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main73220-14430-04iMA70199008-199305

DEEP BLUE,TRIM8#

main73220-14430-06iMA70..TWT198901-198908

BROWN,TRIM4#

main73220-14430-12iMA70199008-199305

DEEP RED,TRIM3#

main73220-14430-13iMA70199008-199305

SHADOW GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-14440-02iMA70198808-198908

MAROON,TRIM3#

main73230-14440-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

main73230-14440-04iMA70198808-198908

DEEP BLUE,TRIM8#

main73230-14440-06iMA70198808-198901

BROWN,TRIM4#

main73230-14440-12iMA70199008-199305

DEEP RED,TRIM3#

main73230-14440-13iMA70199008-199305

SHADOW GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-14160-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main73240-14160-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

main73240-14160-04iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

DEEP BLUE,TRIM8#

main73240-14160-06iMA70..TWT198901-198908

BROWN,TRIM4#

main73240-14160-12iMA70199008-199305

DEEP RED,TRIM3#

main73240-14160-13iMA70199008-199305

SHADOW GRAY,TRIM1#

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-14240-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main73360-14240-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

main73360-14240-04iMA70198808-198908

DEEP BLUE,TRIM8#

main73360-14240-06iMA70..TWT198901-198908

BROWN,TRIM4#

main73360-14241-02iMA70199008-199305

DEEP RED,TRIM3#

main73360-14241-03iMA70199008-199305

SHADOW GRAY,TRIM1#

main73360-14241-04iMA70199008-199305

DEEP BLUE,TRIM8#

main73360-14241-06iMA70..USA199008-199108

BROWN,TRIM4#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-14130-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main73370-14130-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

main73370-14130-04iMA70198808-198908

DEEP BLUE,TRIM8#

main73370-14130-06iMA70198808-198901

BROWN,TRIM4#

main73370-14131-02iMA70199008-199305

DEEP RED,TRIM3#

main73370-14131-03iMA70199008-199305

SHADOW GRAY,TRIM1#

main73370-14131-04iMA70199008-199305

DEEP BLUE,TRIM8#

main73370-14131-06iMA70..USA199008-199108

BROWN,TRIM4#

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

main73380-14160-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main73380-14160-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main73380-14160-04iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

DEEP BLUE,TRIM8#

main73380-14160-06iMA70..TWT198901-198908

BROWN,TRIM4#

main73380-14161-02iMA70199008-199010

DEEP RED,TRIM3#

main73380-14161-03iMA70199008-199010

SHADOW GRAY,TRIM1#

main73380-14161-04iMA70199008-199010

DEEP BLUE,TRIM8#

main73380-14161-06iMA70..USA199008-199010

BROWN,TRIM4#

main73380-14162-02iMA70199010-199305

DEEP RED,TRIM3#

main73380-14162-03iMA70199010-199305

SHADOW GRAY,TRIM1#

main73380-14162-04iMA70199010-199305

DEEP BLUE,TRIM8#

main73380-14162-06iMA70..USA199010-199108

BROWN,TRIM4#

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73380-14160-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main73380-14160-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

main73380-14160-04iMA70198808-198908

DEEP BLUE,TRIM8#

main73380-14160-06iMA70198808-198901

BROWN,TRIM4#

main73380-14161-02iMA70199008-199010

DEEP RED,TRIM3#

main73380-14161-03iMA70199008-199010

SHADOW GRAY,TRIM1#

main73380-14161-04iMA70199008-199010

DEEP BLUE,TRIM8#

main73380-14161-06iMA70..USA199008-199010

BROWN,TRIM4#

main73380-14162-02iMA70199010-199305

DEEP RED,TRIM3#

main73380-14162-03iMA70199010-199305

SHADOW GRAY,TRIM1#

main73380-14162-04iMA70199010-199305

DEEP BLUE,TRIM8#

main73380-14162-06iMA70..USA199010-199108

BROWN,TRIM4#

73709BRACKET SUB-ASSY, TETHER ANCHOR

main73709-12010iMA70..CND198808-198908

9011908107

main90119-08107

9016740029

main90167-40029

9018904022

main90189-04022

9020507002

main90205-07002

9046706013

main90467-06013

9056008028

main90560-08028

9165160616

main91651-60616

9352054014

main93520-54014

9354054014

main93540-54014

26 parts on this diagram · 1 diagram in section
