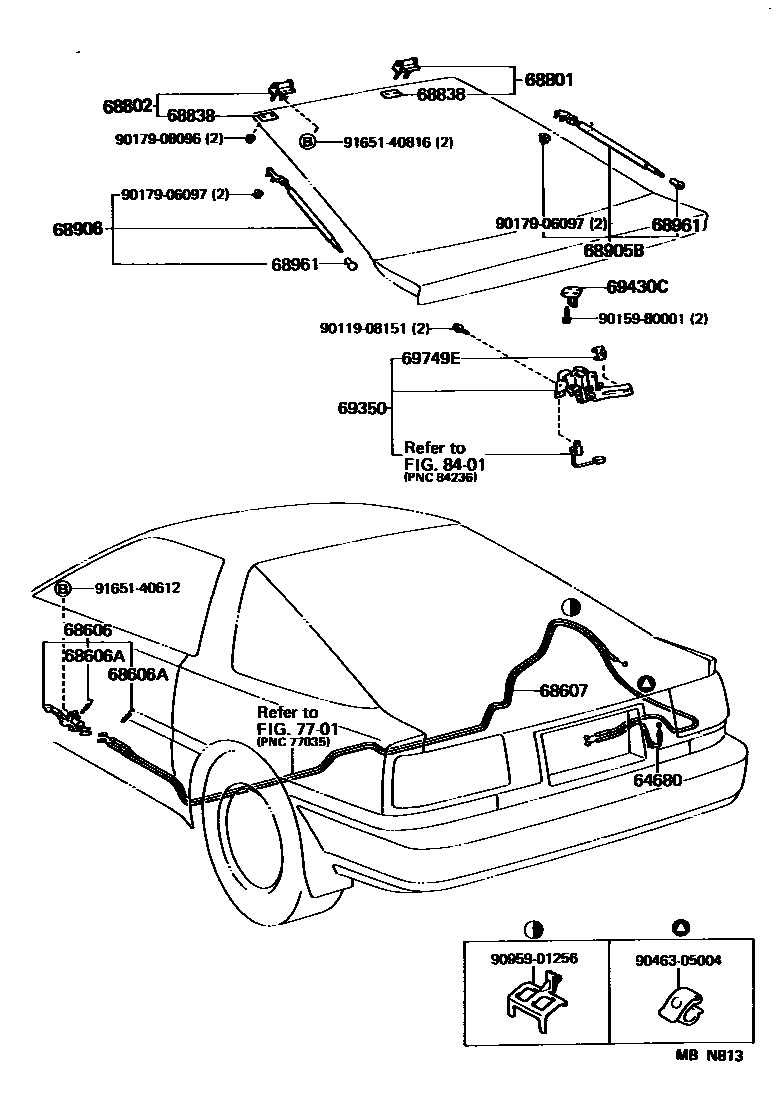

BACK DOOR LOCK & HANDLE

64680CABLE ASSY, BACK DOOR LOCK CONTROL

main64680-14050iMA70198808-198908

main64680-14051iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198911-199008

main64680-14090iMA70199101-199305

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-14060iMA70198808-198908

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09004×2iMA70198808-198908

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-14290iMA70198808-198908

main64607-14310iMA70199101-199305

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-14040iMA70198808-198810

main68801-14041iMA70198810-198908

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68801-14040iMA70198808-198810

main68801-14041iMA70198810-198908

68838PAD, BACK DOOR HINGE, NO.1

main68838-14031×2iMA70198808-198908

68905BSTAY SUB-ASSY, BACK DOOR, RH

main68905-19036iMA70..TWC198808-199305

main68905-19046iMA70..TWT198808-198908

68906STAY SUB-ASSY, BACK DOOR, LH

main68906-19016iMA70..TWC198808-199305

main68906-19026iMA70..TWT199008-199305

68961BOLT, BACK DOOR STAY

main68961-14030×2iMA70199008-199305

69350LOCK ASSY, BACK DOOR

main69350-14120iMA70198808-198908

main69350-14121iMA70199008-199305

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-14090iMA70198808-198908

69749ECLAMP, BACK DOOR LOCK LINK

main69749-12030iMA70198808-198908

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908151

main90119-08151

9015980001

main90159-80001

9017906097

main90179-06097

9017908096

main90179-08096

9046305004

main90463-05004

9095901256

main90959-01256

9165140612

main91651-40612

9165140816

main91651-40816

23 parts on this diagram · 1 diagram in section
