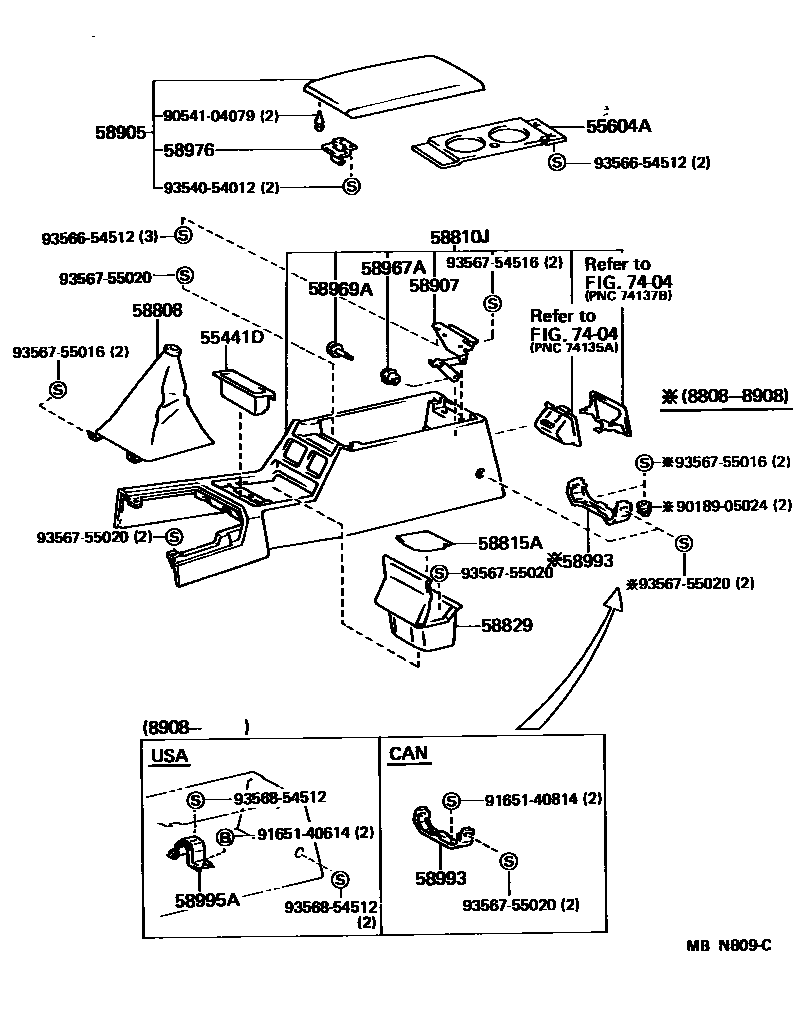

CONSOLE BOX & BRACKET

55441DBOX, INSTRUMENT PANEL COIN

main55441-14100-02iMA70198808-198908

MAROON,TRIM3#

main55441-14100-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

main55441-14100-04iMA70198808-198908

DEEP BLUE,TRIM8#

main55441-14100-06iMA70198808-198901

BROWN,TRIM4#

main55441-14101-02iMA70199008-199305

DEEP RED,TRIM3#

main55441-14101-03iMA70199008-199305

SHADOW GRAY,TRIM1#

main55441-14101-04iMA70199008-199305

DEEP BLUE,TRIM8#

main55441-14101-06iMA70..USA199008-199108

BROWN,TRIM4#

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-14010iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-14140-01iMA70..5F..USA199008-199108

BRACK,TRIM1#,3#,4#,8#

58810JBOX ASSY, CONSOLE

main58810-14400-02iMA70..TWC..CND;MA70..SPR..TWT..CND198908-199008

MAROON,TRIM3#

main58810-14400-03iMA70..TWC..CND;MA70..SPR..TWT..CND198908-199008

MEDIUM GRAY,TRIM1#

main58810-14400-04iMA70..CND199008-199108

DEEP BLUE,TRIM8#

main58810-14400-06iMA70198808-198901

BROWN,TRIM4#

main58810-14400-12iMA70..CND199008-199108

DEEP RED,TRIM3#

main58810-14400-13iMA70..CND199008-199108

SHADOW GRAY,TRIM1#

main58810-14410-02iMA70..USA198908-199008

MAROON,TRIM3#

main58810-14410-03iMA70..USA198908-199008

MEDIUM GRAY,TRIM1#

main58810-14410-04iMA70..CND199104-199108

W(LEATHER SEAT),DEEP BLUE,TRIM8#

main58810-14410-06iMA70..USA198908-199108

BROWN,TRIM4#

main58810-14410-12iMA70..CND199104-199108

W(LEATHER SEAT),DEEP RED,TRIM3#

main58810-14410-13iMA70..USA199008-199108

SHADOW GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-14040iMA70199008-199305

58829POCKET, CONSOLE BOX

main58806-14021-02iMA70..TWC..CND;MA70..SPR..TWT..CND198908-199008

MAROON,TRIM3#

main58806-14021-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

main58806-14021-04iMA70..CND199008-199108

DEEP BLUE,TRIM8#

main58806-14021-06iMA70198808-198901

BROWN,TRIM4#

main58806-14021-12iMA70..CND199008-199108

DEEP RED,TRIM3#

main58806-14021-13iMA70..CND199008-199108

SHADOW GRAY,TRIM1#

main58806-14030-02iMA70..USA198908-199008

MAROON,TRIM3#

main58806-14030-03iMA70..USA198908-199008

MEDIUM GRAY,TRIM1#

main58806-14030-04iMA70199108-199305

DEEP BLUE,TRIM8#

main58806-14030-06iMA70..USA198908-199108

BROWN,TRIM4#

main58806-14030-12iMA70..USA199008-199108

DEEP RED,TRIM3#

main58806-14030-13iMA70..USA199008-199108

SHADOW GRAY,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-14060-02iMA70198808-198812

MAROON,TRIM3#

main58905-14060-03iMA70198808-198812

MEDIUM GRAY,TRIM1#

main58905-14060-04iMA70198808-198812

DEEP BLUE,TRIM8#

main58905-14060-06iMA70198808-198812

BROWN,TRIM4#

main58905-14061-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main58905-14061-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main58905-14061-04iMA70198812-198908

DEEP BLUE,TRIM8#

main58905-14061-06iMA70198812-198901

BROWN,TRIM4#

main58905-14061-12iMA70199008-199305

DEEP RED,TRIM3#

main58905-14061-13iMA70199008-199305

SHADOW GRAY,TRIM1#

main58905-14070-02iMA70199104-199305

W(LEATHER SEAT),DEEP RED,TRIM3#

main58905-14070-03iMA70..USA;MA70..5F..CND;MA70..SPR..4FC..CND199008-199104

W(LEATHER SEAT),LIGHT GRAY,TRIM1#

main58905-14070-04iMA70..USA;MA70..5F..CND;MA70..SPR..4FC..CND199008-199104

W(LEATHER SEAT),DEEP BLUE,TRIM8#

main58905-14070-06iMA70..USA199008-199108

W(LEATHER SEAT),TAN,TRIM4#

main58905-14070-C1iMA70199108-199305

W(LEATHER SEAT),BLACK,TRIM1#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-14030iMA70..TWC..CND;MA70..SPR..TWT..CND198908-199008

58967ASPRING, CONSOLE DOOR STOPPER

main58967-14030iMA70198808-198908

58969ARETAINER, CONSOLE COMPARTMENT DOOR STOPPER

main58969-14010iMA70..TWC..CND;MA70..SPR..TWT..CND198908-199008

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-22020iMA70198808-198908

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58993-14010iMA70198808-198908

main58993-14030iMA70..TWC..CND;MA70..SPR..TWT..CND198908-199008

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-14010iMA70..USA198908-199104

7404

9018905024

main90189-05024

9054104079

main90541-04079

9165140614

main91651-40614

9165140814

main91651-40814

9354054012

main93540-54012

9356654512

main93566-54512

9356754516

main93567-54516

9356755016

main93567-55016

9356755020

main93567-55020

9356854512

main93568-54512

24 parts on this diagram · 1 diagram in section
