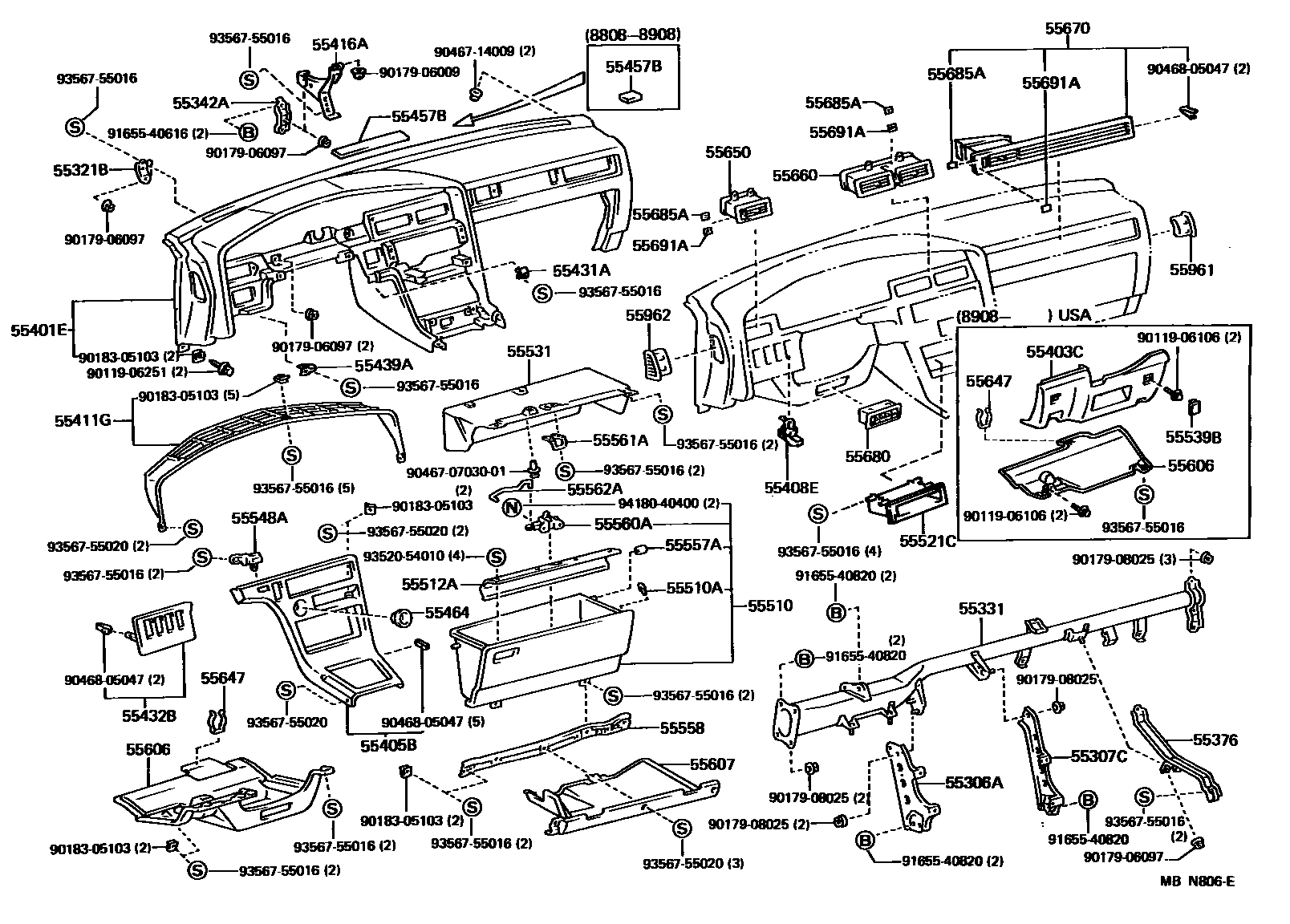

INSTRUMENT PANEL & GLOVE COMPARTMENT

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-14090iMA70198808-198908

main55306-14100iMA70..USA198908-199108

main55351-14130iMA70..TWC..CND;MA70..SPR..TWT..CND198908-199008

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-14140iMA70199008-199305

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-14060iMA70198808-198908

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-14050iMA70198808-198908

main55330-14051iMA70..TWC..CND;MA70..SPR..TWT..CND198908-199008

main55330-14060iMA70..USA198908-199108

55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2

main55342-14040iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-14040iMA70199008-199305

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-14490-02iMA70198808-198908

MAROON,TRIM3#

main55401-14490-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main55401-14490-04iMA70199008-199305

DEEP BLUE,TRIM8#

main55401-14490-06iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

BROWN,TRIM4#

main55401-14490-12iMA70199008-199305

DEEP RED,TRIM3#

main55401-14490-13iMA70199008-199305

SHADOW GRAY,TRIM1#

55403CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH

main55403-14040-02iMA70..USA198908-199008

MAROON,TRIM3#

main55403-14040-03iMA70..USA198908-199008

MEDIUM GRAY,TRIM1#

main55403-14040-04iMA70199108-199305

DEEP BLUE,TRIM8#

main55403-14040-06iMA70..USA198908-199108

BROWN,TRIM4#

main55403-14040-12iMA70..USA199008-199108

DEEP RED,TRIM3#

main55403-14040-13iMA70..USA199008-199108

SHADOW GRAY,TRIM1#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-14110iMA70198808-198908

55408EBOX SUB-ASSY, INSTRUMENT PANEL COIN

main55408-14090iMA70198808-198908

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-14540iMA70198808-198908

55416ARETAINER, METER HOOD, NO.1

main55416-14070iMA70199008-199305

55431APANEL, INSTRUMENT PANEL FINISH

main55437-14030iMA70..USA198908-199108

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-14240iMA70..CND199008-199108

main55432-14250iMA70..USA198908-199108

55439ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.3

main55439-14020iMA70..USA198908-199108

55457BSPACER, INSTRUMENT PANEL SAFETY PAD

main55355-14060×4iMA70198904-198908

main55457-22030×3iMA70198808-198904

55464BASE, CIGARETTE LIGHTER

main55477-24020iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-14170-02iMA70198808-198908

MAROON,TRIM3#

main55550-14170-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main55550-14170-04iMA70198808-198908

DEEP BLUE,TRIM8#

main55550-14170-06iMA70..USA199008-199108

BROWN,TRIM4#

main55550-14170-12iMA70199008-199305

DEEP RED,TRIM3#

main55550-14170-13iMA70199008-199305

SHADOW GRAY,TRIM1#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015×3iMA70198808-198908

55512APLATE, GLOVE COMPARTMENT

main55512-14070iMA70198808-198908

55521CCOVER, STEREO OPENING

main55521-16010iMA70199008-199108

55531PANEL, GLOVE COMPARTMENT

main55531-14110iMA70198808-198908

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55548-14050-02×2iMA70..USA198908-199008

MAROON,TRIM3#

main55548-14050-03×2iMA70..USA198908-199008

MEDIUM GRAY,TRIM1#

main55548-14050-04×2iMA70199108-199305

DEEP BLUE,TRIM8#

main55548-14050-06×2iMA70..USA198908-199108

BROWN,TRIM4#

main55548-14050-12×2iMA70199108-199305

DEEP RED,TRIM3#

main55548-14050-13×2iMA70..USA199008-199108

SHADOW GRAY,TRIM1#

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-14040iMA70..USA198808-199305

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-16010×2iMA70198808-198908

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-14031iMA70198808-198908

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-14040iMA70198808-198908

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-14060iMA70198808-198908

55562ALINK, GLOVE COMPARTMENT DOOR LOCK

main55562-14040iMA70198808-198908

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-14070-02iMA70198808-198908

MAROON,TRIM3#

main55606-14070-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

main55606-14070-04iMA70..TWC..CND;MA70..SPR..TWT..CND198908-199008

DEEP BLUE,TRIM8#

main55606-14070-06iMA70..TWT198901-198908

BROWN,TRIM4#

main55606-14070-12iMA70..CND199008-199108

DEEP RED,TRIM3#

main55606-14070-13iMA70..CND199008-199108

SHADOW GRAY,TRIM1#

main55606-14080-02iMA70..USA198908-199008

MAROON,TRIM3#

main55606-14080-03iMA70..USA198908-199008

MEDIUM GRAY,TRIM1#

main55606-14080-04iMA70..USA198908-199108

DEEP BLUE,TRIM8#

main55606-14080-06iMA70..USA198908-199108

BROWN,TRIM4#

main55606-14080-12iMA70..USA199008-199108

DEEP RED,TRIM3#

main55606-14080-13iMA70..USA199008-199108

SHADOW GRAY,TRIM1#

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-14100-02iMA70198808-198908

MAROON,TRIM3#

main55607-14100-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

main55607-14100-04iMA70199008-199305

DEEP BLUE,TRIM8#

main55607-14100-06iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

BROWN,TRIM4#

main55607-14100-12iMA70199008-199305

DEEP RED,TRIM3#

main55607-14100-13iMA70199008-199305

SHADOW GRAY,TRIM1#

55647CLAMP, INSTRUMENT PANEL UNDER COVER

main55647-22010iMA70198808-198908

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-14120iMA70198808-198908

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-14120iMA70198808-198908

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-14080-02iMA70198808-198908

MAROON,TRIM3#

main55670-14080-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main55670-14080-04iMA70198808-198908

DEEP BLUE,TRIM8#

main55670-14080-06iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

BROWN,TRIM4#

main55670-14080-12iMA70199008-199305

DEEP RED,TRIM3#

main55670-14080-13iMA70199008-199305

SHADOW GRAY,TRIM1#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-04iMA70199008-199305

DEEP BLUE,TRIM8#

main55680-14030-13iMA70199008-199305

SHADOW GRAY,TRIM1#

main55680-14030-52iMA70199008-199305

DEEP RED,TRIM3#

main55680-14030-B0iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main55680-14030-D0iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main55680-14030-E0iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

BROWN,TRIM4#

55685APLATE, AIR DAMPER CONTROL NAME, NO.4

main55685-14010iMA70198808-198908

55691APLATE, AIR DAMPER CONTROL NAME, NO.1

main55691-14010iMA70198808-198908

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-14070-02iMA70198808-198908

MAROON,TRIM3#

main55961-14070-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main55961-14070-04iMA70198808-198908

DEEP BLUE,TRIM8#

main55961-14070-06iMA70..USA199008-199108

BROWN,TRIM4#

main55961-14070-12iMA70199008-199305

DEEP RED,TRIM3#

main55961-14070-13iMA70199008-199305

SHADOW GRAY,TRIM1#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-14050-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main55962-14050-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main55962-14050-04iMA70198808-198908

DEEP BLUE,TRIM8#

main55962-14050-06iMA70..TWT198901-198908

BROWN,TRIM4#

main55962-14050-12iMA70199008-199305

DEEP RED,TRIM3#

main55962-14050-13iMA70199008-199305

SHADOW GRAY,TRIM1#

9011906106

main90119-06106

9011906251

main90119-06251

9017906009

main90179-06009

9017906097

main90179-06097

9017908025

main90179-08025

9018305103

main90183-05103

904670703001

main90467-0703001

9046714009

main90467-14009

9046805047

main90468-05047

9165540616

main91655-40616

9165540820

main91655-40820

9352054010

main93520-54010

9356755016

main93567-55016

9356755020

main93567-55020

9418040400

main94180-40400

55 parts on this diagram · 1 diagram in section
