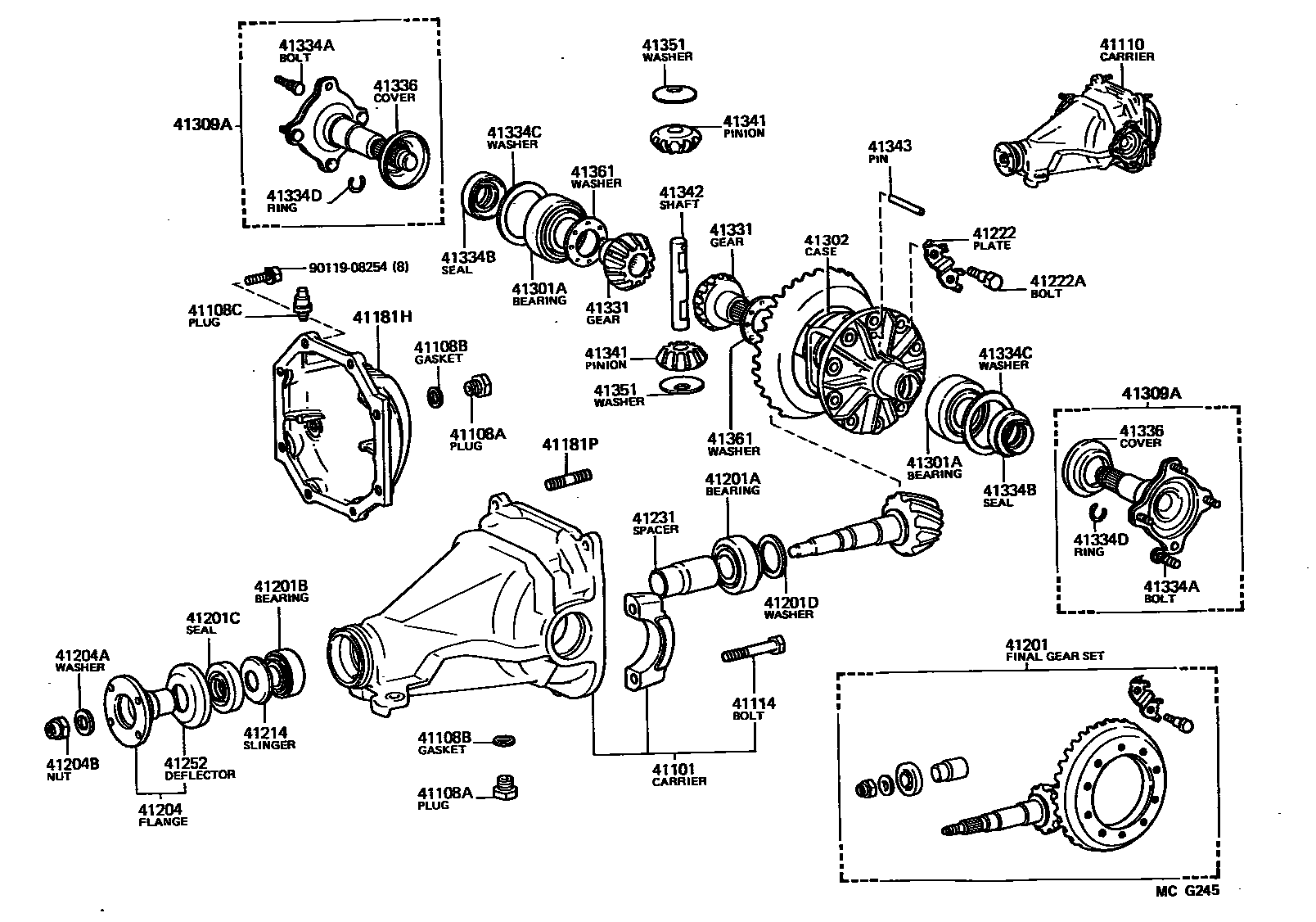

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41108APLUG (FOR REAR DIFFERENTIAL CARRIER COVER)
FILLER
DRAIN
41108BGASKET (FOR REAR DIFFERENTIAL CARRIER COVER)
41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:11=3.727
*FGR=43:10=4.300,W(LSD)
*FGR=43:10=4.300
*FGR=43:10=4.300
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41181HCOVER, REAR DIFFERENTIAL CARRIER
41181PBOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING)
L=71.5
L=81.5
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:11=3.727
*FGR=43:10=4.300
*FGR=43:10=4.300,W(LSD)
*FGR=43:10=4.300
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
OD=47,T=1.70
OD=47,T=1.73
OD=47,T=1.76
OD=47,T=1.79
OD=47,T=1.82
OD=47,T=1.85
OD=47,T=1.88
OD=47,T=1.91
OD=47,T=1.94
OD=47,T=1.97
OD=47,T=2.00
OD=47,T=2.03
OD=47,T=2.06
OD=47,T=2.09
OD=47,T=2.12
OD=47,T=2.15
OD=47,T=2.18
OD=47,T=2.21
OD=47,T=2.24,MARK 01
OD=47,T=2.27,MARK 02
OD=47,T=2.30,MARK 03
OD=47,T=2.33,MARK 04
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
OD=37
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
W(LSD)
41309ASHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR
W(LSD)
41331GEAR, REAR DIFFERENTIAL SIDE
main41331-24020iMA70..TWC..CND;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305
W(LSD)
41334ABOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=2.58,MARK 01
T=2.61,MARK 02
T=2.64,MARK 03
T=2.67,MARK 04
T=2.70,MARK 05
T=2.73,MARK 06
T=2.76,MARK 07
T=2.79,MARK 08
T=2.82,MARK 09
T=2.85,MARK 10
T=2.88,MARK 11
T=2.91,MARK 12
T=2.94,MARK 13
T=2.97,MARK 14
T=3.00,MARK 15
T=3.03,MARK 16
T=3.06,MARK 17
T=3.09,MARK 18
T=3.12,MARK 19
T=3.15,MARK 20
T=3.18,MARK 21
T=3.21,MARK 22
T=3.24,MARK 23
T=3.27,MARK 24
T=3.30,MARK 25
T=3.33,MARK 26
T=3.36,MARK 27
T=3.39,MARK 28
T=3.42,MARK 29
T=3.45,MARK 30
T=3.48,MARK 31
41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=2.8
41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41341PINION, REAR DIFFERENTIAL
W(LSD)
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
main41351-30060iMA70..TWC..CND;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305
W(LSD)
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.6
9011908254
main90119-08254
36 parts on this diagram · 2 diagrams in section
