TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

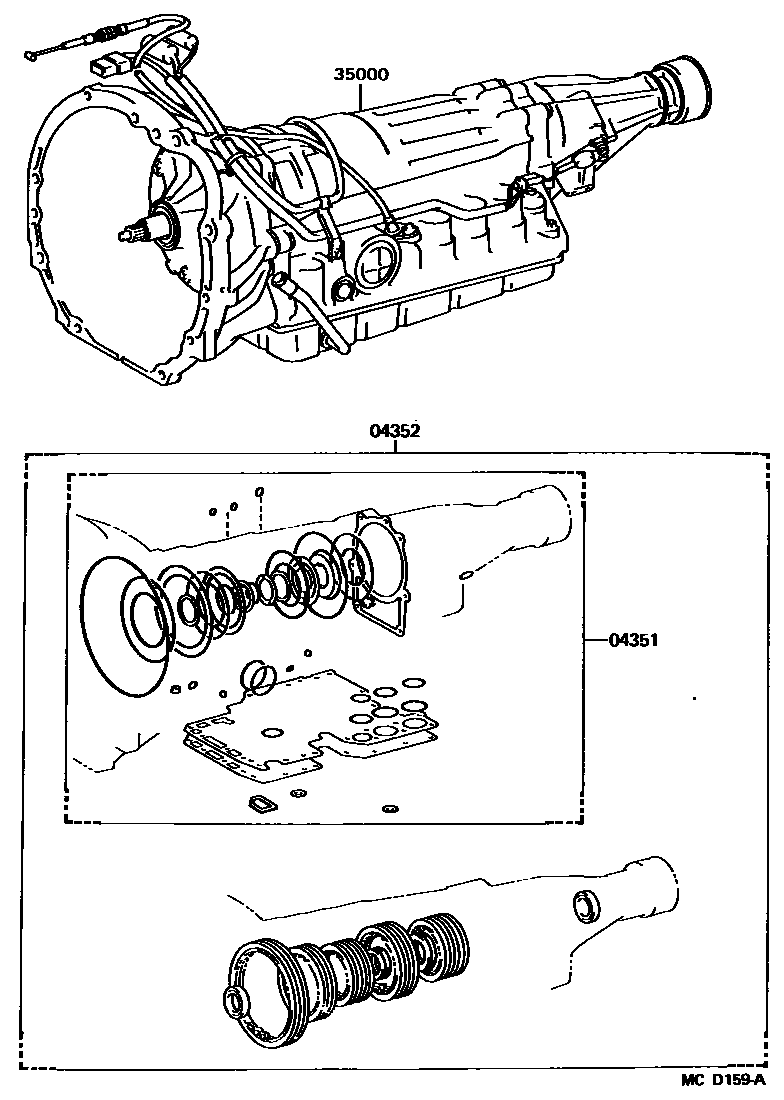

Parts diagram

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-30093i198808-199305

04352KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04352-14172i198808-198910

35000TRANSMISSION ASSY, AUTOMATIC

main35000-1B110i198808-199305

main35000-1B120i198808-199305

W(*66)

main35000-1B200i199108-199305

main35000-1B210i199108-199305

W(*66)

main35000-24174i198808-199108

main35000-24184i198808-199108

W(*66)

3 parts on this diagram · 1 diagram in section
