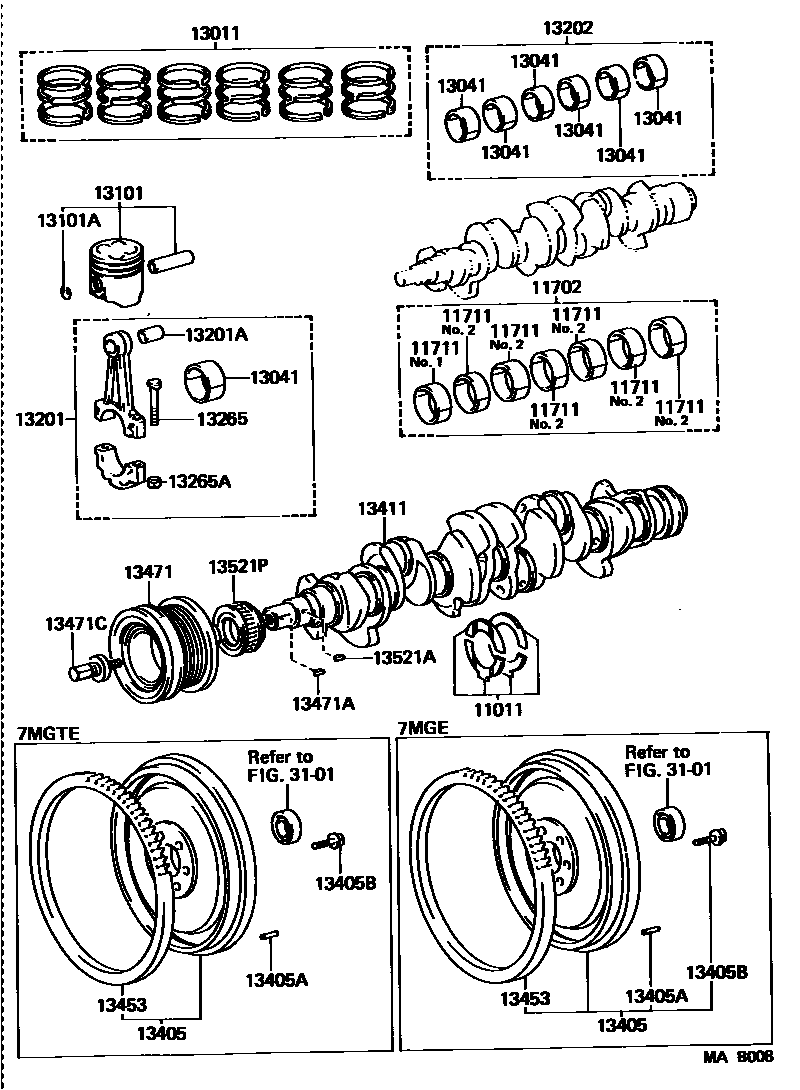

CRANKSHAFT & PISTON

11011WASHER SET, CRANKSHAFT THRUST

main11011-43010i7MG#..MA70198808-198908

STD

main11012-43010i7MG#..MA70198808-198908

O/S 0.125

11702BEARING SET, CRANKSHAFT

main11704-43010i7MG#..MA70198808-198908

U/S 0.25

11711BEARING, CRANKSHAFT

main11071-43010-01i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008

MARK 1,NO.1

main11071-43010-02i7MG#..MA70199008-199305

MARK 2,NO.1

main11071-43010-03i7MG#..MA70199008-199305

MARK 3,NO.1

main11071-43010-04i7MG#..MA70199008-199305

MARK 4,NO.1

main11071-43010-05i7MG#..MA70198808-198908

MARK 5,NO.1

main11701-43010-01×6i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008

MARK 1,NO.2

main11701-43010-02×6i7MG#..MA70199008-199305

MARK 2,NO.2

main11701-43010-03×6i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008

MARK 3,NO.2

main11701-43010-04×6i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008

MARK 4,NO.2

main11701-43010-05×6i7MG#..MA70198808-198908

MARK 5,NO.2

13011RING SET, PISTON

main13011-42010i7MGTE..MA70198808-198908

STD

main13011-42011i7MGTE..MA70199008-199305

STD

main13011-42040i7MGE..MA70198808-199010

STD

main13011-42060i7MGE..MA70199010-199305

STD

main13013-42011i7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008

O/S 0.50

main13013-42012i7MGTE..MA70199302-199305

O/S 0.50

main13013-42040i7MGE..MA70198808-199010

O/S 0.50

main13013-42060i7MGE..MA70199010-199305

O/S 0.50

13041BEARING, CONNECTING ROD

main13041-42010-01×6i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008

MARK 1

main13041-42010-02×6i7MG#..MA70199008-199305

MARK 2

main13041-42010-03×6i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008

MARK 3

main13041-42010-04×6i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008

MARK 4

main13041-42010-05×6i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008

MARK 5

13101PISTON SUB-ASSY, W/PIN

main13101-42070-00×6i7MGE..MA70198808-199305

STD,MARK 0

main13101-42070-01×6i7MGE..MA70198808-199305

STD,MARK 1

main13101-42070-02×6i7MGE..MA70198808-199305

STD,MARK 2

main13101-42070-03×6i7MGE..MA70198808-199305

STD,MARK 3

main13101-42070-04×6i7MGE..MA70198808-199305

STD,MARK 4

main13101-42080-00×6i7MGTE..MA70199008-199305

STD,MARK 0

main13101-42080-01×6i7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008

STD,MARK 1

main13101-42080-02×6i7MGTE..MA70199008-199305

STD,MARK 2

main13101-42080-03×6i7MGTE..MA70198808-198908

STD,MARK 3

main13101-42080-04×6i7MGTE..MA70199008-199305

STD,MARK 4

main13103-42070×6i7MGE..MA70198808-199305

O/S 0.50

main13103-42080×6i7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008

O/S 0.50

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-25001×12i7MG#..MA70198808-198908

13201ROD SUB-ASSY, CONNECTING

main13201-49045×6i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73066×12i7MG#..MA70198808-198908

13202BEARING SET, CONNECTING ROD

main13204-42010i7MG#..MA70198808-198908

U/S 0.25

13265BOLT, CONNECTING ROD

main13265-42010×12i7MG#..MA70198808-198908

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90179-10090×12i7MG#..MA70198808-198908

13405FLYWHEEL SUB-ASSY

main13405-42010i7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008

main13405-49175i7MGE..MA70..5F198808-199305

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054×3i7MGE..MA70..5F;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008

L=23,OD=8

13405BBOLT, FLYWHEEL SETTING

main90105-10042×6i7MG#..MA70..5F199008-199305

13411CRANKSHAFT

main13411-42030i7MG#..MA70198808-198908

main13411-42040i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008

13453GEAR, FLYWHEEL RING

main13453-20010i7MG#..MA70..5F198808-198908

13471PULLEY, CRANKSHAFT

main13407-42030i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05003i7MG#..MA70198808-198908

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-18003i7MG#..MA70198808-198908

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05003i7MG#..MA70198808-198908

13521PPULLEY, CRANKSHAFT TIMING

main13521-42020i7MG#..MA70198808-198908

3101CLUTCH & RELEASE FORK

→ Go to FIG 31-01

23 parts on this diagram · 1 diagram in section
