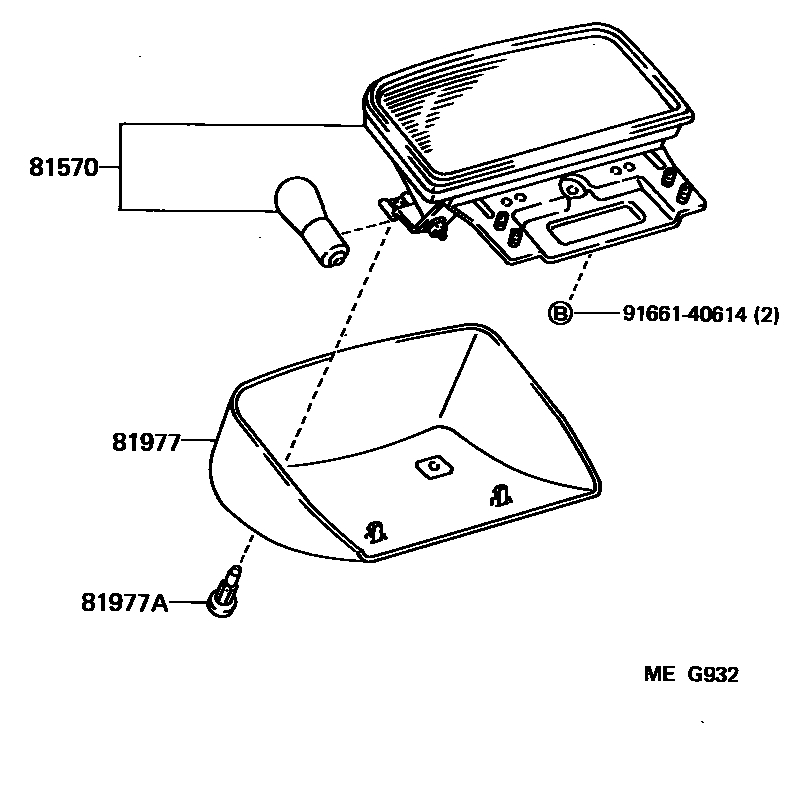

CENTER STOP LAMP
81570LAMP ASSY, CENTER STOP
BLACK-M,BLACK METALLIC,204
RED MICA,RED MICA,3H1
SILVER-M,AMETHYST SILVER M,920
BLUE-M,LIGHT BLUE METALLIC,8D8
BEIGE-M,BEIGE,27A
BROWN-M,MEDIUM BROWN M,4H1
WHITE PERAL MICA,WHITE PEARL MICA,042
BLUE MICA,BLUE MICA,8E3 ,24D
WHITE,SUP WHITE,040
BLACK-M,BLACK METALLIC,204
RED MICA,RED MICA,3H1
SILVER-M,AMETHYST SILVER.M,920
BLUE-M,LIGHT BLUE METALLIC,8D8
WHITE,SUPER WHITE,040
SUPER RED,SUPER RED,3E5
GRAY-M,GRAY METALLIC,167
BLUE MICA,BLUE MICA,8E3 ,24D
WHITE PERAL MICA,WHITE PEARL MICA,042
81977COVER, CENTER STOP LAMP
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
81977ACLIP (FOR CENTER STOP LAMP)
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
9166140614
main91661-40614
4 parts on this diagram · 3 diagrams in section
