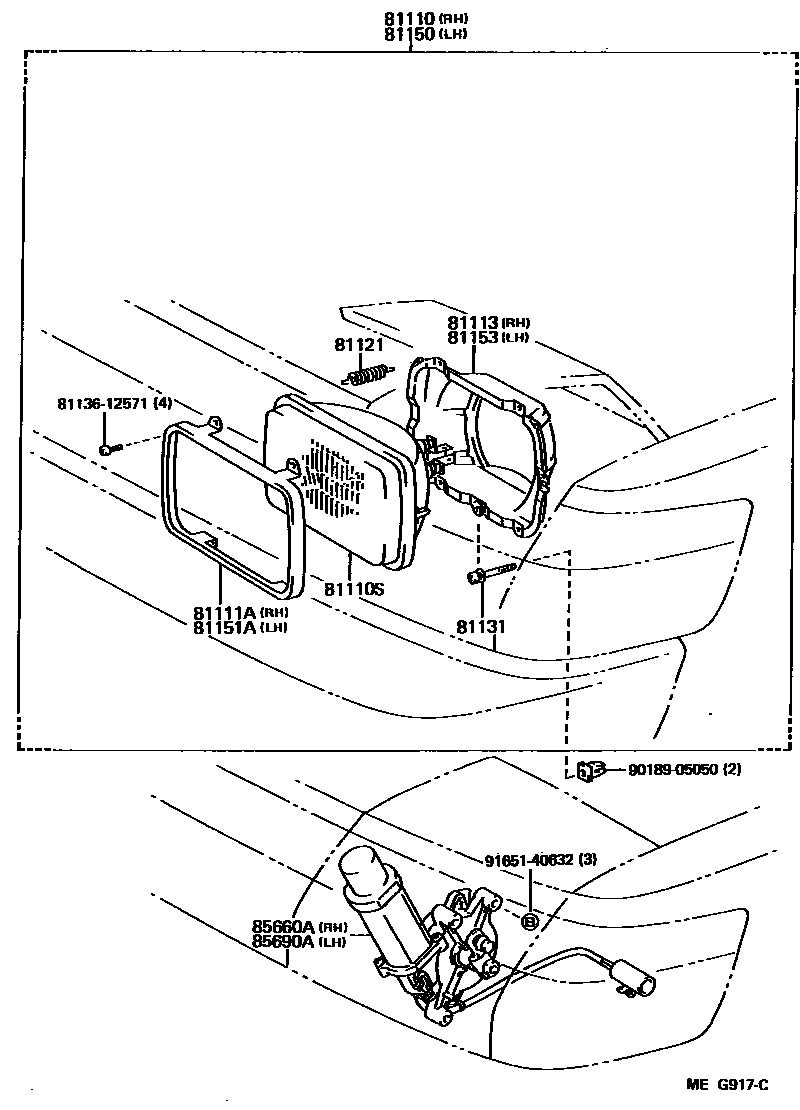

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-17030iMA70198601-198708

main81110-1B110iMA70198708-198808

81110SSEALED BEAM UNIT, NO.1

main90981-04020×2iMA70198601-198808

12V 65/35W,*HAL,*WB,12V 65/35W,HALOGEN

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-17010iMA70198601-198808

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-17010iMA70198601-198808

81121SPRING, HEADLAMP TENSION

main81121-17010×2iMA70198601-198708

main90075-25501×2iMA70198708-198808

81131SCREW, HEADLAMP ADJUSTING

main81131-17010×2iMA70198601-198808

81150HEADLAMP ASSY, LH

main81150-17030iMA70198601-198708

main81150-1B110iMA70198708-198808

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-17010iMA70198601-198808

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-17010iMA70198601-198808

85660AMOTOR ASSY, LIGHT RETRACTOR, RH

main85660-14040iMA70198601-198808

85690AMOTOR ASSY, LIGHT RETRACTOR, LH

main85690-14040iMA70198601-198808

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

9018905050

main90189-05050

9165140632

main91651-40632

14 parts on this diagram · 1 diagram in section
