EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

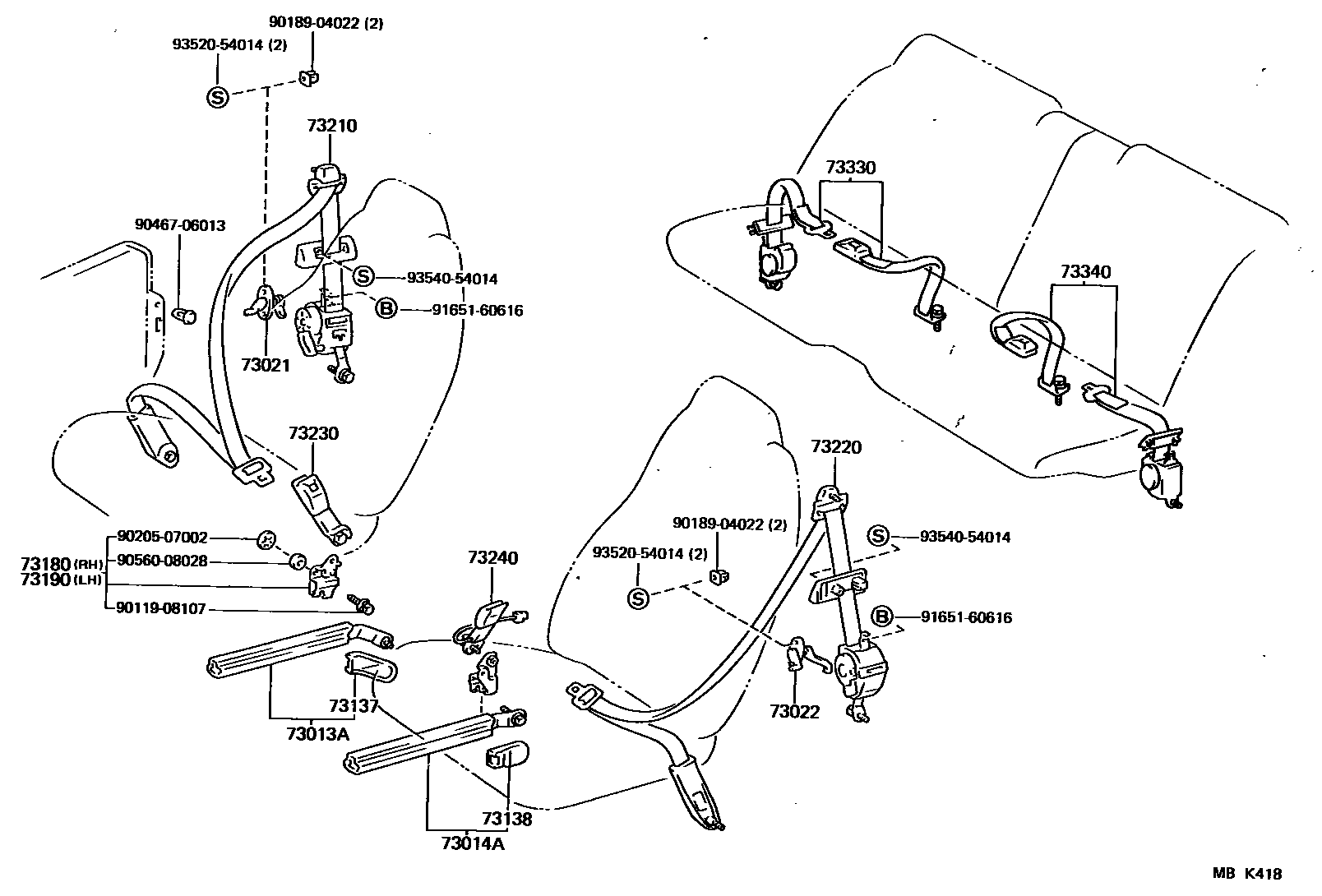

Parts diagram
73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
main73013-14030-02i198601-198808
MAROON,MAROON,TRIM3#
main73013-14030-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73013-14030-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73013-14030-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
main73014-14030-02i198601-198808
MAROON,MAROON,TRIM3#
main73014-14030-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73014-14030-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73014-14030-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
73021LEVER SUB-ASSY, SEAT BELT COMFORT, RH
main73021-14030i198601-198804
73022LEVER SUB-ASSY, SEAT BELT COMFORT, LH
main73022-14030i198601-198804
main73022-14031i198804-198808
73137CAP, FRONT SEAT BELT INNER ANCHOR, RH
main73137-14030-02i198601-198808
MAROON,MAROON,TRIM3#
main73137-14030-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73137-14030-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73137-14030-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
73138CAP, FRONT SEAT BELT INNER ANCHOR, LH
main73138-14030-02i198601-198808
MAROON,MAROON,TRIM3#
main73138-14030-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73138-14030-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73138-14030-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
main73011-14020i198601-198808
73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
main73012-14020i198601-198808
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-14440-02i198601-198708
MAROON,MAROON,TRIM3#
main73210-14440-03i198601-198708
GRAY,MEDIUM GRAY,TRIM1#
main73210-14440-04i198601-198708
BLUE,DEEP BLUE,TRIM8#
main73210-14440-05i198601-198708
BEIGE,DARK BEIGE,TRIM4#
main73210-14441-02i198708-198808
MAROON,MAROON,TRIM3#
main73210-14441-03i198708-198808
GRAY,MIDIUM GRAY,TRIM1#
main73210-14441-04i198708-198808
BLUE,DEEP BLUE,TRIM8#
main73210-14441-05i198708-198808
BEIGE,DARK BEIGE,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-14380-02i198601-198708
MAROON,MAROON,TRIM3#
main73220-14380-03i198601-198708
GRAY,MEDIUM GRAY,TRIM1#
main73220-14380-04i198601-198708
BLUE,DEEP BLUE,TRIM8#
main73220-14380-05i198601-198708
BEIGE,DARK BEIGE,TRIM4#
main73220-14381-02i198708-198808
MAROON,MAROON,TRIM3#
main73220-14381-03i198708-198808
GRAY,MIDIUM GRAY,TRIM1#
main73220-14381-04i198708-198808
BLUE,DEEP BLUE,TRIM8#
main73220-14381-05i198708-198808
BEIGE,DARK BEIGE,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-14410-02i198601-198808
MAROON,MAROON,TRIM3#
main73230-14410-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73230-14410-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73230-14410-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-14121-02i198601-198808
MAROON,MAROON,TRIM3#
main73240-14121-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73240-14121-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73240-14121-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
73330BELT ASSY, REAR SEAT LAP TYPE, RH
main73330-14200-02i198601-198808
MAROON,MAROON,TRIM3#
main73330-14200-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73330-14200-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73330-14200-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
73340BELT ASSY, REAR SEAT LAP TYPE, LH
main73330-14200-02i198601-198711
MAROON,MAROON,TRIM3#
main73330-14200-03i198601-198711
GRAY,MEDIUM GRAY,TRIM1#
main73330-14200-04i198601-198711
BLUE,DEEP BLUE,TRIM8#
main73330-14200-05i198601-198711
BEIGE,DARK BEIGE,TRIM4#
main73330-14210-02i198711-198808
MAROON,MAROON,TRIM3#
main73330-14210-03i198711-198808
GRAY,MEDIUM GRAY,TRIM1#
main73330-14210-04i198711-198808
BLUE,DEEP BLUE,TRIM8#
main73330-14210-05i198711-198808
BEIGE,DARK BEIGE,TRIM4#
9011908107
main90119-08107
9018904022
main90189-04022
9020507002
main90205-07002
9046706013
main90467-06013
9056008028
main90560-08028
9165160616
main91651-60616
9352054014
main93520-54014
9354054014
main93540-54014

22 parts on this diagram · 1 diagram in section
