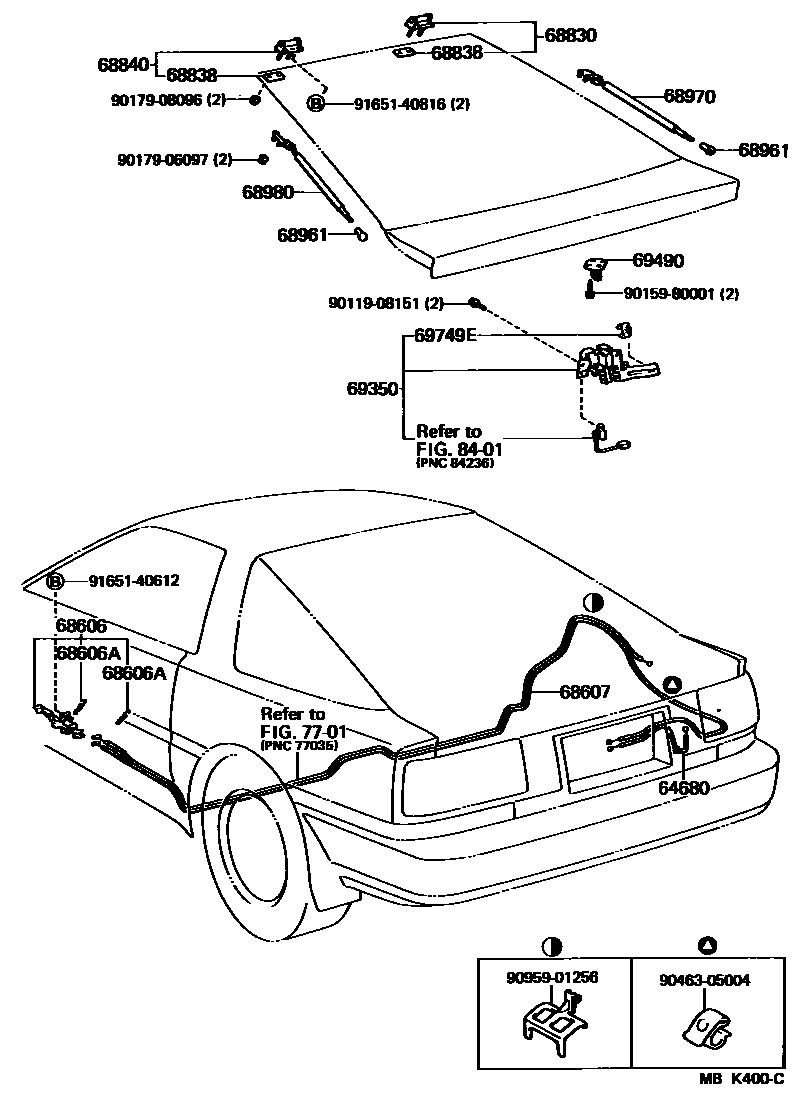

BACK DOOR LOCK & HANDLE

64680CABLE ASSY, BACK DOOR LOCK CONTROL

main64680-14030iMA70198601-198808

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-14060iMA70198601-198808

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09004×2iMA70198601-198808

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-14220iMA70198601-198808

68830HINGE ASSY, BACK DOOR, RH

main68801-14040iMA70198601-198808

68838PAD, BACK DOOR HINGE, NO.1

main68838-14030×2iMA70198601-198808

68840HINGE ASSY, BACK DOOR, LH

main68801-14040iMA70198601-198808

68961BOLT, BACK DOOR STAY

main68961-14030×2iMA70198708-198808

main68961-20060×2iMA70198601-198708

68970STAY ASSY, BACK DOOR, RH

main68905-14030iMA70..TWC198601-198708

main68905-14031iMA70..TWC198708-198808

main68905-14040iMA70..TWT198608-198708

main68905-14041iMA70..TWT198708-198808

68980STAY ASSY, BACK DOOR

main68906-14010iMA70..TWC198601-198708

main68906-14011iMA70..TWC198708-198808

main68906-14020iMA70..TWT198608-198708

main68906-14021iMA70..TWT198708-198808

69350LOCK ASSY, BACK DOOR

main69350-14120iMA70198601-198808

69490STRIKER ASSY, BACK DOOR LOCK

main69430-14090iMA70198601-198808

69749ECLAMP, BACK DOOR LOCK LINK

main69749-12030iMA70198601-198808

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908151

main90119-08151

9015980001

main90159-80001

9017906097

main90179-06097

9017908096

main90179-08096

9046305004

main90463-05004

9095901256

main90959-01256

9165140612

main91651-40612

9165140816

main91651-40816

23 parts on this diagram · 1 diagram in section
