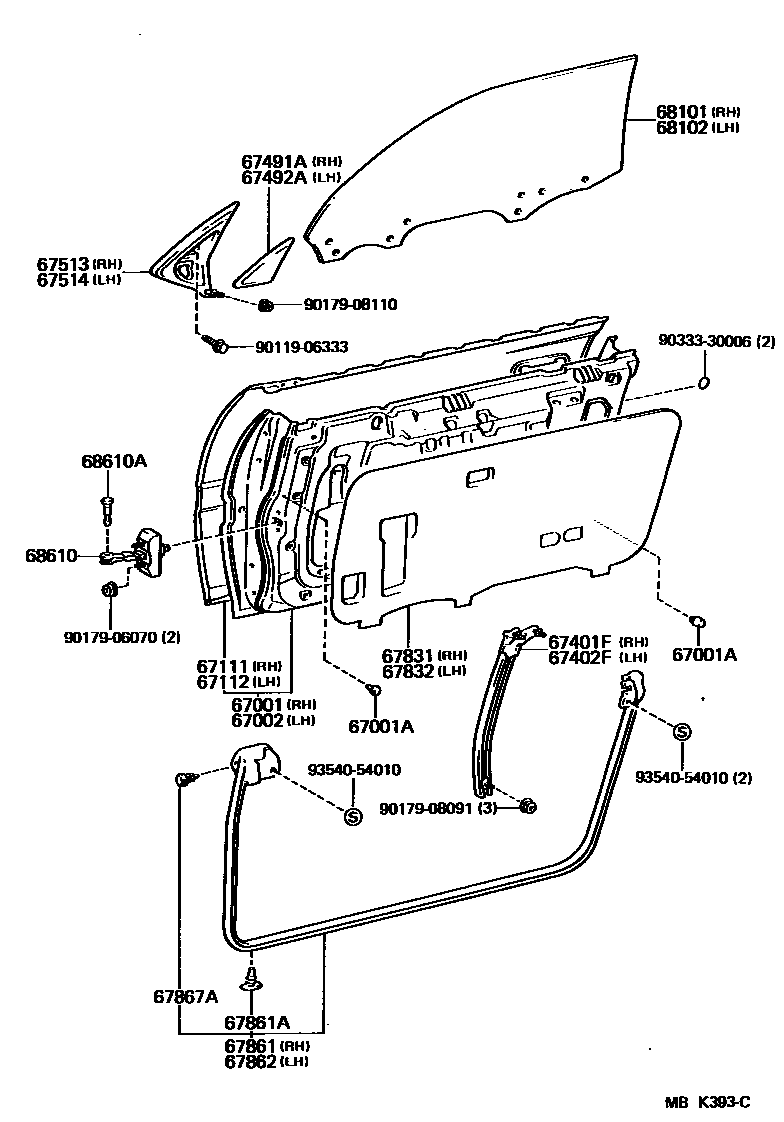

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
SIDE IMPACT BEAM
INNER PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67513BRACKET, FRONT DOOR MIRROR, RH
67514BRACKET, FRONT DOOR MIRROR, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
67862WEATHERSTRIP, FRONT DOOR, LH
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=5.0,*TT,T=5.0
*TT,T=5.0,BRONZE,*TT,T=5.0,BRONZE
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=5.0,*TT,T=5.0
*TT,T=5.0,BRONZE,*TT,T=5.0,BRONZE
68610APIN(FOR FRONT DOOR CHECK)
9011906333
main90119-06333
9017906070
main90179-06070
9017908091
main90179-08091
9017908110
main90179-08110
9033330006
main90333-30006
9354054010
main93540-54010
27 parts on this diagram · 2 diagrams in section
