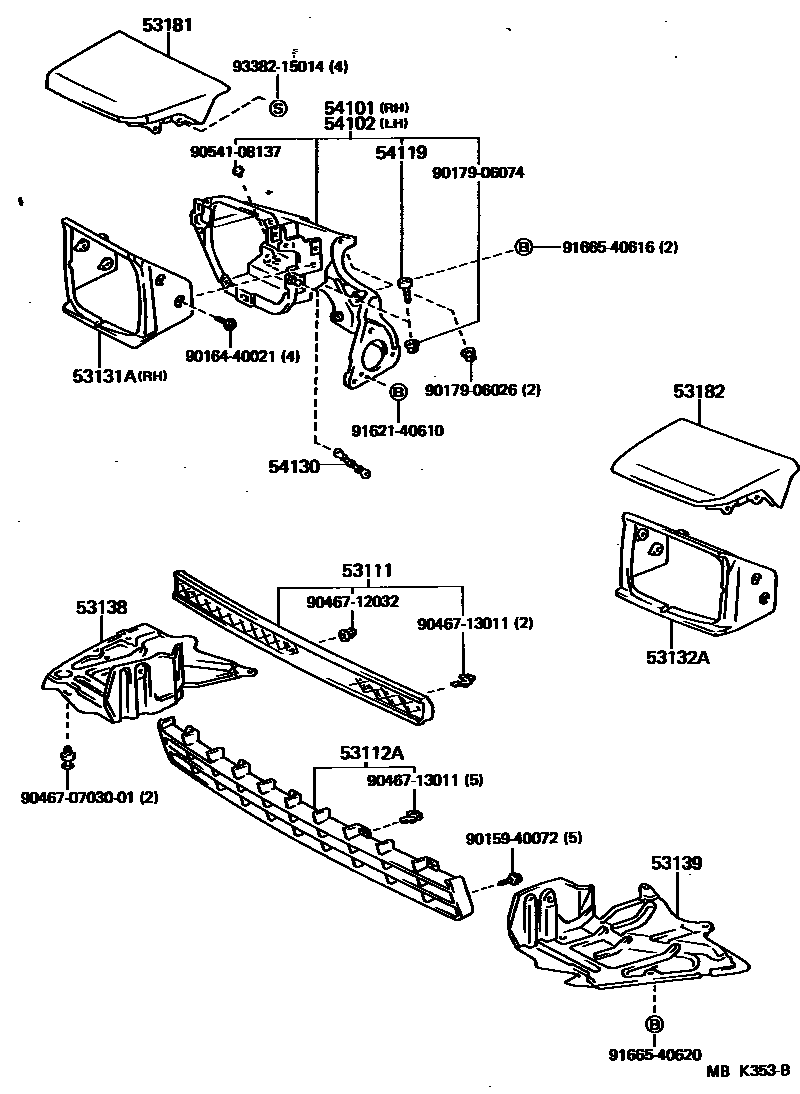

RADIATOR GRILLE

53111GRILLE, RADIATOR

main53111-14390iMA70198601-198808

53112AGRILLE, RADIATOR, LOWER

main53112-14050iMA70198601-198808

53131ADOOR, HEADLAMP, RH

main53131-14340iMA70198601-198808

53132ADOOR, HEADLAMP, LH

main53132-14340iMA70198601-198808

53138PROTECTOR, HEADLAMP DOOR, RH

main53138-14090iMA70..TWT198608-198808

main53138-14100iMA70..TWC198601-198808

53139PROTECTOR, HEADLAMP DOOR, LH

main53139-14130iMA70198601-198608

main53139-14131iMA70198608-198808

53181COVER, HEADLAMP, RH

main53181-14040iMA70198601-198808

53182COVER, HEADLAMP, LH

main53182-14040iMA70198601-198808

54101BRACKET SUB-ASSY, RETRACTABLE HEADLAMP, RH

main54110-14040iMA70198601-198808

54102BRACKET SUB-ASSY, RETRACTABLE HEADLAMP, LH

main54120-14040iMA70198601-198808

54119STOP, RETRACTABLE HEADLAMP LINK

main54119-14030×2iMA70198601-198808

54130ROD ASSY, RETRACTABLE HEADLAMP

main54130-14030×2iMA70198601-198801

main54130-14040×2iMA70198801-198808

9015940072

main90159-40072

9016440021

main90164-40021

9017906026

main90179-06026

9017906074

main90179-06074

904670703001

main90467-0703001

9046712032

main90467-12032

9046713011

main90467-13011

9054108137

main90541-08137

9162140610

main91621-40610

9166540616

main91665-40616

9166540620

main91665-40620

9338215014

main93382-15014

24 parts on this diagram · 1 diagram in section
