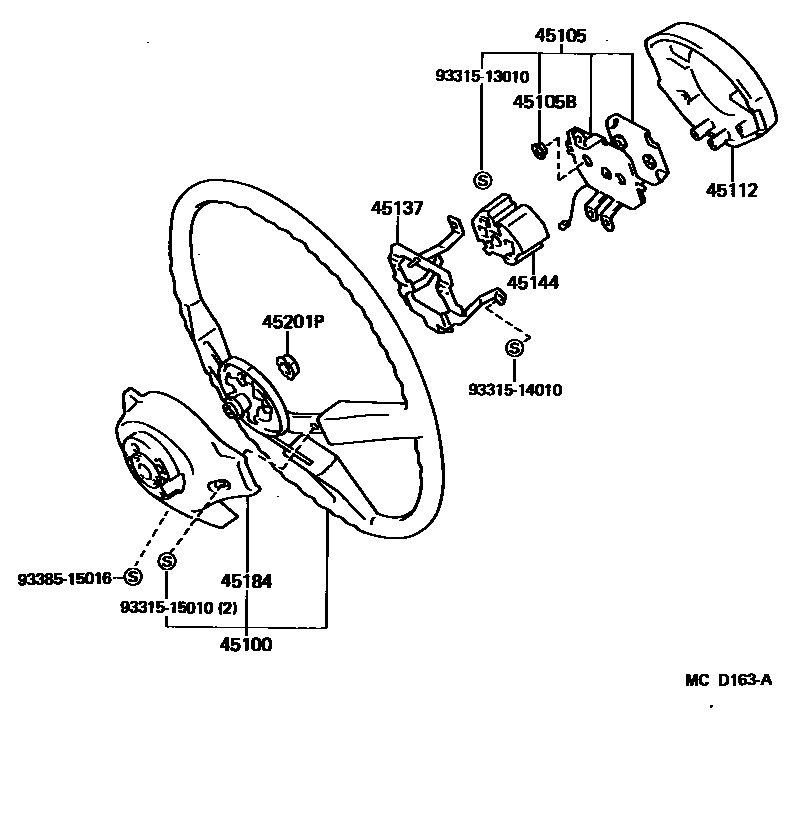

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-14430-02iMA70198601-198808

MAROON,MAROON,TRIM3#

main45100-14430-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main45100-14430-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

main45100-14430-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-14090iMA70198601-198808

45105BSPACER(FOR HORN BUTTON CONTACT PLATE)

main90561-02001×2iMA70198601-198808

45112PAD, STEERING WHEEL

main45112-14130-02iMA70198601-198808

MAROON,MAROON,TRIM3#

main45112-14130-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main45112-14130-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

main45112-14130-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

45137PLATE, HORN BUTTON STOP

main45106-14010iMA70198601-198808

45144PAD, ENERGY ABSORBING

main45144-14010iMA70198601-198808

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-14100-02iMA70198601-198808

MAROON,MAROON,TRIM3#

main45184-14100-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main45184-14100-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

main45184-14100-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

45201PNUT, STEERING WHEEL SET

main90179-12086iMA70198601-198808

9331513010

main93315-13010

9331514010

main93315-14010

9331515010

main93315-15010

9338515016

main93385-15016

12 parts on this diagram · 1 diagram in section
