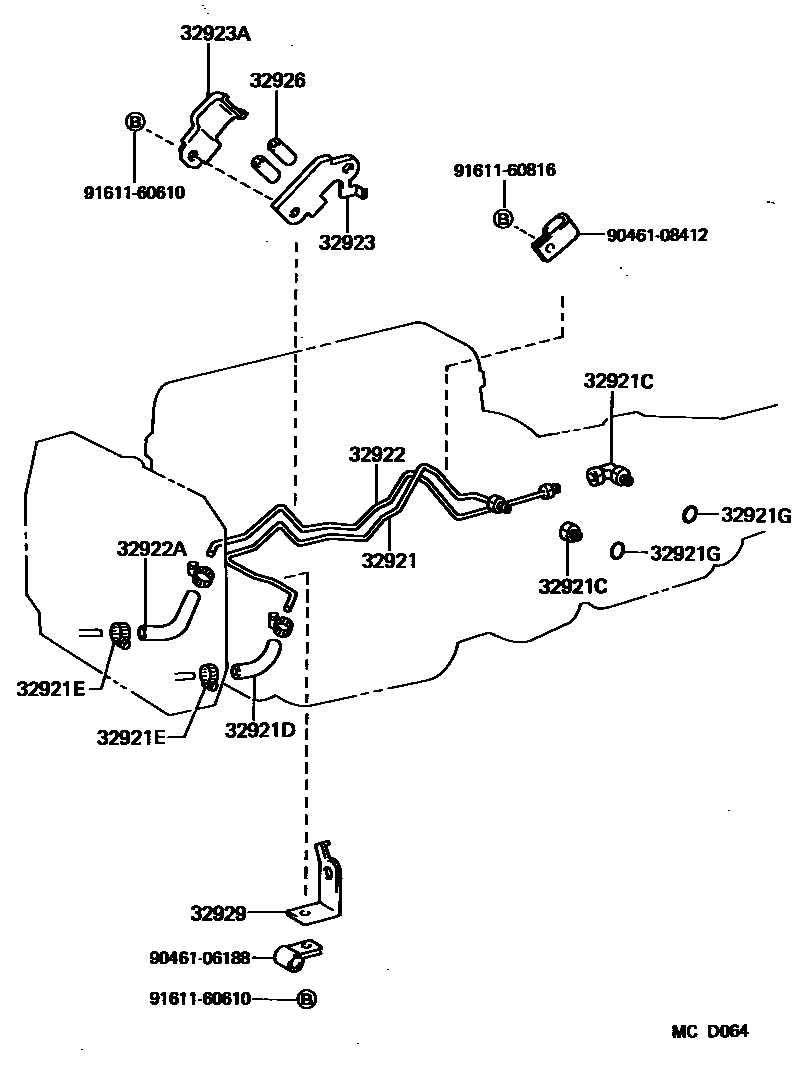

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-14220iMA70..4FC198601-198808

32921CUNION(FOR OIL COOLER TUBE)

main90404-16020iMA70..4FC198601-198808

INLET

main90407-16009iMA70..4FC198601-198808

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-16017iMA70..4FC198601-198701

main90445-17066iMA70..4FC198701-198808

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-18002×4iMA70..4FC198601-198701

main90467-16013×4iMA70..4FC198701-198808

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iMA70..4FC198601-198808

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-14220iMA70..4FC198601-198808

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-16022iMA70..4FC198601-198701

main90445-17065iMA70..4FC198701-198808

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-14030iMA70..4FC198601-198808

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32929-14040iMA70..4FC198601-198808

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×2iMA70..4FC198601-198808

L=35,ID=10

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-24050iMA70..4FC198601-198808

9046106188

main90461-06188

9046108412

main90461-08412

9161160610

main91611-60610

9161160816

main91611-60816

15 parts on this diagram · 1 diagram in section
