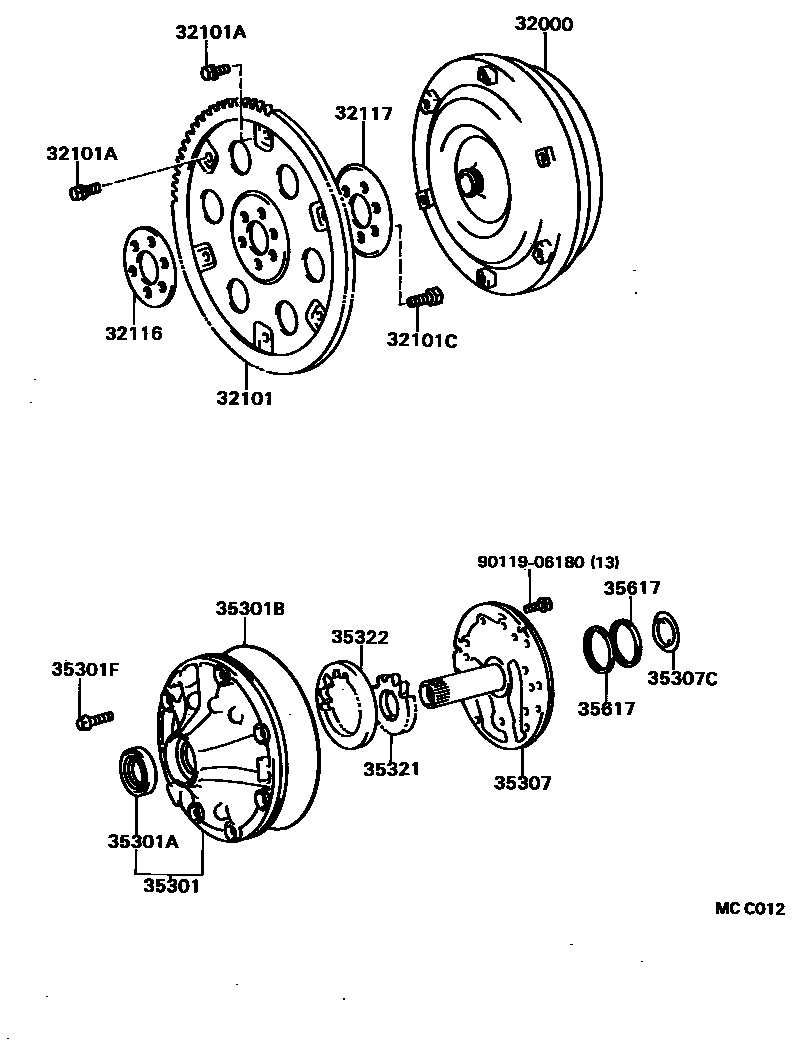

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-14110iMA70..4FC..TWC198601-198808

main32000-14120iMA70..4FC..TWT198608-198808

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-14051iMA70..4FC198601-198808

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90119-09009×5iMA70..4FC198601-198808

*9-1.25PX12.8-8.8

main90119-09010iMA70..4FC198601-198808

*9-1.25PX12.8-9

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90109-10037×6iMA70..4FC198601-198808

*10-1.25PX18-12

32116SPACER, DRIVE PLATE, FRONT

main32116-30011iMA70..4FC198601-198808

32117SPACER, DRIVE PLATE, REAR

main32117-30011iMA70..4FC198601-198808

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-30040iMA70..4FC198601-198808

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38029iMA70..4FC198601-198808

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99033iMA70..4FC198601-198808

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iMA70..4FC198601-198808

*8-1.25PX35-35

35307SHAFT SUB-ASSY, STATOR

main35370-30031iMA70..4FC198601-198808

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-30020iMA70..4FC198601-198808

T=3.7

35321GEAR, FRONT OIL PUMP DRIVE

main35321-32020iMA70..4FC198601-198610

T=9.465-9.440

main35321-32050iMA70..4FC198610-198808

T=9.456-9.474

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-32020iMA70..4FC198601-198610

T=9.465-9.440

main35322-32050iMA70..4FC198610-198808

T=9.456-9.474

35617RING, CLUTCH DRUM OIL SEAL

main35617-30020×2iMA70..4FC198601-198808

9011906180

main90119-06180

16 parts on this diagram · 1 diagram in section
