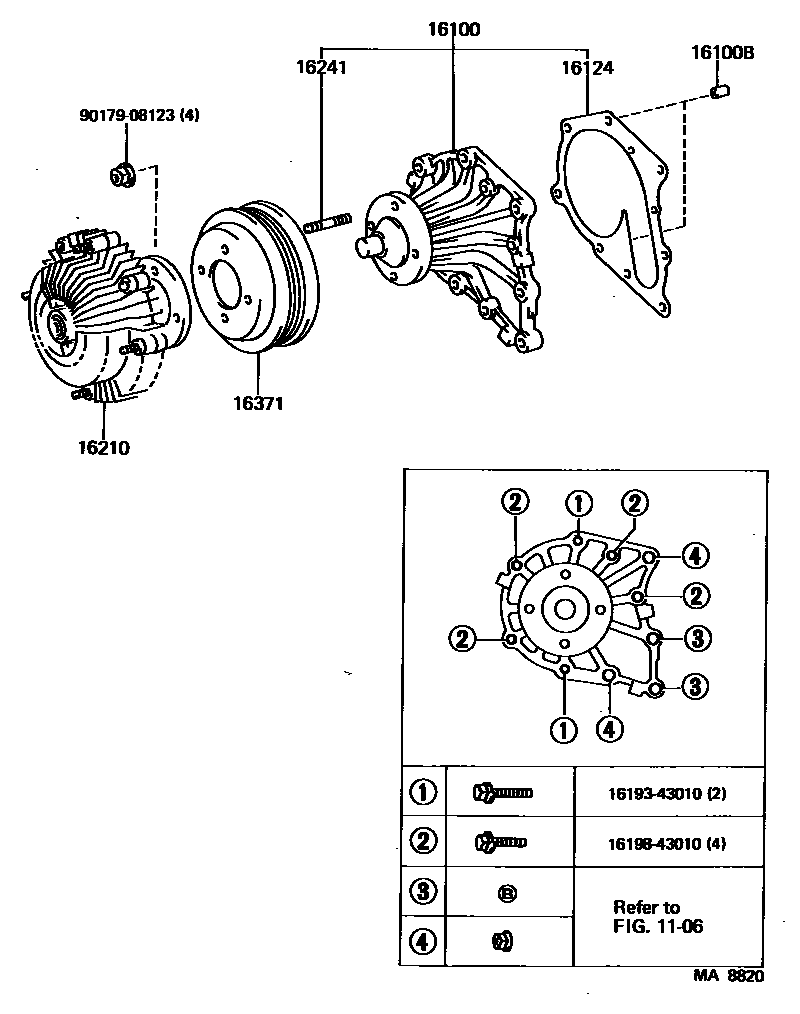

WATER PUMP

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16100PUMP ASSY, ENGINE WATER

main16100-49755i7MG#..MA70198601-198808

16100BPIN, RING(FOR WATER PUMP SET)

main16185-70010×2i7MG#..MA70198601-198808

16124GASKET, WATER PUMP COVER

main16124-42010i7MG#..MA70198601-198808

16210COUPLING ASSY, FLUID

main16210-42030i7MGTE..MA70198608-198703

main16210-42040i7MGE..MA70198601-198808

main16210-42050i7MGTE..MA70198703-198808

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16198-43040i7MG#..MA70198601-198808

16371PULLEY, FAN

main16173-42020i7MG#..MA70198601-198703

main16173-42050i7MGTE..MA70198703-198808

1619343010BOLT, STUD(FOR WATER PUMP COVER)

main16193-43010

1619843010BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-43010

9017908123

main90179-08123

10 parts on this diagram · 1 diagram in section
