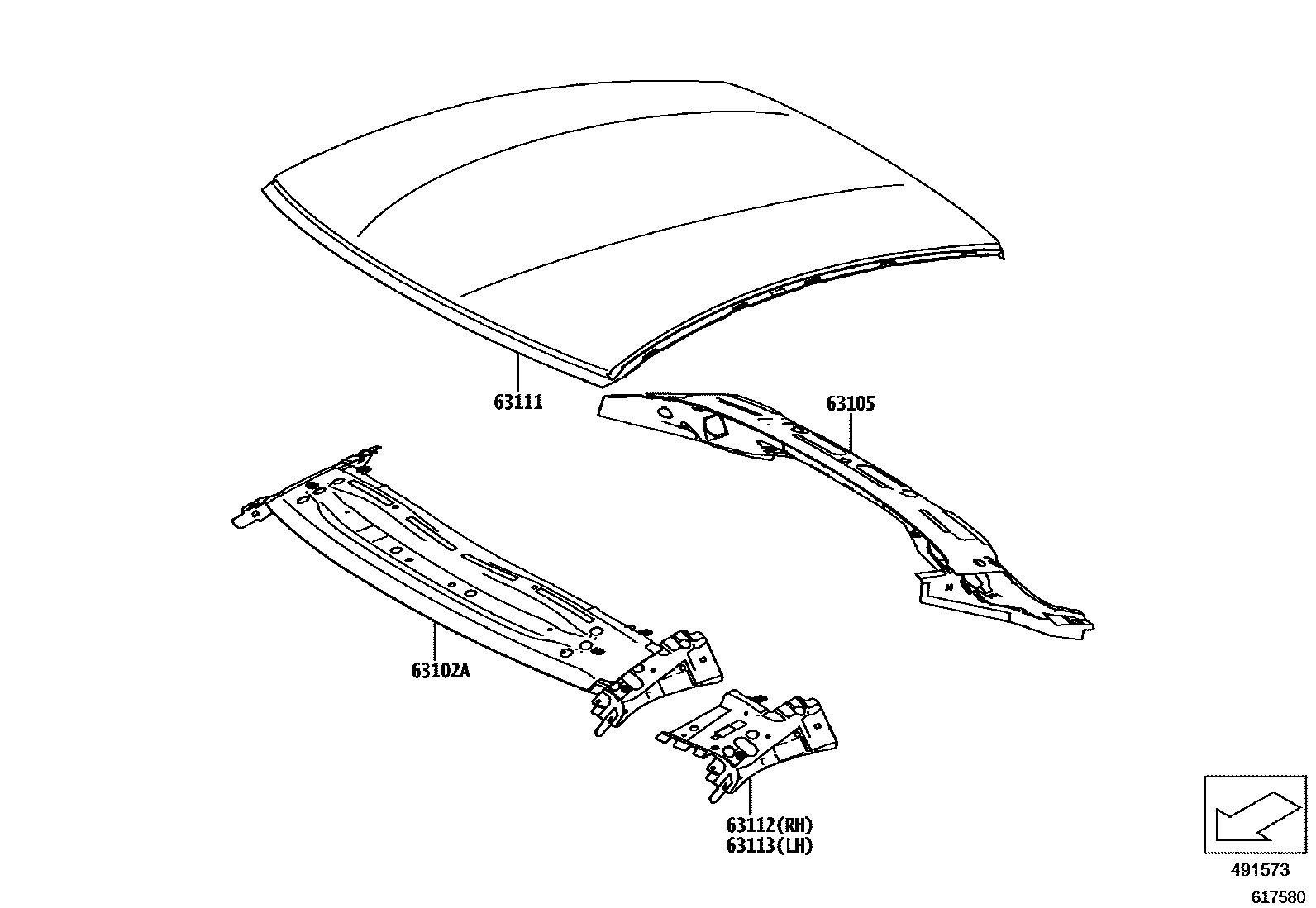

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-WAA01iDB0#,2#,4#,85202207

63105REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63105-WAA01iDB0#,2#,4#,85202207

63111PANEL, ROOF

main63111-WAA01iDB0#,2#,4#,85202207

63112GUSSET, ROOF PANEL SIDE, RH

main61173-WAA01iDB0#,2#,4#,85202207

63113GUSSET, ROOF PANEL SIDE, LH

main61174-WAA01iDB0#,2#,4#,85202207

5 parts on this diagram · 3 diagrams in section
