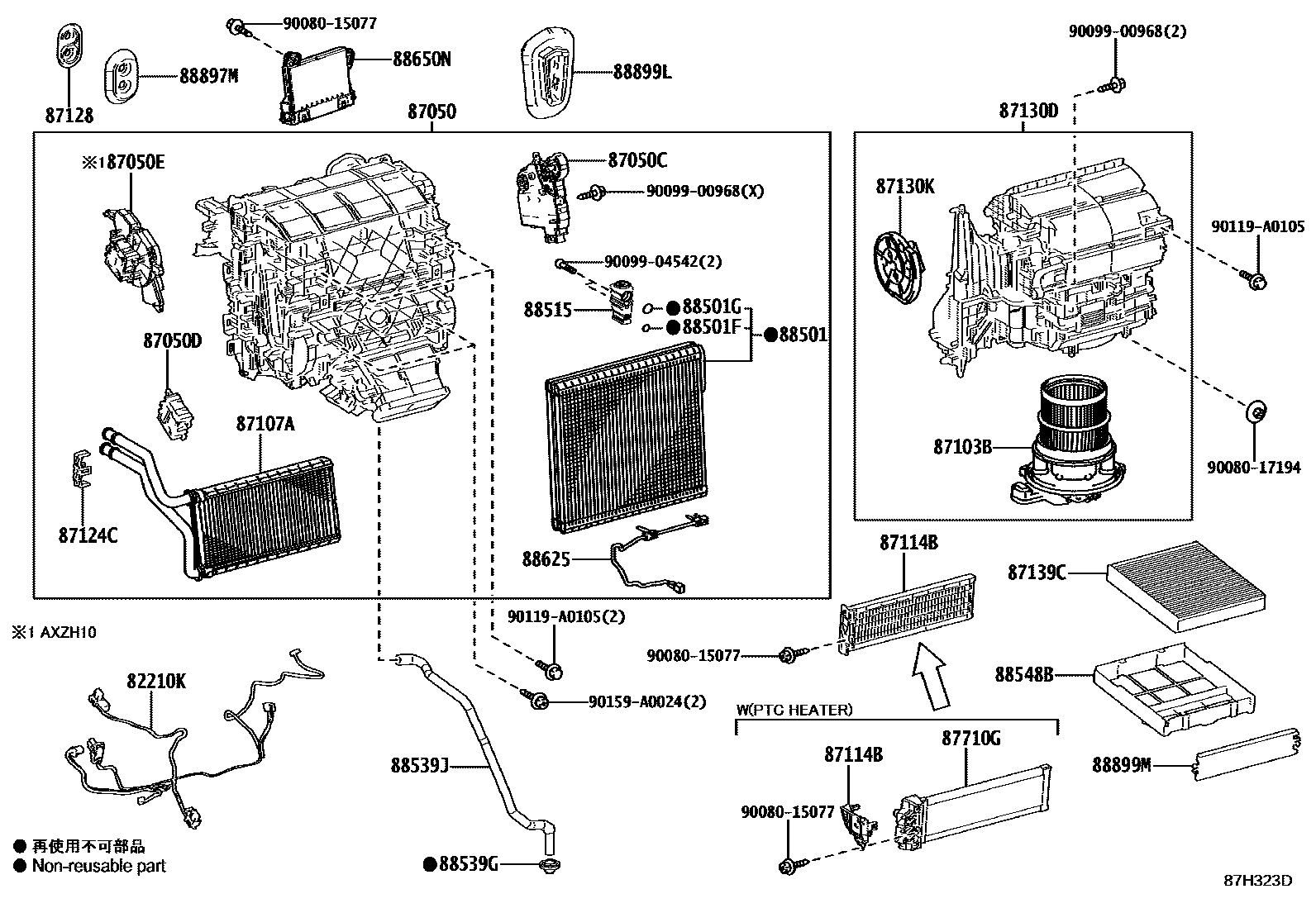

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87050EDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114BCOVER, HEATER
STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER); STEERING WHEEL-3-SPOKE, LEATHER, WITH(HEATER); STEERING WHEEL-3-SPOKE, WITH(HEATER), FOR F SPORT
87124CCLAMP, HEATER
87128GROMMET, HEATER
87130DBLOWER ASSY
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
87139CFILTER, CLEAN AIR
DEODORANT FILTER,OE PART
87710GQUICK HEATER ASSY
STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER); STEERING WHEEL-3-SPOKE, WITH(HEATER), FOR F SPORT
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
ID=10.8,OD=15.6
ID=10.8,OD=15.6
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
ID=13.4,OD=18.2
ID=13.4,OD=18.2
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88539JHOSE, DRAIN COOLER
88548BCASE, AIR FILTER
88650NAMPLIFIER ASSY, AIR CONDITIONER
LUXURY PACKAGE; PREMIUM PACKAGE; SEAT HEATER-WITH; ULTRA LUXURY PACKAGE
SEAT HEATER-WITH
SEAT HEATER-WITH
F SPORT; LUXURY PACKAGE; PREMIUM PACKAGE; ULTRA LUXURY PACKAGE
F SPORT; LUXURY PACKAGE; PREMIUM PACKAGE; ULTRA LUXURY PACKAGE
F SPORT; LUXURY PACKAGE; PREMIUM PACKAGE; ULTRA LUXURY PACKAGE
88897MGROMMET (FOR HEATER PIPE)
88899MPLATE, COVER(FOR AIR FILTER)
9008015077
main90080-15077
9008017194
main90080-17194
9009900968
main90099-00968
9009904542
main90099-04542
90119A0105
main90119-A0105
90159A0024
main90159-A0024
32 parts on this diagram · 1 diagram in section
