83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iGSZ10201808-202109

(L)

main83530-28020iGSZ10201808-202109

(J)

84540SWITCH ASSY, NEUTRAL START

main84540-06020iGSZ10201808-202111

sub84540-06021

sub35572-48051

main84540-06020iAXZA15202009-202109

(L)

sub84540-06021

sub35572-48051

main84540-06021iGSZ10202111-202210

main84540-33020iAXZA15202009-202109

(J)

sub84540-33021

sub35572-48051

main84540-33021iGSZ10202210

89465SENSOR, OXYGEN

main89465-06370iGSZ10201808-202109

89465ASENSOR, OXYGEN NO.2

main89465-06380iGSZ10201808-202109

89467BSENSOR, AIR FUEL RATIO

main89467-06230iGSZ10201808-202109

main89467-06250iAXZA15,AXZH1#201905-202109

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-06210iAXZA15202009-202109

main89467-06280iAXZH1#202009-202109

main89467-0E250iGSZ10201808-202109

main89467-33210iAXZH10201905-202009

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iAXZA15,AXZH1#201905-202204

sub89491-33052

main89491-33052iAXZA15,AXZH1#202205

main89491-48020iGSZ10201808-201809

sub89491-48021

main89491-48021iGSZ10201809-202004

*252

sub89491-48040

main89491-48021iGSZ10201809-202001

*402

sub89491-48040

main89491-48040iGSZ10202002-202109

*402

sub89491-48041

main89491-48040iGSZ10202005-202109

*252

sub89491-48041

main89491-48040iGSZ10202109-202204

*252,*402

sub89491-48041

main89491-48041iGSZ10202205

*252,*402

89615SENSOR, KNOCK CONTROL

main89615-06010iAXZA15,AXZH1#202109

MARK 89615-06010

main89615-06010iGSZ10201808-202109

(L)

main89615-20090iGSZ10201808-202109

(J)

main89615-F6010iAXZA15,AXZH1#202209

MARK 89615-F6010

8271533J90BRACKET,WIRING HARNESS CLAMP

main82715-33J90

8271533K00BRACKET,WIRING HARNESS CLAMP

main82715-33K00

8271533T50BRACKET,WIRING HARNESS CLAMP

main82715-33T50

90105A0128

main90105-A0128

90119A0127

main90119-A0127

90119A0182

main90119-A0182

90178A0023

main90178-A0023

9046815007

main90468-15007

9155180830

main91551-80830

9165340625

main91653-40625

9415180600

main94151-80600

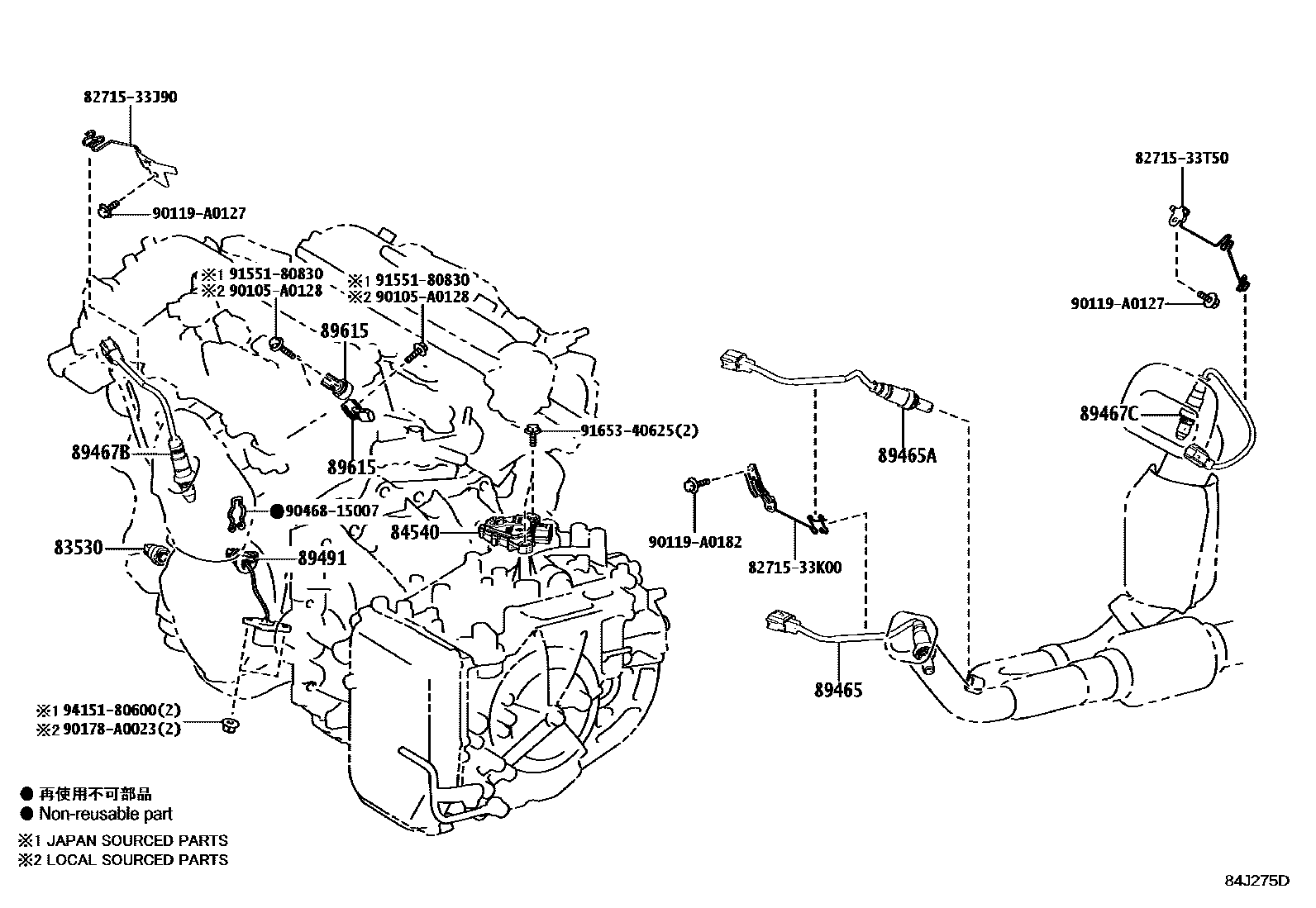

19 parts on this diagram · 13 diagrams in section
